Information on preventing damage to electronic components due to electrostatic discharge |
|
AH54.00-P-0001-01A |
| |
Notes on carrying out repair work in the vehicle interior |
|
AH68.00-N-0001-01S |
 |
Remove |
|
|
| 1 |
Switch off ignition and store transmitter key outside of transmission range (min. 2 m). |
|
|
2.1
|
Remove driver seat. |
Model 907 except code SR8 (Driver's seat bogie) |
AR91.10-D-1000TS |
2.2
|
Remove turn plate with installed driver's seat. |
Model 907 with code SR8 (Driver seat bogey)
Do not separate driver's seat from turn plate. |
AR91.10-D-1456TS |
| 3 |
Remove front seat base cover. |
|
|
4
|
Remove parking system control unit. |
Model 907.6/7 with code JB6 (Parking Package with 360° camera) or code JB7 (Parking Package with reversing camera)
Position parking system control unit with connected electric lines outside the working area. |
AR54.65-D-0018TS |
 |
Install |
|
|
| 5 |

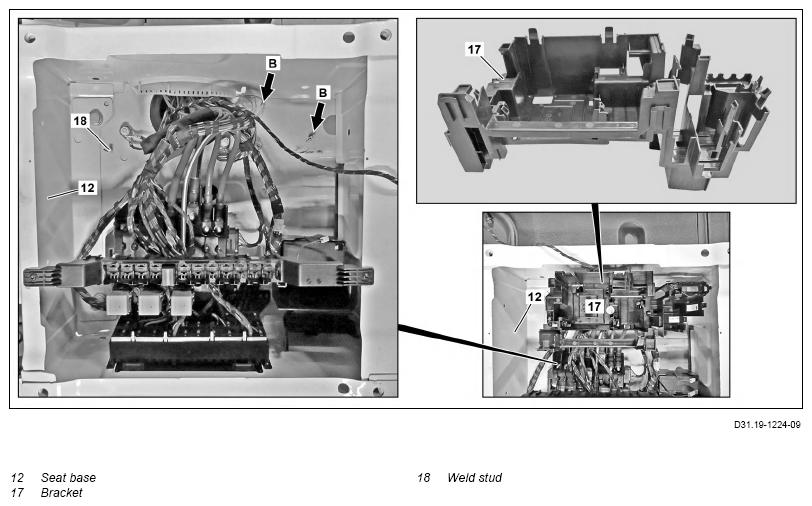

Install holder (17). |
If the holder (17) is not installed.
To do so, position holder (17), as shown, in seat base (12) on weld stud (arrows B) and weld stud (18), and install nut at weld stud (18).
M6 |
*BA00.10-N-1002-01A |
| 6 |

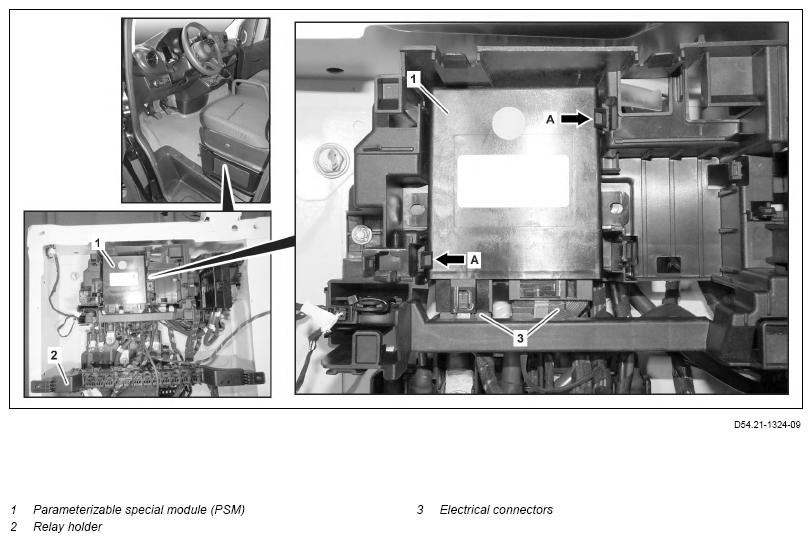

Retrofit PSM (1). |
To do so, slide PSM (1) far enough into holder (17) until the retaining tabs (arrows A) engage. |
|
| 7 |
Connect electrical connectors (3) with PSM (1). |
|
|
| 8 |
Install in the reverse sequence. |
Operation steps 4 to 2. |
|
| 9 |
Enter special equipment into on-line vehicle data card. |
Designation of corresponding special equipment: Code ED5 (Parameterizable special module).
Remove existing code ED8 (Pre-installation for electrics, parameterizable special module).
Attach note "Parameterizable special module retrofitted as per AN54.21-D-0002TS " under field organization texts to KG54. |
|
10
|
Perform SCN coding on Common Powertrain Controller (CPC) control unit. |
Under the "Control unit adaptations" menu item follow the instructions for "SCN coding".
Do not yet remove vehicle diagnosis system. |
AR54.21-D-0015TS |
11
|
Perform SCN coding on signal acquisition and actuation module (SAM) control unit. |
Under the "Control unit adaptations" menu item follow the instructions for "SCN coding".
Do not yet remove vehicle diagnosis system. |
AR54.21-D-0015TS |
12
|
Carry out SCN coding on electronic ignition lock control unit (EZS). |
Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". |
AR54.21-D-0015TS |
