Remove/Install Parking System Control Unit - Ar54.65-D-0018TS

Model 907

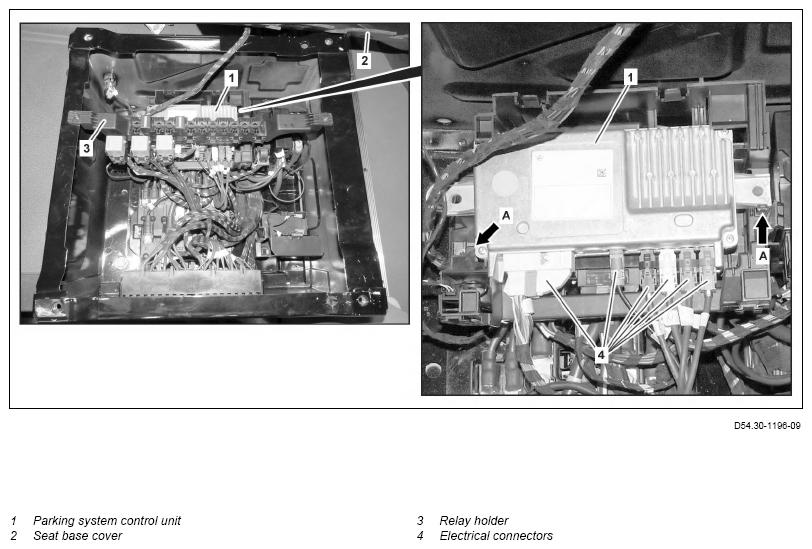

Shown on model 907.7 and removed driver's seat

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Perform commissioning of parking system control unit (1) with vehicle diagnosis system.	When replacing the parking system control unit (1).	AD00.00-D-2000-06TS
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3.1	Remove driver seat.	Model 907 with code SB3 (Suspension seat, comfort version, driver's seat)
3.2	Remove turn plate with mounted driver's seat.	Model 907 with code SR8 (Swivel base for driver' seat) Do not disconnect driver's seat from turn plate.	AR91.10-D-1456TS
3.3	Set driver's seat to the foremost and uppermost position.	Model 907 except code SB3 (Suspension seat, comfort version, driver's seat) except code SR8 (Swivel base for driver' seat)
4	Release seat base cover (2) and remove from working area.
5	Remove relay holder (3) from seat base and bring out of working area with connected electric lines.
6	Disconnect electrical connections (4).	The number of electrical connections (4) may vary depending on the vehicle equipment involved.
7	Unclip parking system control unit (1) at catch hooks (arrows A) and remove upwards.
8	Install in the reverse order.
	Check
9	Perform function test of parking system.
