Remove/Install Front Seat Backrest Upholstery - AR91.10-P-1095LF
Model 217
Model 222

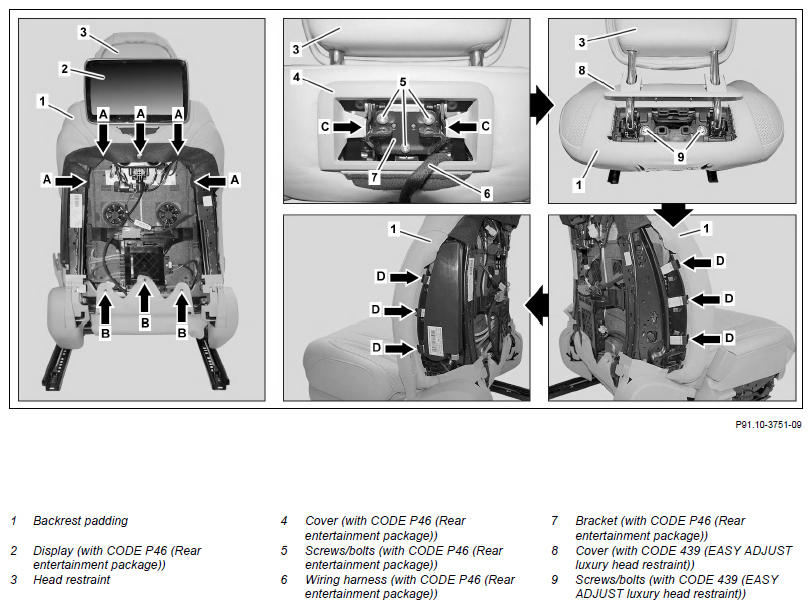

Shown on Model 222

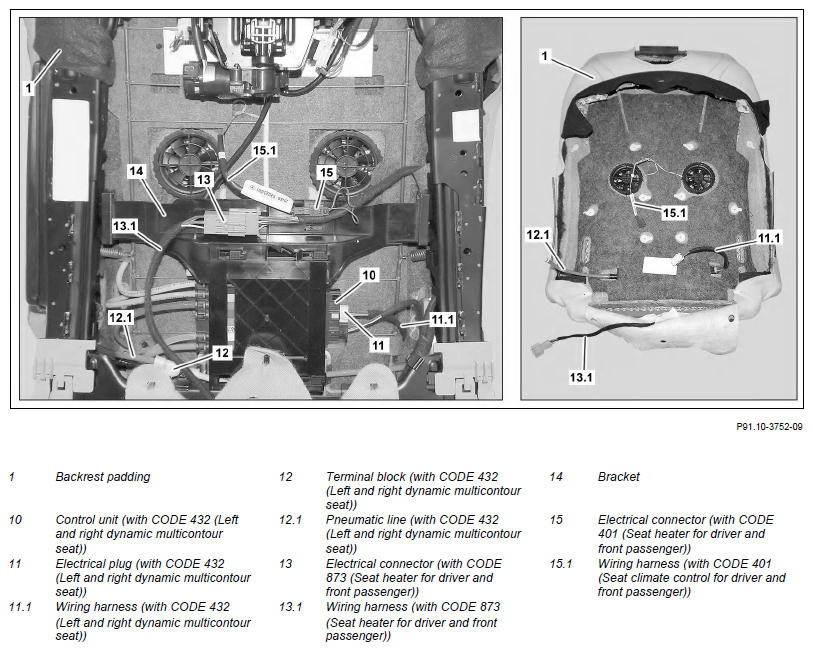

Shown on Model 222
| Remove/install | |||
| 1 | Remove seat-back lining at left or right backrest | AR91.10-P-1910LF | |
| 2 | Remove head restraint (3) | Model 217 Model 222 except code 439 (EASY ADJUST luxury head restraint) |
AR91.16-P-0040LF |
| Model 222 with code 439 (EASY ADJUST luxury head restraint) |
AR91.16-P-0040LFA | ||
| 3 | Remove front seat | AR91.10-P-1000LF | |
| 4 | Remove display (2) in rear | Model 222 with code P46 (Rear-Seat Entertainment Package) |
AR82.60-P-7720LF |
| 5 | Unclip cover (4) | Model 222 with code P46 (Rear-Seat Entertainment Package) |
|
| 6 | Remove bolts (5) | Model 222 with code P46 (Rear-Seat Entertainment Package) |
|
| 7 | Remove bracket (7) | Model 222 with code P46 (Rear-Seat Entertainment Package) |
|
| 8 | Remove screw/bolts (9) | Model 222 with code 439 (EASY ADJUST luxury head restraint) |
|
| 9.1 | Remove head restraint guide | Model 222 except code 439 (EASY ADJUST luxury head restraint) |
|
| AR91.16-P-0050LF | |||
| 9.2 | Remove backrest release | Model 217 | |
| AR91.10-P-1460LC | |||
| 10 | Unhook fabric tabs (arrows A) from the hooks | ||
| 11 | Unhook fabric tabs (arrows B) from the hooks | ||
| 12.1 | Unhook elastic bands (arrows D) from the backrest padding (1) | Model 217 with code 432 (Left and right dynamic multicontour seat) Model 222 with code 432 (Left and right dynamic multicontour seat) |
|
| 12.2 | Unhook backrest padding (1) from the side fastening hooks | Model 217 except code 432 (Left and right dynamic multicontour seat) Model 222 except code 432 (Left and right dynamic multicontour seat) |
|
| 13 | Disconnect electrical connector (11) at control unit (10) | Model 217 with code 432 (Left and right dynamic multicontour seat) Model 222 with code 432 (Left and right dynamic multicontour seat) |
|
| 14 | Release and detach pneumatic line (12.1) at terminal block (12) | Model 217 with code 432 (Left and right dynamic multicontour seat) Model 222 with code 432 (Left and right dynamic multicontour seat) |
|
| Fig 2 | |||
| Fig 1 | |||
| 15 | Remove electrical connector (13) from bracket (14) and disconnect | Model 217 with code 873 (Seat heating for driver and front passenger) Model 222 with code 873 (Seat heating for driver and front passenger) |
|
| 16 | Remove electrical connector (15) from bracket (14) and disconnect | Model 217 with code 401 (Climatised front seats) Model 222 with code 401 (Climatised front seats) |
|
| 17 | Unclip backrest padding (1) from spring frame | If the retaining clips are damaged in the process: ↓ Replace backrest padding (1). |
|
| 18 | Remove backrest padding (1) with cover from backrest frame | ||
| 19 | Install in the reverse order |
