Remove/Install Front Seat Head Restraint - AR91.16-P-0040LF
Model 217
Model 222
except code 439 (Intelligent/folding front comfort head restraint)

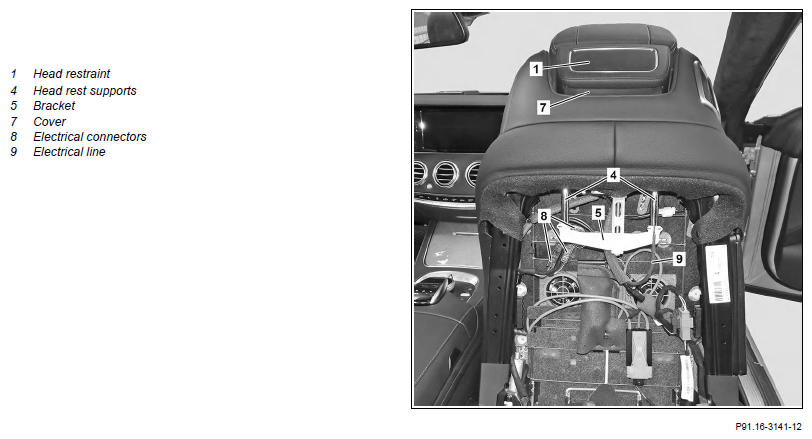

Shown on model 222
Shown on model 217.4 with code 403 (Airscarf system)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove seat-back lining (3) from left or right backrest | AR91.10-P-1910LF | |
| 2 | Adjust backrest toward rear until head restraint (1) can be removed from backrest | ||

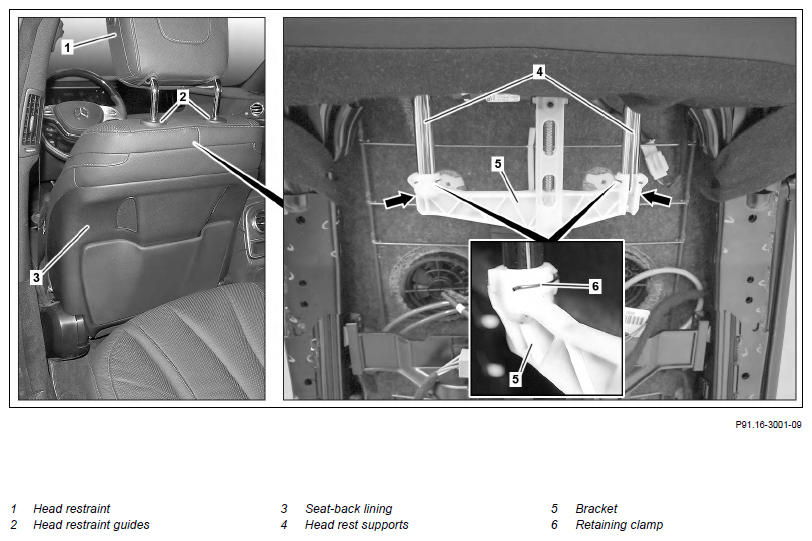

| 3 | Remove retaining clip (6) from left and right support (arrows) of bracket (5) | Note installation position of retaining clip (6). |
|
| 4 | Remove cable ties at electrical line (9) | Model 217.4 | |
| 5 | Disconnect electrical connectors (8) | Model 217.4 | |
| 6 | Unclip electrical line (9) on bracket (5) | Model 217.4 | |
| 7 | Pull head restraint (1) upwards and unclip panel (7) at head restraint (1) | Model 217.4 | |
| 8 | Pull head restraint (1) out of head restraint guides (2) and remove | ||
| 9 | Install in the reverse order |
