Remove/Install Front Suspension Strut - AR32.25-P-1017LFA

Model 217

With Code 487 (Active Body Control (ABC))

Model 222

With Code 487 (Active Body Control (ABC))

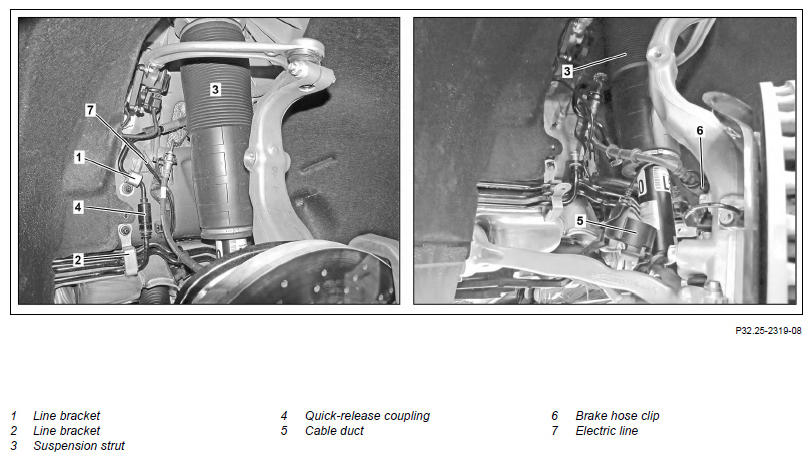

Fig 1: Front Suspension Strut Components Location - Model 222 With Code 487
G15367100Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

Shown on left side of vehicle

G15367101Courtesy of MERCEDES-BENZ USA
G15367102Courtesy of MERCEDES-BENZ USA

Shown on model 222

DANGER Risk of death  caused by vehicle slipping or toppling off during lifting Only lift vehicle at the lift support points specified by the vehicle manufacturer. AS00.00-Z-0032-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on Active Body Control suspension   AH32.50-P-0001-01N
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Release pressure in ABC system using diagnostic system   AR32.50-P-0001-01LF
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
2 Open and secure engine hood
3 Detach corresponding front complete wheel   AR40.10-P-1102A
4 Detach line bracket (1)
5 Unscrew nut and open line bracket (2) When removing the left suspension strut (3)
WARNING Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid. Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. AS00.00-Z-0013-01A
6 Disconnect hydraulic line from quick-release coupling (4) and seal lines using suitable stop
plugs
  AR32.50-P-0024SX
    SPECIAL TOOL Record plug Fig 5
    SPECIAL TOOL Detaching tool Fig 3
7 Open cable duct (5) on suspension strut (3) and place to one side
8 Detach brake hose clip (6) from steering knuckle
9 Unhook electrical line (7) from bracket on longitudinal member
10 Unscrew nut from suspension strut (3) on spring control arm (8) NOTES
Counterhold suspension strut joint (9) in spring control arm (8).
Otherwise the suspension strut joint (9) will be damaged.

    TORQUE SPECIFICATION Nut, front suspension strut to spring control arm Nut, suspension strut at front to spring control arm *BA32.25-P-1002-04O

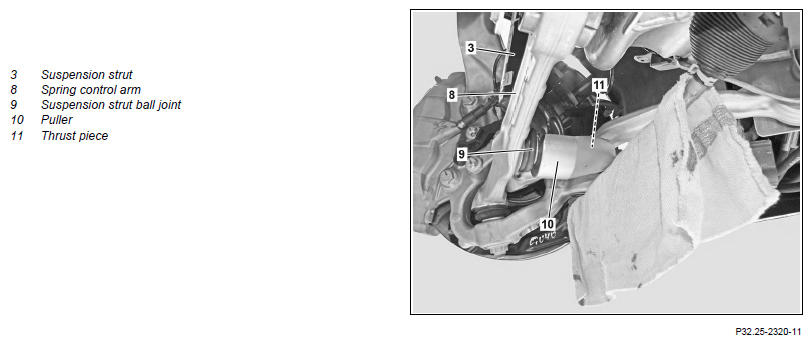

11 Detach suspension strut (3) from suspension strut joint (9) using puller (10) and thrust piece (11) NOTES
Place rag between puller (11) and tie rod. Otherwise the tie rod will be damaged.
IMPORTANT To pull off the right suspension strut (3), turn the steering to the left. To pull off the left suspension strut (3), turn the steering to the right.

    SPECIAL TOOL Puller Fig 4
    SPECIAL TOOL Thrust piece Fig 2

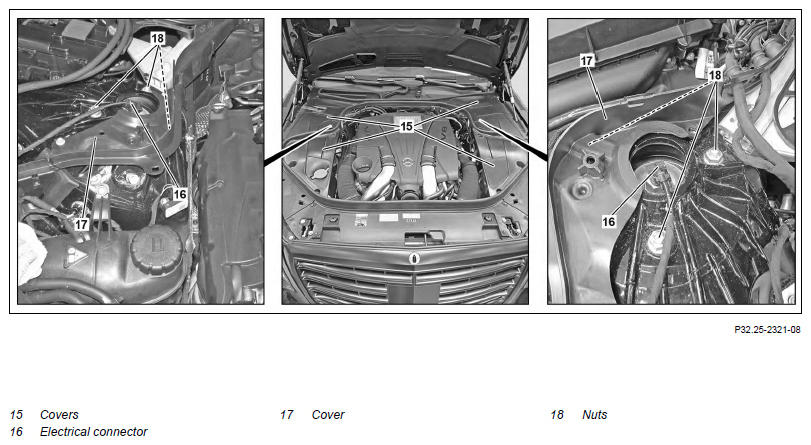

12 Remove corresponding covers (15) from suspension strut tower
13 Detach electrical connection (16) from corresponding suspension strut (3)
14 Detach corresponding cover (17) and place to one side
15 Unscrew nuts (18) from corresponding suspension strut (3) TORQUE SPECIFICATION Nut, suspension strut to body Nut, suspension strut at front to body *BA32.25-P-1001-04O
16 Support steering knuckle using telescopic lifter and transmission plate
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
17 Secure steering knuckle against folding down
18 Detach transverse control arm from steering knuckle   AR33.20-P-0500LF
19 Lower telescopic lifter far enough to enable suspension strut (3) to be removed NOTES
Do not tension brake hose.
Otherwise the brake hose may be damaged.

INSPECT Check
20 Check suspension strut (3) condition When reinstalling suspension strut (3)
If damaged or worn

Replace suspension strut (3)
IMPORTANT Dispose of the damaged suspension strut (3) correctly.

21 Check condition of suspension strut joint (9) on spring link (8) In the event of play or damage

Replace spring link (8)

      AR33.15-P-0170LF
22 Install in the reverse order
23 Fill and bleed ABC system   AR32.50-P-0021SX
24 Calibrate stroke of suspension struts (3)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
    IMPORTANT Whenever a suspension strut is replaced, calibration using the diagnostic system must be performed in the menu "Control units - Adaptation/Teach-in processes". AR40.20-P-0301LF
SUSPENSION STRUTS

Number Designation Model 217 Model 222 except code Z07 (B7 armoring on special protection version)
BA32.25-P-1001-04O Nut, suspension strut at front to body Nm 50 50
SUSPENSION STRUTS

Number Designation Model 217 Model 222 except code Z07 (B7 armoring on special protection version)
BA32.25-P-1002-04O Nut, suspension strut at front to spring control arm Stage 1 Nm 120 120
Stage 2 ∠° 45 45
Fig 2: Identifying Thrust Piece (216 589 00 34 00)
G07687736Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Detaching Tool (221 589 01 33 00)
G12078800Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Puller (601 589 04 33 00)
G13658486Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G12078802Courtesy of MERCEDES-BENZ USA
