Notes On Active Body Control Suspension - AH32.50-P-0001-01N

Model 215, 216

Model 217

With Code 487 (Active Body Control (ABC))

Model 220

With Code 487 (Active Body Control (ABC))

Model 221

With Code 487 (Active Body Control (ABC))

Model 222

With Code 487 (Active Body Control (ABC))

Model 230

With Code 487 (Active Body Control (ABC))

Model 231

With Code 487 (Active Body Control (ABC))

• Clean the area around connection fittings and hose connections properly before start of repair.
• Always close off open connection fittings and hose connections in order to prevent dirt particles entering the system.
• Ensure absolute cleanliness when pouring in the hydraulic fluid.
• When bleeding the ABC system and when running the engine, make sure that the hydraulic fluid reservoir always contains an adequate amount of hydraulic fluid. The hydraulic pump must never draw in air.
• Do not use the funnel with filter that is used for filling in hydraulic fluid for other operating fluids. Store the funnel with filter in a separate cabinet.
• Always move the steering to the straight-ahead position if the vehicle is to remain unused for a long period of time.

Courtesy of MERCEDES-BENZ USA

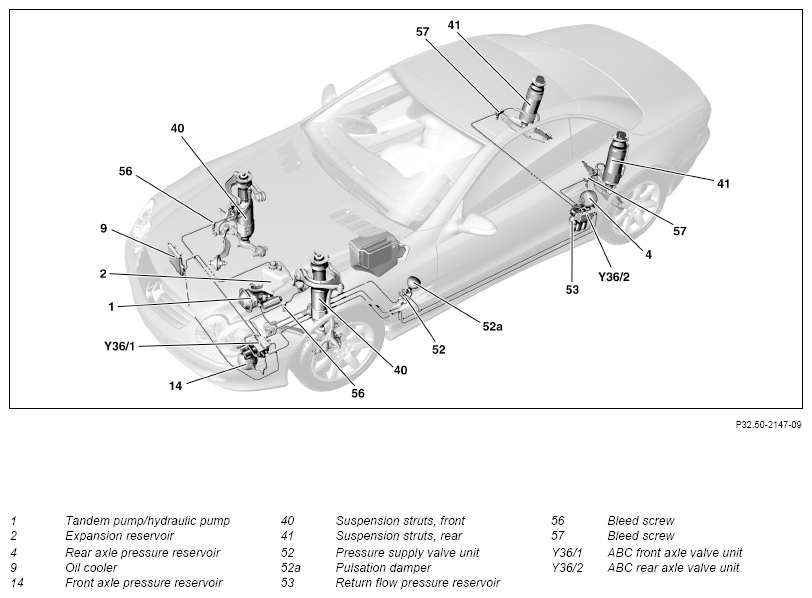

Shown on model 230

Model 215, 216, 220, 221, 230, 231.### ## up to 021273

Carefully open bleed screws (56, 57) so that the hydraulic fluid can flow out slowly.

This helps to prevent the body from lowering too quickly.

Use the bleed screw (56, 57) to drain the hydraulic fluid, then dispose of the fluid.

• The ABC fluid-return circuit contains a distribution valve with a booster valve and a temperature sensor.

Courtesy of MERCEDES-BENZ USA

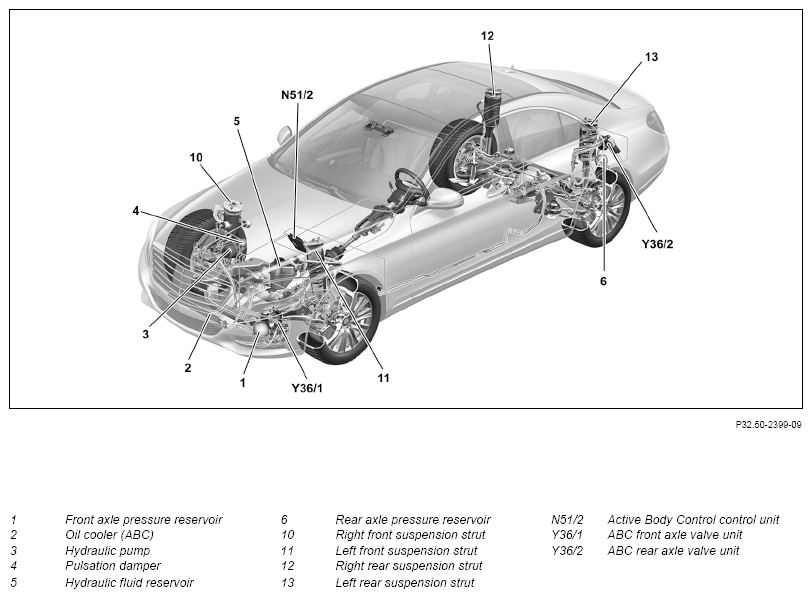

Shown on model 222

Model 217, 222, 231.### ## as of 021274
