Check Vehicle Level At Front And Rear Axle With Electronic Inclinometer, Adjust If Necessary - AR40.20-P-0301LF

Model 217, 222

MODIFICATION NOTES

16.02.2017 Vehicle level - front axle Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Highest protection), model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Highest protection) BE40.20-P-1001-02BA
16.02.2017 Vehicle level - front axle Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)), model 222.1 (except 222.177/178/179/187/188) with code 487 (Active Body Control (ABC)) BE40.20-P-1001-02BA
16.02.2017 Vehicle level - front axle Model 222.0 (except 222.077) with code M005 (4MATIC), model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) BE40.20-P-1001-02BA
16.02.2017 Vehicle level - front axle Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Highest protection) BE40.20-P-1001-02BA
16.02.2017 Vehicle level - front axle Model 222.178 with code 494 (USA version) except code 487 (Active Body Control (ABC) BE40.20-P-1001-02BA
16.02.2017 Vehicle level - front axle Model 222.077/177/178/179/187/188 with code 487 (Active Body Control (ABC)) BE40.20-P-1001-02BA
16.02.2017 Permissible difference in vehicle level between right and left side of vehicle Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except cod M005 (4MATIC) except code Z07 (Highest protection), model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Highest protection) BE40.20-P-1002-02BA
16.02.2017 Permissible difference in vehicle level between right and left side of vehicle Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)), model 222.1 (except 222.177/178/179/187/188) with code 487 (Active Body Control (ABC)) BE40.20-P-1002-02BA
16.02.2017 Permissible difference in vehicle level between right and left side of vehicle Model 222.0 (except 222.077) with code M005 (4MATIC), model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) BE40.20-P-1002-02BA
16.02.2017 Permissible difference in vehicle level between right and left side of vehicle Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Highest protection) BE40.20-P-1002-02BA
16.02.2017 Permissible difference in vehicle level between right and left side of vehicle Model 222.178 with code 494 (USA version) except code 487 (Active Body Control (ABC) BE40.20-P-1002-02BA
16.02.2017 Permissible difference in vehicle level between right and left side of vehicle Model 222.077/177/178/179/187/188 with code 487 (Active Body Control (ABC)) BE40.20-P-1002-02BA
02.03.2017 Work step inserted. Operation step 7
G15367338Courtesy of MERCEDES-BENZ USA

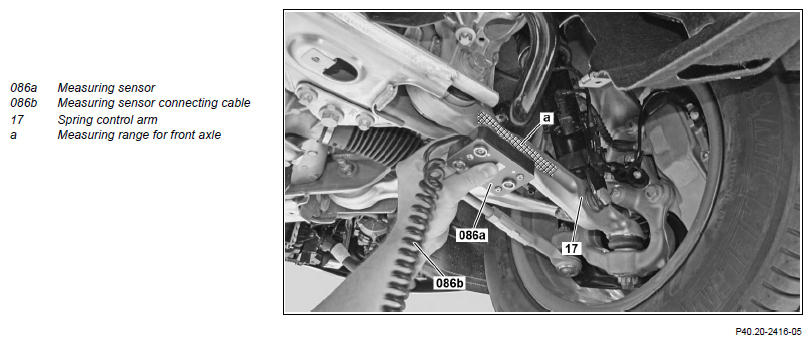

Shown on front axle on left side of vehicle On Model 222

G15367339Courtesy of MERCEDES-BENZ USA

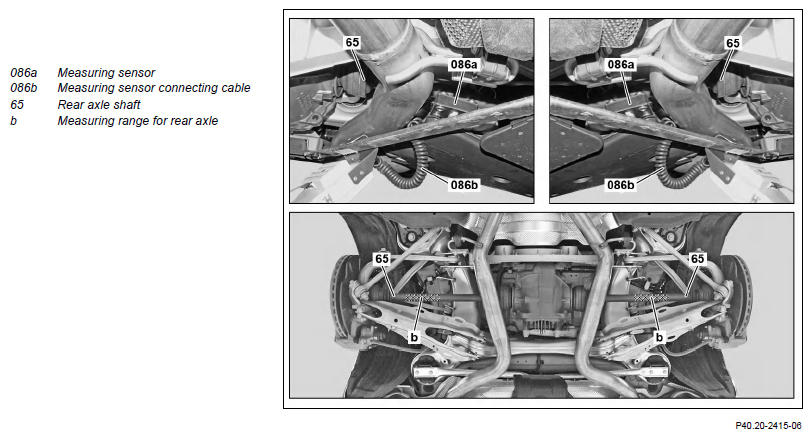

Shown on rear axle On Model 222

G15367340Courtesy of MERCEDES-BENZ USA
INSPECT Check
1 Carry out preconditions and tests for vehicle level measurement   AR40.00-P-0202A
2 Clean measurement areas (a and b) IMPORTANT This prevents any measuring errors.
3 Place measurement sensor (086a) in center of left front spring link (17) (measuring point 1), read vehicle level off inclinometer (086) and save IMPORTANT The measurement sensor (086a) must be placed in the front axle measurement area (a) as illustrated. The measurement sensor connecting cable (086b) must face towards the vehicle center.
4 Place measurement sensor (086a) in center of right front spring link (17) (measuring point 2), read vehicle level off inclinometer (086) and save IMPORTANT The measurement sensor (086a) must be placed in the front axle measurement area (a) as illustrated. The measurement sensor connecting cable (086b) must face towards the vehicle center.
5 Place measurement sensor (086a) in center of left rear axle shaft (65) (measuring point 3), read vehicle level off inclinometer (086) and save IMPORTANT The measurement sensor (086a) must be placed in the rear axle measurement area (b) as illustrated. The measurement sensor connecting cable (086b) must face towards the vehicle center.
6 Place measurement sensor (086a) in center of right rear axle shaft (65) (measuring point 4), read vehicle level off inclinometer (086) and save IMPORTANT The measurement sensor (086a) must be placed in the rear axle measurement area (b) as illustrated. The measurement sensor connecting cable (086b) must face towards the vehicle center.
7 Compare measured values with specified values Model 217 Vehicle level - front axle *BE40.20-P-1001-02FA
    Model 222 Vehicle level - front axle *BE40.20-P-1001-02BA
    Model 217 Vehicle level - rear axle *BE40.20-P-1001-03IA
    Model 222 Vehicle level - rear axle *BE40.20-P-1001-03CA
8 Check maximum permissible difference in vehicle level between left and right side of vehicle at front axle IMPORTANT The specified test tolerance applies only when checking the vehicle level but not for calibration.
    Model 217 Permissible difference in vehicle level between right and left side of vehicle *BE40.20-P-1002-02FA
    Model 222 Permissible difference in vehicle level between right and left side of vehicle *BE40.20-P-1002-02BA
9 Check maximum permissible difference in vehicle level between left and right side of vehicle at rear axle IMPORTANT The specified test tolerance applies only when checking the vehicle level but not for calibration.
Model 217 Permissible difference in vehicle level at rear axle between right and left sides of vehicle		 *BE40.20-P-1002-03IA
    Model 222 Permissible difference in vehicle level between right and left side of vehicle *BE40.20-P-1002-03CA
  Adjust
10 Calibrate vehicle level using diagnostic system When the vehicle level is outside the test tolerance.
REFER TO SELF-DIAGNOSTIC SYSTEMS   If the vehicle level is not OK after calibration.
↓
Check mounting of level sensor for any deformation.		 AD00.00-P-2000-04B
INSPECT Check
11 Check headlamp adjustment Only if the vehicle level has been calibrated.
REFER TO MAINTENANCE   Model 217 AP82.10-P-8260S
REFER TO MAINTENANCE   Model 222 AP82.10-P-8260HA
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)) Model 222.1 (except 222.177/178/179/18 7/188) with code 487 (Active Body Control (ABC))
BE40.20-P-1001-02BA Vehicle level - front axle ∠° -3, 21 (±1, 2) +0, 95 (±1, 2)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.0 (except 222.077) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Top protection)
BE40.20-P-1001-02BA Vehicle level - front axle ∠° -0, 64 (±1, 2) +2, 68 (±1, 2)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.9 with code Z19 (Pullman government sedan) Model 222.9 with code Z31 (Pullman Guard government sedan)
BE40.20-P-1001-02BA Vehicle level - front axle ∠° +2, 68 (±1, 2) +3, 91 (±1, 2)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.178 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 222.178 with code 494 (US version) except code 487 (Active Body Control (ABC))
BE40.20-P-1001-02BA Vehicle level - front axle ∠° -2, 15 (±1, 2) -0, 64 (±1, 2)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.077/177/178/17 9/187/188 with code 487 (Active Body Control (ABC))
BE40.20-P-1001-02BA Vehicle level - front axle ∠° +0, 95 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1001-02FA Vehicle level - front axle ∠° -4, 73 (±1, 2) -3, 97 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1001-02FA Vehicle level - front axle ∠° 0, 2 (±1, 2) -1, 39 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1001-02FA Vehicle level - front axle ∠° 0, 2 (±1, 2) -2, 9 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1001-02FA Vehicle level - front axle ∠° -1, 39 (±1, 2)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)) Model 222.1 (except 222.177/178/179/187/188) with code 487 (Active Body Control (ABC))
BE40.20-P-1001-03CA Vehicle level - rear axle ∠° -2, 40 (±1, 2) -2, 40 (±1, 2)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.0 (except 222.077) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Top protection)
BE40.20-P-1001-03CA Vehicle level - rear axle ∠° -2, 40 (±1, 2) -1, 10 (±1, 2)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.9 with code Z19 (Pullman government sedan) Model 222.9 with code Z31 (Pullman Guard government sedan)
BE40.20-P-1001-03CA Vehicle level - rear axle ∠° -1, 10 (±1, 2) -0, 49 (±1, 2)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.178 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 222.178 with code 494 (US version) except code 487 (Active Body Control (ABC))
BE40.20-P-1001-03CA Vehicle level - rear axle ∠° -3, 36 (±1, 2) -2, 40 (±1, 2)
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.077/177/178/179/187/188 with code 487 (Active Body Control (ABC))
BE40.20-P-1001-03CA Vehicle level - rear axle ∠° -2, 40 (±1, 2)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -3, 36 (±0, 8) -2, 88 (±0, 8)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -2, 88 (±0, 8) -2, 88 (±0, 8)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -2, 88 (±0, 8) -3, 84 (±0, 8)
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1001-03IA Vehicle level - rear axle ∠° -2, 88 (±0, 8)
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)) Model 222.1 (except 222.177/178/179/187/188) with code 487 (Active Body Control (ABC))
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.0 (except 222.077) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Top protection)
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.9 with code Z19 (Pullman government sedan) Model 222.9 with code Z31 (Pullman Guard government sedan)
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.178 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 222.178 with code 494 (US version) except code 487 (Active Body Control (ABC))
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 222.077/177/178/179/187/188 with code 487 (Active Body Control (ABC))
BE40.20-P-1002-02BA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2 1, 2
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2 1, 2
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2 1, 2
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1002-02FA Permissible difference in vehicle level between right and left side of vehicle ∠° 1, 2
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.0 (except 222.077) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.1 (except 222.177/178/179/187/188) except code 487 (Active Body Control (ABC)) except code M005 (4MATIC) except code Z07 (Top protection) Model 222.0 (except 222.077) with code 487 (Active Body Control (ABC)) Model 222.1 (except 222.177/178/179/187/188) with code 487 (Active Body Control (ABC))
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.0 (except 222.077) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code M005 (4MATIC) Model 222.1 (except 222.177/178/179/187/188) with code Z07 (Top protection)
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.9 with code Z19 (Pullman government sedan) Model 222.9 with code Z31 (Pullman Guard government sedan)
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.178 except code 487 (Active Body Control (ABC)) except code 494 (US version) Model 222.178 with code 494 (US version) except code 487 (Active Body Control (ABC))
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8 0, 8
CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number Designation Model 222.077/177/178/179/187/188 with code 487 (Active Body Control (ABC))
BE40.20-P-1002-03CA Permissible difference in vehicle level between right and left side of vehicle ∠° 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 except code 494/487 Model 217.382/482 with code 494 except code 487
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation Model 217.382/482 with code 487 Model 217.364/384/385
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.377/379/477/479 AMG model 217.378/478 except code 494
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8 0, 8
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE

Number Designation AMG model 217.378/478 with code 494
BE40.20-P-1002-03IA Permissible difference in vehicle level at rear axle between right and left sides of vehicle ∠° 0, 8
