Remove/Install Panoramic Sunroof Drive Guide Rail - AR77.21-P-0430NKA
Model 117, 156, 176
with code 413 (Panoramic sliding sunroof/glass roof)
Model 205.0/1/2/3
with code 413 (Panoramic sliding sunroof/glass roof)
Model 222
with code 398 (Panoramic roof with MAGIC SKY CONTROL)
Model 222
with code 413 (Panoramic sliding sunroof/glass roof)
Model 238
with code 413 (Panoramic sliding sunroof/glass roof)
Model 253
with code 413 (Panoramic sliding sunroof/glass roof)
MODIFICATION NOTES
| 15.08.2017 | Manually adjust mechanical sliding sunroof components Operation step 24.2 fully toward rear until limit stop via motor emergency actuation" added. |

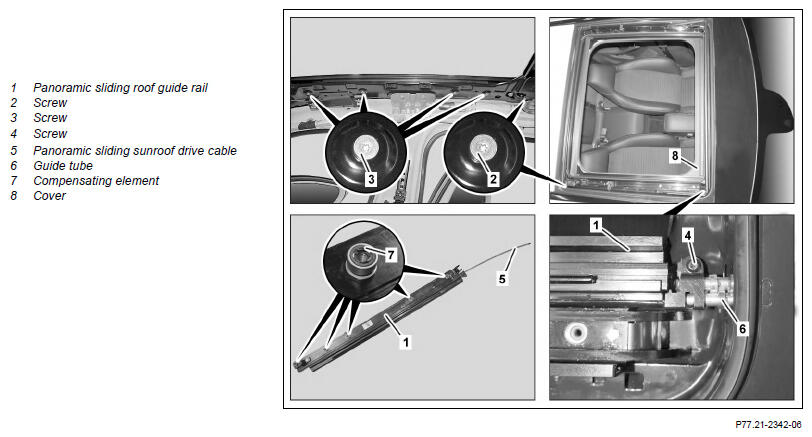

Shown on model 176, on right panoramic sliding sunroof guide rail (1)
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) | AS00.00-Z-0035-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Notes on MAGIC SKY CONTROL | Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AH77.00-P-0001-01A |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove | |||
| 1 | Completely open panorama sliding roof | ||
| 2 | Completely open rear roller sun blind | Model 156, 205.0/1/2, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
|
| 3 | Remove cover (8) | ||
| 4 | Remove wind deflector | Model 117, 156, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0100NKA |
| Model 205.0/1/2/3, 222, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-0100LF | ||
| 5.1 | Remove roof lining until screws (2, 3) on left on right panoramic sliding sunroof guide rail (1) can be accessed | Model 117, 156, 176, 205.0/1/3, 222 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
|
| Model 156 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300NKX | ||
| Model 117, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300NKA | ||
| Model 205.0/1 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LW | ||
| Model 205.3 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300CLW | ||
| Model 222.0 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.0 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LF | ||
| Model 222.1 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.1 with code 413 (Panoramic sliding sunroof/glass roof) Model 222.9 with code 398 (Panoramic roof with MAGIC SKY CONTROL) except code Z07 (B7 armoring on special protection version) Model 222.9 with code 413 (Panoramic sliding sunroof/glass roof) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4300LFN | ||
| 5.2 | Remove headliner | Model 205.2, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) |
|
| Model 205.2, 253 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LWS | ||
| Model 238.3 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LWO | ||
| 6 | Remove panoramic sliding roof control module | Model 117, 156, 176, 205.0/1/2/3, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-6995NKA |
| Model 238 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0002LWO | ||
| 7 | Remove roller sun blind motor on panoramic sliding roof | Model 117, 156, 176, 205.0/1/2/3, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-0490NKA |
| Model 238.3 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0490LWO | ||
| 8 | Remove front roller sun blind | Model 117, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0215NKA |
| Model 156, 205.0/1/2/3, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0200NKX | ||
| Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0200LF | ||
| 9 | Remove left or right panoramic roof roller sunblind drive cable | AR77.21-P-0230NKA | |
| 10 | Unscrew screw (4) on left or right panoramic sliding sunroof guide rail (1) | ||
| 11 | Remove left and right guide tube (6) from roller sun blind drive cable | Model 117, 156, 176, 205.0/1/2/3, 222, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
|
| Model 156, 205.0/1/2, 253 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0232NKX | ||
| 12 | Unscrew screws (2, 3) on left or right panoramic sliding sunroof guide rail (1) | ||
| 13 | Remove left and right panoramic sliding roof guide rail (1) from panoramic sliding roof and pull panoramic sliding roof drive cable (5) from guide tube (6) | ||
| Install | |||
| 14 | Manually turn back compensation elements (7) | Expansion elements (7) should be easy to move. Panoramic sliding sunroof guide rail (1) is otherwise damaged during fastening into place. If compensating elements (7) are sluggish. ↓ Replace compensating elements (7). |
|
| 15 | Insert panoramic sliding sunroof drive cable (5) into guide tube (6) and insert panoramic sliding sunroof guide rail (1) into panoramic sliding sunroof frame | Carefully insert panoramic sliding sunroof guide rail (1). Otherwise the guide tube (6) can be damaged |
|
| 16 | Fit bolts (3) | ||
| 17 | Screw in screws (2) on panoramic sliding sunroof guide rail (1) | ||
| 18 | Screw in screw (4) on panoramic sliding sunroof guide rail (1) | ||
| 19 | Install guide tube (6) on roller sun blind drive cable | Model 117, 156, 176, 205.0/1/2/3, 222, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
|
| Model 156, 205.0/1/2, 253 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0232NKX | ||
| 20 | Manually slide mechanical sliding sunroof components on left and right panoramic sliding sunroof guide rail (1) fully toward front up to end stop | ||
| 21 | Install panoramic sliding roof control module | Model 117, 156, 176, 205.0/1/2/3, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-6995NKA |
| Model 238 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0002LWO | ||
| 22 | Connect overhead control panel control unit to on-vehicle wiring harness | ||
| 23 | Connect ground cable to battery | Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
|
| AR54.10-P-0003LF | |||
| 24.1 | Completely adjust mechanical sliding roof components with panoramic sliding roof switch toward rear to end stop | Where panoramic sliding sunroof control module is reused | |
| 24.2 | Manually adjust mechanical sliding sunroof components fully toward rear until limit stop vi; motor emergency actuation. | When replacing panoramic sliding sunroof control module | |
| 25 | Install panoramic sliding roof drive cable | AR77.21-P-0230NKA | |
| 26 | Install roller sun blind at front | Model 117, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0215NKA |
| Model 156, 205.0/1/2/3, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0200NKX | ||
| Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0200LF | ||
| 27 | Install motor for roller sun blind on panoramic sliding roof | Model 117, 156, 176, 205.0/1/2/3, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-0490NKA |
| Model 238.3 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0490LWO | ||
| 28 | Install wind deflector | Model 117, 156, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0100NKA |
| Model 205.0/1/2/3, 222, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-0100LF | ||
| 29 | Install covering (8) | ||
| 30 | Install movable glass section | Model 117, 156, 176, 205.0/1/2/3, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-0500NKA |
| Model 238 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-0503LWO | ||
| 31 | Fully close movable glass section | ||
| 32.1 | Push movable glass section at transition to rear roof trim downward and tighten screws (3) | Model 117, 156, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
|
| 32.2 | Push movable glass section at transition to rear fixed glass section downward and tighten screws (3) | Model 205.0/1/2/3, 222, 238, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
|
After tightening, the rear edge of the closed movable glass section must be flush or max. 2 mm higher than the rear fixed glass section. |
|||
| 33 | Adjust panoramic sliding roof | Model 117, 156, 176, 205.0/1/2/3, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AR77.21-P-0501NKA |
| Model 238 with code 413 (Panoramic sliding sunroof/glass roof) |
AR77.21-P-6924LWO | ||
| 34 | Disconnect battery ground line | Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
|
| AR54.10-P-0003LF | |||
| 35 | Disconnect overhead control panel control unit from vehicle wiring harness | ||
| 36 | Install headliner | Model 156 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300NKX |
| Model 117, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300NKA | ||
| Model 205.0/1 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LW | ||
| Model 205.3 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300CLW | ||
| Model 205.2, 253 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LWS | ||
| Model 222.0 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.0 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LF | ||
| Model 222.1 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.1 with code 413 (Panoramic sliding sunroof/glass roof) Model 222.9 with code 398 (Panoramic roof with MAGIC SKY CONTROL) except code Z07 (B7 armoring on special protection version) Model 222.9 with code 413 (Panoramic sliding sunroof/glass roof) except code Z07 (B7 armoring on special protection version) |
AR68.30-P-4300LFN | ||
| Model 238.3 with code 413 (Panoramic sliding sunroof/glass roof) |
AR68.30-P-4300LWO | ||
| 37 | Normalize panoramic sliding sunroof with vehicle diagnosis system and perform teach in run for automatic reversing function | ||
| Model 117, 156, 176 with code 413 (Panoramic sliding sunroof/glass roof) |
AD00.00-P-2000-04A | ||
| Model 205.0/1/2/3, 222, 253 with code 413 (Panoramic sliding sunroof/glass roof) Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL) |
AD00.00-P-2000-04B | ||
| Model 238 with code 413 (Panoramic sliding sunroof/glass roof) |
AD00.00-P-2000-06LWO |
