Remove/Install Headliner - AR68.30-P-4300LF
Model 222.0
MODIFICATION NOTES
| 04.06.2018 | Method description adapted. | Operation steps 12, 13, and 14. |
Shown with code 413 (Panoramic sliding sunroof) up to model year 2018
Shown with code 413 (Panoramic sliding roof)
Shown with code 413 (Panoramic sliding sunroof) up to model year 2018
Shown with code 413 (Panoramic sliding sunroof) up to model year 2018__
Shown with code 811 (Advanced sound system) up to model year 2018
Shown on vehicle as of model year 2018
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove sun visors. | AR68.60-P-5480NKB | |
| 2 | Remove grab handles from roof. | AR68.30-P-4330NKB | |
| 3 | Remove trims from C-pillars. | AR68.30-P-4490LF | |

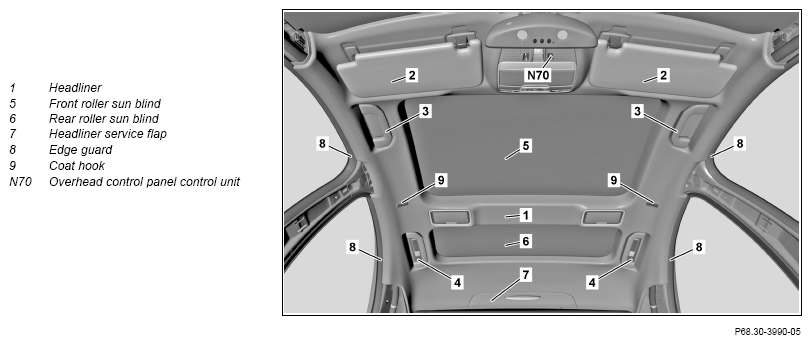

| 4 | Remove roof lining service flap (7). | ||
| 5 | Remove trims of the B-pillars. | AR68.30-P-4700LF | |
| 6 | Remove trims of the A-pillars. | AR68.30-P-4050LF | |
| 7 | Remove cover from inside rearview mirror. | ||
| 8 | Open front roller sunblind (5) and rear roller sunblind (6). | Model 222.0 with code 413 (Automatic panoramic sliding sunroof) |
|
| 9 | Remove overhead control panel control unit (N70). | AR82.20-P-1000LF | |
| 10 | Release edge guard (8) in the area of the roof lining (1). | ||

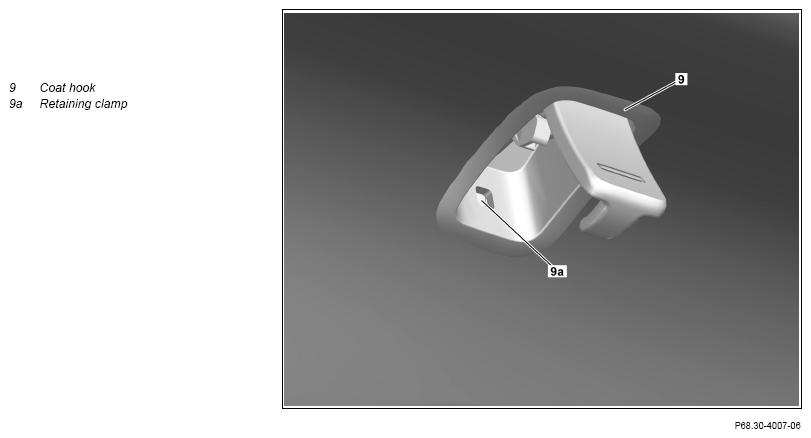

| 11 | Release retaining clamps (9a) and remove clothes hooks (9). | Model 222.0 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.0 with code 413 (Automatic panoramic sliding sunroof) |
|
| 12 | Remove driver seat. | AR91.10-P-1000LF | |
| 13 | Remove center console. | Model 222.0 up to model year 2018 | AR68.20-P-2000LF |
| Model 222.0 as of model year 2018 | AR68.20-P-2000LFM | ||
| 14 | Move front passenger seat toward the rear and move backrest downward as far as possible. | ||

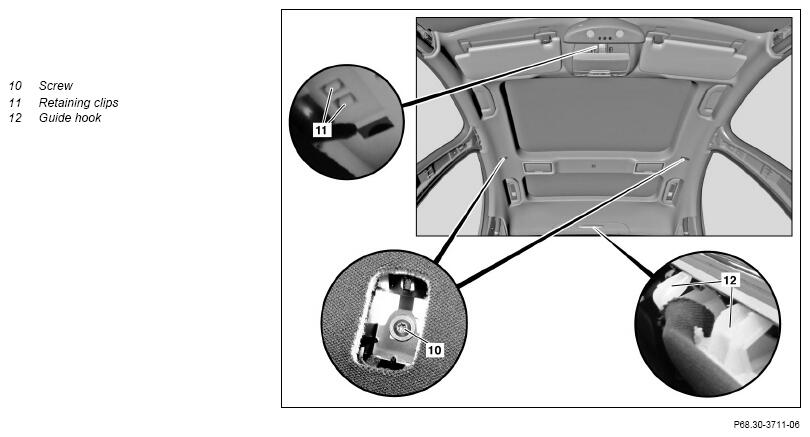

| 15 | Unscrew bolts (10). | Model 222.0 with code 398 (Panoramic roof with MAGIC SKY CONTROL) Model 222.0 with code 413 (Automatic panoramic sliding sunroof) |
|
| 16 | Remove center speaker from the roof lining (1). | Model 222.0 up to model year 2018 with code 811 (Advanced sound system) | AR82.62-P-7876LF |

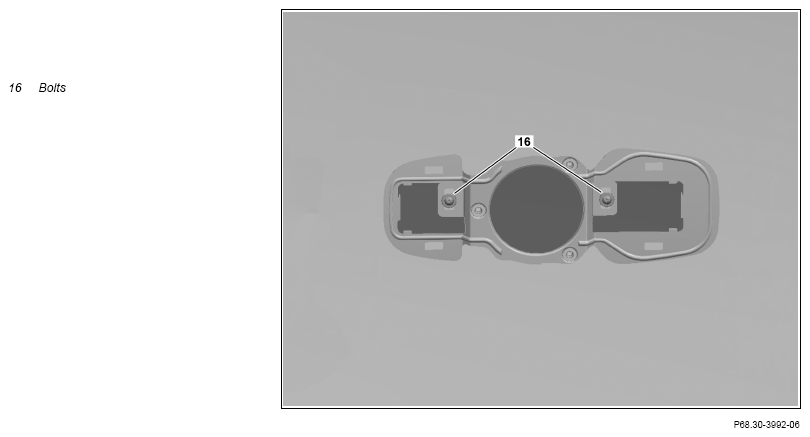

| 17 | Remove screw/bolts (16). | Model 222.0 up to model year 2018 with code 811 (Advanced sound system) | |
| 18 | Unhook roof lining (1) from frame of the panoramic sliding sunroof. | Model 222.0 with code 413 (Automatic panoramic sliding sunroof) |
|
| 19 | Unclip retaining clamps (11). | ||
| 20 | Detach roof lining (1) from roof paneling. | ||
| 21 | Push roof lining (1) toward the rear until the guide hooks (12) are guided out of the roof paneling. | ||

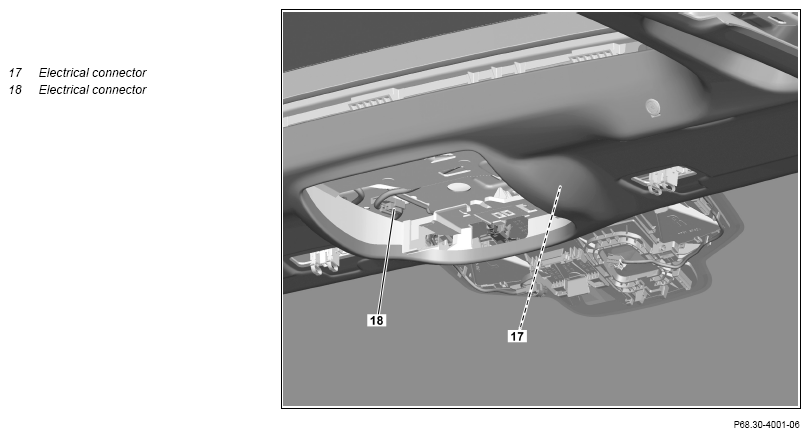

| 22 | Release and disconnect electrical connector (17). | ||
| 23 | Release and disconnect electrical connector (18). | Model 222.0 as of model year 2018 |
|

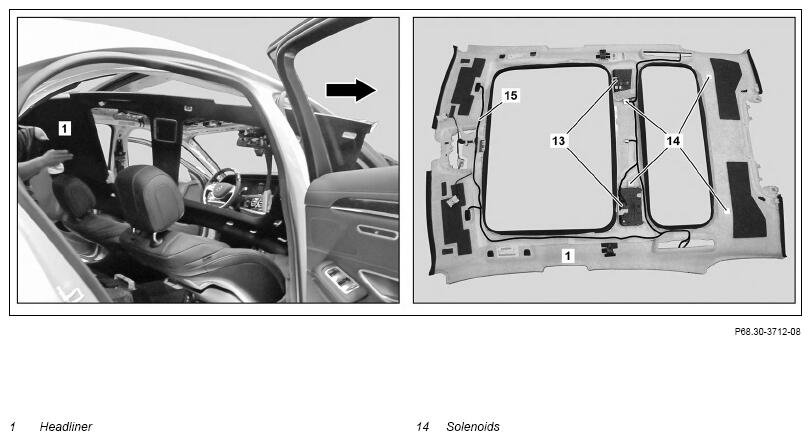

| 24 | Remove roof lining (1) toward front passenger side. | ||
| 25 | Change detachable parts of the roof lining. | When replacing roof paneling (1). | AR68.30-P-4304LFM |
| 26 | Install in the reverse order. |
