Remove/Install Front Door - AR72.10-P-0500LFS

Model 222

with code Z07 (B7 armoring on special protection version)

Shown on model 222.004 left

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove side window (2) on front door (1)	Model 222 with code Z07 (B7 armoring on special protection version) with code Z11 (Left front power window with special protection) with code Z12 (Right front power window with special protection)	AR72.10-P-1961LFS
2	Switch off ignition and remove transmitter key
3	Disconnect battery ground line		AR54.10-P-0003LF
4	Disconnect left front electrical connector (X35/1) or right front door electrical connector (X35/2)

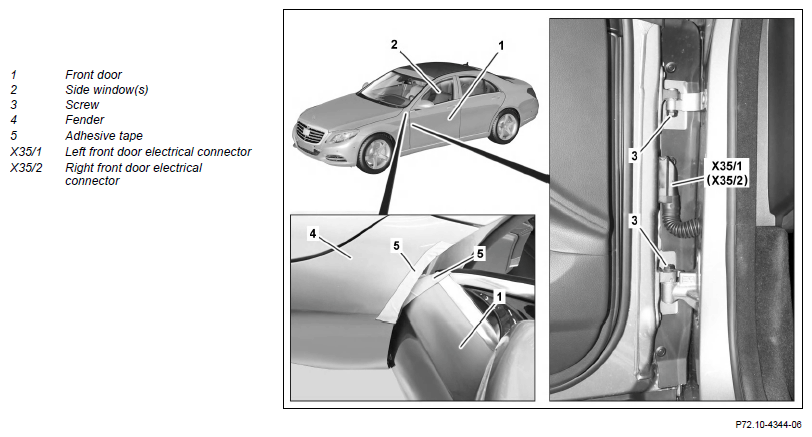

5	Press left door holder or right door holder off of ball stud on A-pillar	Mounting wedge	Fig 1
6	Mask front fender (4) and front door (1) as shown with adhesive tape (5)
7	Remove caps from bolts (3)
8	Remove bolts (3)	: Moisten thread on bolts (3) with bolt securing agent.
		Bolt to hinge shaft	*BA72.10-P-1003-01Y
		Thread locking agent, Loctite 243 (10 ml) If paint is damaged in area of bolts (3) ↓ Repair paint damage	*BR00.45-Z-1133-02A
9	Remove front door (1) from hinges and lay on a suitable base	Carefully remove front door (1). If the front door (1) comes into contact with the vehicle, the paint can be damaged. Helper required.
10	Install in the reverse order
	Check
11	Check gap dimensions on front door (1), correct if necessary		AR72.10-P-0550LFS

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
