Remove/install camber strut - AR35.20-P-0110NKB

MODEL 117, 156, 176, 242, 246

Shown on model 246

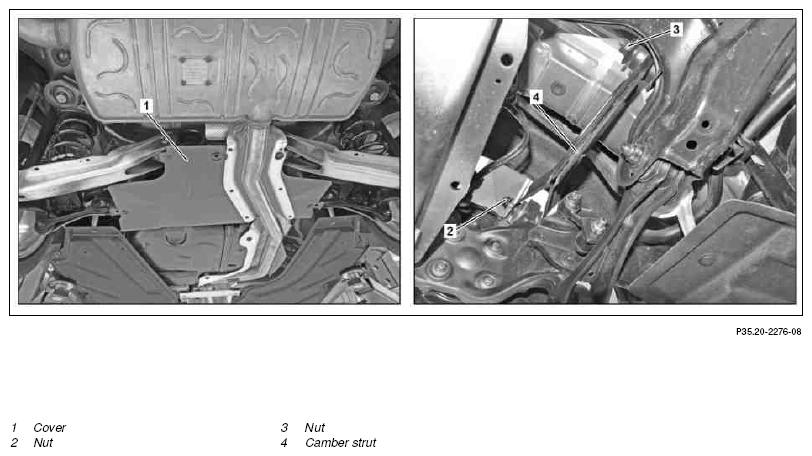

Fig 1: Camber Strut Remove/Install Component - Shown On Model 246 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

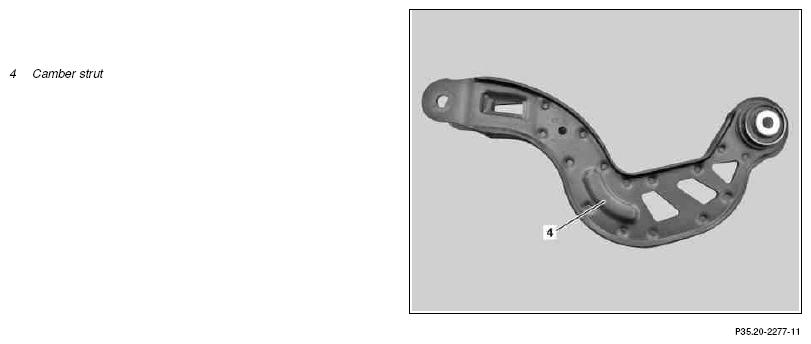

Fig 2: Camber Strut Remove/Install Component - Shown On Model 246 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove right or left rear axle spring		AR32.20-P-0230NKB
3	Detach elastomer bearing from rear muffler and fix rear muffler in place	Model 117, 156, 176, 242, 246 with engine 270	AR49.10-P-4952MT
		Model 117, 156, 176 with engine 133	AR49.10-P-7100MTA
		Model 176, 246 with engine 607	AR49.10-P-7100ORA
		Model 117, 156, 176, 246 with engine 651	AR49.10-P-7100OLB
4	Remove cover (1)
5	Support spring control arm using an assembly unit mount and mounting plate
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
6	Unscrew nut (2) and remove bolt	Self-locking nut, camber strut to wheel carrier	*BA35.20-P-1002-02I
7	Unscrew nut (3) and remove bolt	Self-locking nut, camber strut to rear axle carrier	*BA35.20-P-1001-02I
8	Remove camber strut (4)
	Check
9	Check camber strut (4) and elastomer bearing of camber strut (4) for damage	If damage is present ↓ Replace camber strut (4).
10	Install in the reverse order
