Remove/Install Piston B08 - AR27.50-P-0618EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

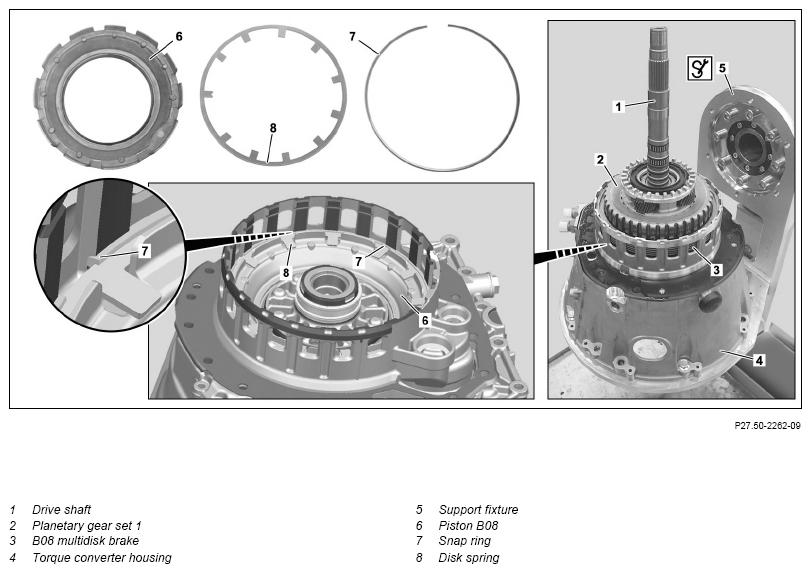

G14135152Courtesy of MERCEDES-BENZ USA

Shown on transmission 725.0

Fig 1: Piston B08 Components Location - Transmission 725.0

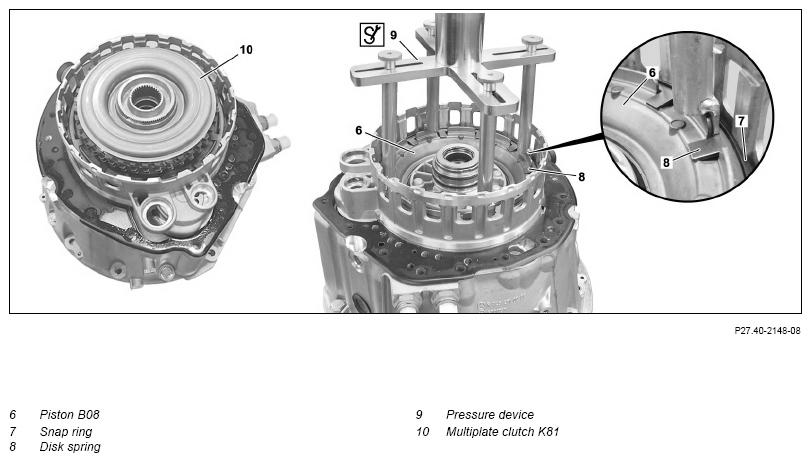

G14135153Courtesy of MERCEDES-BENZ USA

Shown on transmission 725.0

CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVINGINSTALLING Remove/install
1 Remove drive shaft (1), planetary gear set 1 (2) with multidisk brake B08 (3).   AR27.50-P-0625EWM
2 Remove multiplate clutch K81 (10).   AR27.50-P-0622EWM
3.1 Remove torque converter housing (4) from support fixture (5). Transmission 725.0 (except 725.007/017/037/047)
    SPECIAL TOOL Support fixture Fig 6
3.2 Detach adapter housing from assembly device. Transmission 725.007/017/037/047 Transmission 725.1
    SPECIAL TOOL Transmission 725.007/017/037/047 Assembly device Fig 4
    SPECIAL TOOL Transmission 725.1 Assembly device Fig 2
4 Install pressure device (9) to pistons B08 (6) and push down onto disk spring (8) until snap ring (7) is exposed. IMPORTANT Check for correct position of SPECIAL TOOL pressure device (9).
    SPECIAL TOOL Pressing tool Fig 3
    SPECIAL TOOL Set of drifts Fig 5
5 Remove snap ring (7). INSTALLATION IMPORTANT Make sure that it is installed at the correct position.
6 Remove disk spring (8). INSTALLATION IMPORTANT Make sure that it is installed at the correct position.
7 Remove piston B08 (6). INSTALLATION IMPORTANT Make sure that it is installed at the correct position.
MEASURING Measure
8 Measure clearance of piston B08 (6) and adjust, if necessary.   AR27.51-P-7230-02EWM
    Clearance in multidisk brake B08 *BE27.51-P-1003-01E
    SPECIAL TOOL Pressure cylinder Fig 7
    SPECIAL TOOL Set of drifts Fig 5
    SPECIAL TOOL Pressing tool Fig 3
    SPECIAL TOOL Parallel support Fig 8
9 Install in the reverse order.
ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE

Number Designation Transmission 725.0/1
BE27.51-P-1003-01E Clearance in multidisk brake B08 Contact force for clearance adjustment F1 N 600
Number of internal plates 3 mm 1, 6...1, 8
4 mm 1, 8...2, 0
Fig 2: Identifying Assembly Device (725 589 02 40 00)
G13657274Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Pressing Tool (722 589 01 31 00)
G11972012Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Assembly Device (724 589 04 40 00)
G12618363Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Set Of Drifts (722 589 04 15 00)
G12935726Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Support Fixture (725 589 00 40 00)
G12935452Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pressure Cylinder (725 589 03 31 00)
G11972014Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Parallel Support (168 589 03 21 00)
G12817080Courtesy of MERCEDES-BENZ USA
