Remove/Install Planetary Gear Set 1 With Multidisk Clutch K81 And Multidisk Brake B08 - AR27.50-P-0625EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0/1
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove planetary gear set 2 and multidisk clutch K38 with annulus gear | AR27.50-P-0624EWM | |
| 2 | Remove drive shaft (1) | ||
| 3 | Replace sealing rings (2, 3) | ||
| Do not overstretch the new sealing rings (2, 3) Otherwise, the sealing rings (2, 3) may be damaged. |
|||

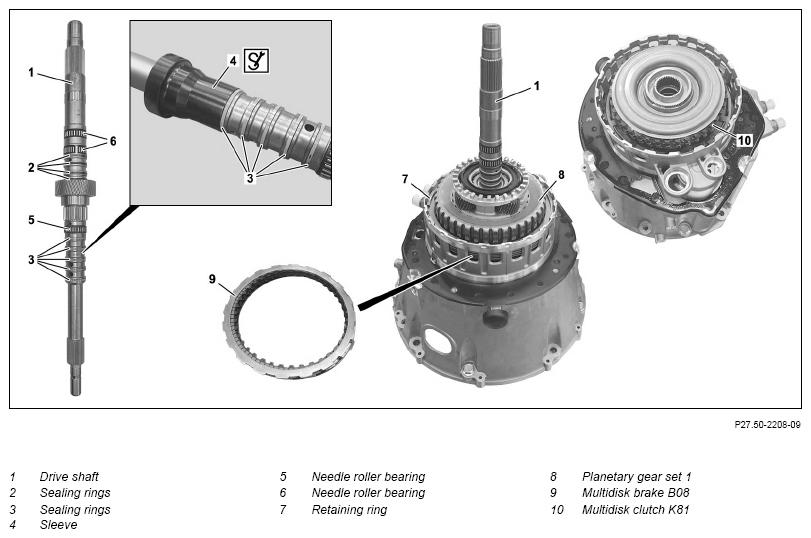

| Fig 2 | |||
| 4 | Check needle roller bearing (5, 6) for damage, replace, if necessary | ||
| 5 | Remove snap ring (7) | ||
| 6 | Remove planetary gear set 1 (8) with multidisk brake B08 (9) and check | AR27.50-P-0623-01EWM | |
| Fig 1 | |||
| 7 | Remove multidisk clutch K81 (10) and check | AR27.50-P-0622EWM | |
| 8 | Install in the reverse order | ||
| 9 | Measure axial play of drive shaft and adjust, if necessary | AR27.50-P-0550-01EWM | |
| Fig 3 | |||
| Fig 4 |
