Replace Front Crankshaft Radial Sealing Ring - AR03.20-P-3002MRI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 253
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove belt pulley (2). | AR03.30-P-1700MRI | |
| 2 | Pry out radial shaft sealing ring (3) with a suitable tool out of the timing case cover. | Do not damage crankshaft (4) and timing case cover. Use a clean rag as a base when pushing out. Leaks can occur otherwise. |
|
| 3 | Check contact surface of radial shaft sealing ring (3) at hub of belt pulley (2) for score marks and galling. | If there is a problem, ↓ Replace belt pulley (2). |
AR03.30-P-1700MRI |
| Install | |||
| 4 | Coat new radial shaft sealing ring (3) with the lubricant and install. | AR03.20-P-3002-01MRH | |
| Lubricant | *BR00.45-Z-1032-06A | ||

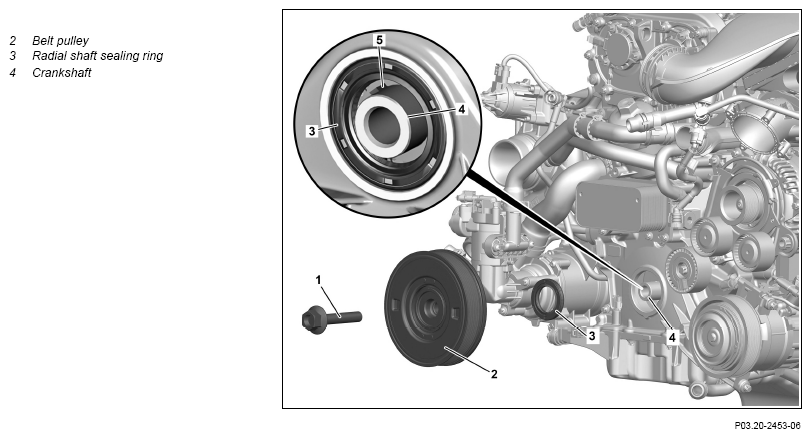

| Fig 2 | |||
| 5 | Install belt pulley (2). | AR03.30-P-1700MRI | |
| 6 | Check engine oil level and correct if necessary. | ||
| AP18.00-P-1812MKI | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run; in doing so, check the engine in the area of the belt pulley (2) for leak tightness. | ||
| 8 | Install upper engine cover. | AR01.10-P-2405MRI |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1032-06A | Lubricant | A 000 989 08 60 |
