Install Front Crankshaft Radial Seal Ring - AR03.20-P-3002-01MRH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264

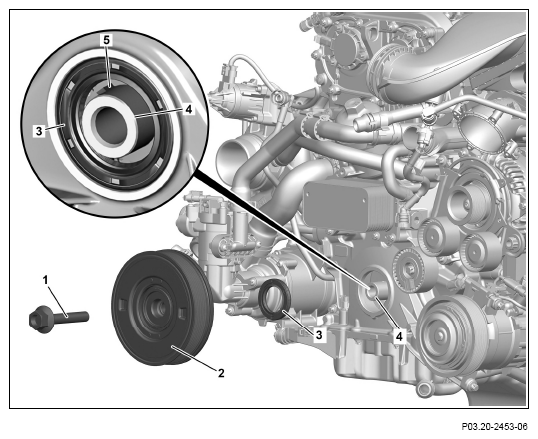

- Clean seat of radial shaft sealing ring (3).
The seat of the radial shaft sealing ring (3) and the radial shaft sealing ring (3) must be free of grease and oil.
- Place radial shaft sealing ring (3) on timing case cover and align at right angles to timing case cover.
- Install radial shaft sealing ring (3) with
drift by tightening center bolt (1) in timing case cover.
- Check installation position of radial shaft sealing ring (3) relative to timing case cover and to crankshaft (4).
The radial shaft sealing ring (3) must be at a right angle to the timing case cover and to the crankshaft (4).
Leaks can occur otherwise.
