Assembly And Covering Work When Painting The Rear Fender - Ar98.00-P-0207LWS
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.2, 213.2, 253
Model 293

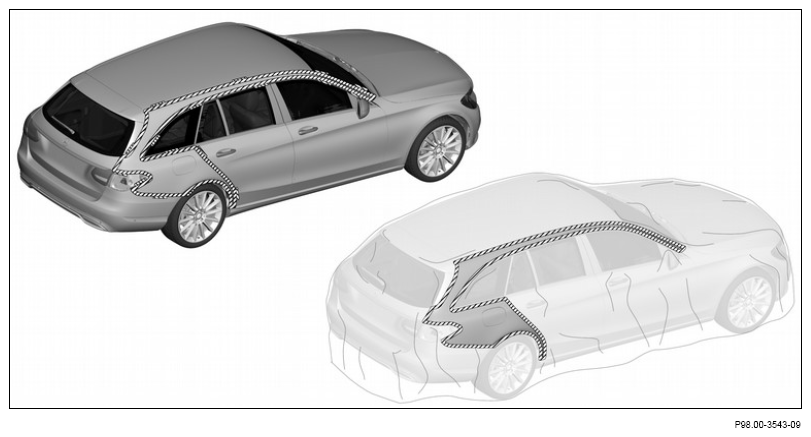

Shown on model 205.2 in paint stage 2/3 on right side of vehicle

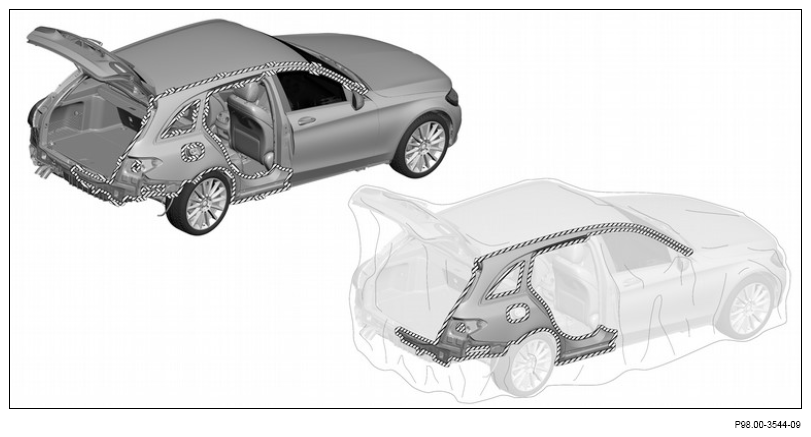

Shown on model 205.2 in paint stage 1E on right side of vehicle.

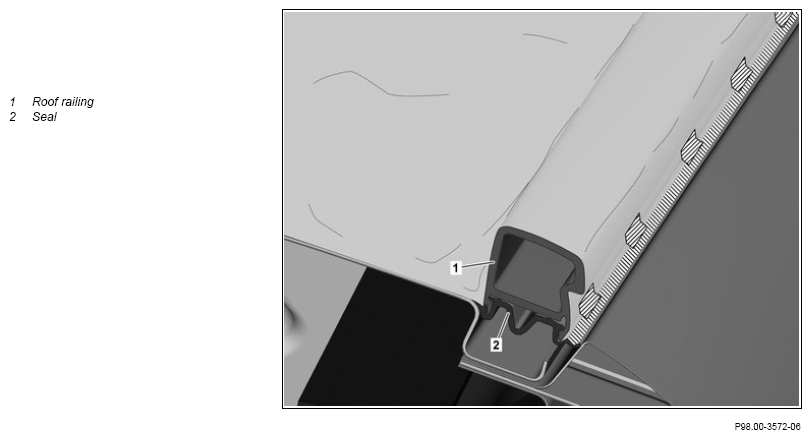

Sectional view of masking off and covering in the area of the roof railing (1), shown on model 205.2
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A . | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK . | ||
| Mask off, cover in paint stage 2 or 3 | |||
| 1.1 | Unfasten rear bumper. | Paint stage 3 if the damaged area is not in the vicinity of the bumper, or paint stage 2. | |
| Model 205.2, 213.2 | AR88.20-P-2200LWS | ||
| Model 253 Model 293 | AR88.20-P-2200LWG . | ||
| 1.2 | Remove rear bumper. | Paint stage 3, if the damaged area is in the vicinity of the rear bumper. | |
| Model 205.2, 213.2 | AR88.20-P-2200LWS | ||
| Model 253 Model 293 | AR88.20-P-2200LWG . | ||
| 2.1 | Release longitudinal member panel. | Paint stage 3, if the damaged area is not in the vicinity of the longitudinal member panel or paint stage 2. | |
| Model 205.2 | AR88.80-P-6000LW | ||
| Model 213.2 | AR88.80-P-6000LWE | ||
| Model 253 Model 293 | AR88.80-P-6000LWG . | ||
| 2.2 | Remove longitudinal member panel. | Paint stage 3, if the damaged area is in the vicinity of the longitudinal member panel. | |
| Model 205.2 | AR88.80-P-6000LW | ||
| Model 213.2 | AR88.80-P-6000LWE | ||
| Model 253 Model 293 | AR88.80-P-6000LWG . | ||
| 3 | Remove rear lamp unit. | Model 205.2, 213.2, 253 Model 293 | |
| Model 205.2, 213.2, 253.1/9 | AR82.10-P-4731LWS . | ||
| Model 253.3 | AR82.10-P-4731LWX . | ||
| 4 | Lift seal (2) in area of roof railing (1) at outer roof paneling, underlay with suitable spacer and mask off. | Model 205.2, 213.2, 253.1/9 Model 293 | |
| 5 | Unclip trim elements from triangular window in the side wall. | Model 205.2 Unclip trim elements carefully. Otherwise, the trim elements may be damaged. Always replace the trim elements because they are damaged during removal. |
|
| Fig 1. | |||
| 6 | Remove triangular window in the side wall. | Model 205.2, 213.2, 253 Model 293 Paint stage 3, if the damaged area is in the area of the triangular window in the side wall. |
|
| Model 205.2, 213.2, 253 | AR67.30-P-4000LWS . | ||
| 7 | Remove drip rail. | Model 253.3 Model 293 |
|
| AR88.80-P-4000LW . | |||
| 8 | Remove fuel filler flap. | Right side of vehicle. | |
| Model 205.2, 253 | AR88.60-P-2000LW . | ||
| Model 213.2 | AR88.60-P-2001LWE | ||
| 9.1 | Mask off tank filler recess. | Right side of vehicle. Paint stage 3 if the damaged area is not in the vicinity of the tank filler recess, or paint stage 2. |
|
| 9.2 | Remove tank filler recess. | Right side of vehicle. Paint stage 3, if the damaged area is in the vicinity of the tank filler recess. | |
| Model 205.2, 253 | AR88.60-P-2000LW . | ||
| Model 213.2 | AR88.60-P-2001LWE | ||
| 10 | Install fuel filler flap. | Right side of vehicle. Paint stage 3 if the damaged area is not in the vicinity of the tank filler recess, or paint stage 2. | |
| Model 205.2, 253 | AR88.60-P-2000LW . | ||
| Model 213.2 | AR88.60-P-2001LWE | ||
| 11 | Mask off inside of fuel filler flap and close fuel filler flap. | Right side of vehicle. Paint stage 3 if the damaged area is not in the vicinity of the tank filler recess, or paint stage 2. | |
| 12 | Remove cover from load compartment sealing frame. | Paint stage 3, if the damaged area is in the area of the cover on the load compartment sealing frame. | |
| 13 | Mask off all openings using masking tape. | ||
| 14 | Mask off rear fender all the way round. | ||
| 15 | Cover areas of vehicle that are not to be painted using film. | ||
| Mask off, cover in paint stage 1E | |||
| 16 | Remove rear bumper. | Model 205.2, 213.2 | AR88.20-P-2200LWS |
| Model 253 Model 293 | AR88.20-P-2200LWG . | ||
| 17.1 | Remove trailer hitch. | Model 205.2, 213.2, 253.3/9, 293 with code 550 (Trailer coupling) | |
| Model 205.2 with code 550 (Trailer coupling) |
AR31.10-P-8000LWS | ||
| Model 213.2 with code 550 (Trailer coupling) |
AR31.10-P-8000LWT | ||
| Model 253.3/9 with code 550 (Trailer coupling) |
AR31.10-P-8000LWG . | ||
| 17.2 | Remove rear crossmember under bumper. | Model 205.2, 213.2, 253, 293 except code 550 (Trailer coupling) | |
| 18 | Remove holder for rear bumper. | ||
| 19 | Remove rear fender liner. | Model 205.2, 253, 293 | AR88.10-P-1400LW . |
| Model 213.2 | AR88.10-P-1400LWE | ||
| 20 | Remove longitudinal member panel. | Model 205.2 | AR88.80-P-6000LW |
| Model 213.2 | AR88.80-P-6000LWE | ||
| Model 253 Model 293 | AR88.80-P-6000LWG . | ||
| 21 | Remove tank filler recess. | Right side of vehicle. | |
| Model 205.2, 253 | AR88.60-P-2000LW . | ||
| Model 213.2 | AR88.60-P-2001LWE | ||
| 22 | Remove pneumatic spring of liftgate. | Model 205.2, 213.2, 253 | AR72.20-P-2832LW . |
| 23 | Remove edge guard for load compartment cutout. | ||
| 24 | Remove cover from load compartment sealing frame. | ||
| 25 | Remove rear lamp unit. | Model 205.2, 213.2, 253 Model 293 | |
| Model 205.2, 213.2, 253.1/9 | AR82.10-P-4731LWS . | ||
| Model 253.3 | AR82.10-P-4731LWX . | ||
| 26 | Remove triangular window in the side wall. | Model 205.2, 213.2, 253 Model 293 | |
| Model 205.2, 213.2, 253 | AR67.30-P-4000LWS . | ||
| 27 | Remove rear door. | Model 205.2, 213.2, 253 Model 293 | |
| Model 205.2, 213.2, 253 | AR72.12-P-0600LW . | ||
| 28 | Remove edge guard for door cutout of rear door. | ||
| 29 | Detach floor covering. | ||
| 30 | Remove drip rail. | Model 253.3 | |
| AR88.80-P-4000LW . | |||
| 31 | Lift seal (2) in area of roof railing (1) at outer roof paneling, underlay with suitable spacer and mask off. | Model 205.2, 213.2, 253.1/9 Model 293 | |
| 32 | Mask off all openings using masking tape. | ||
| 33 | Mask off rear fender all the way round. | ||
| 34 | Cover areas of vehicle that are not to be painted using film. |
