Remove/Install Longitudinal Member Paneling - AR88.80-P-6000LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253

Model 293

Shown on model 253 except code 846 (running board)

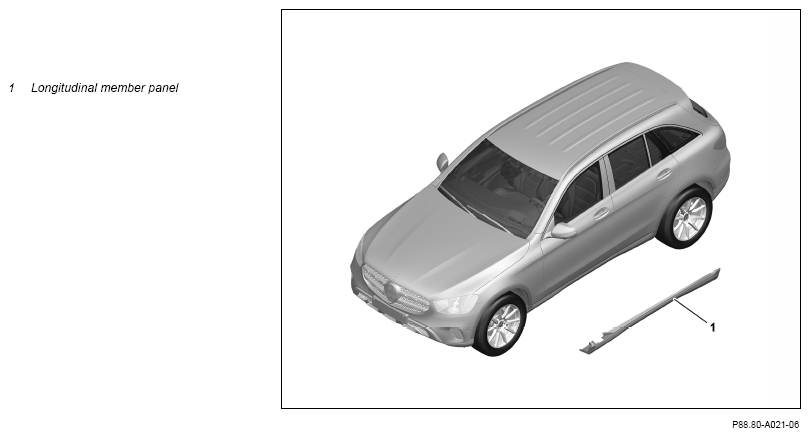

Fig 1: Longitudinal Member Paneling Components Location - Model 253 (Shown Except Code 846)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open doors.
2	Mask off rear door in front bottom area with a felt strip.	Scratches to the longitudinal member paneling (1) through the rear door can be prevented by felt strips.
		Felt strip	*BR00.45-Z-1150-02A
3	Remove longitudinal member panel (1).	Model 253	AR88.80-P-6000-03LWG
		Model 293	AR88.80-P-6000-03LWR
4	Install in the reverse order.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1150-02A	Felt strip	A 000 983 89 10
