Remove/Install Front Pinion Housing With Drive Pinion - AR33.30-P-0469SYZ

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204.08/09/28/29/38/90/93/98/99, 207.38

Model 205 with transmission 722.96

Model 205, 213 (except 213.088/089/288/289), 217, 218, 222, 238, 253 with transmission 725.0

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 212, 217, 218, 222 with transmission 722.97

Model 212.08/09/28/29, 218.39/99 with transmission 722.96

Model 216, 221 with transmission 722.96

Model 217, 222 with transmission 722.96

MODIFICATION NOTES

23.06.2021 Oil filler method on front axle differential (1) changed.

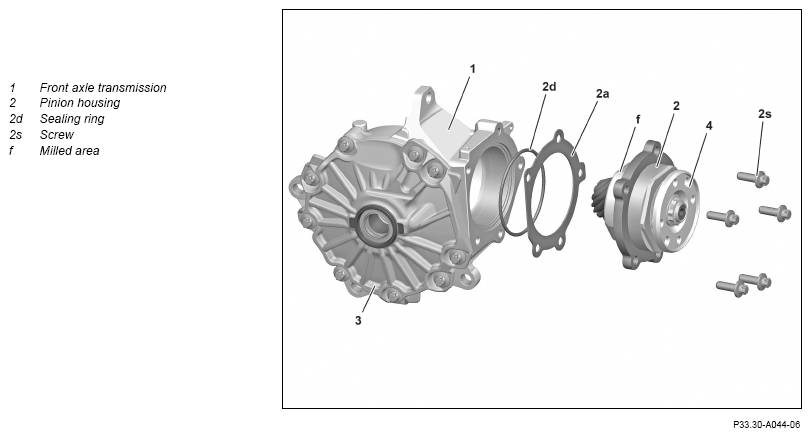

Shown on front axle differential 175 as of 01.04.2018

Fig 1: Front Pinion Housing With Drive Pinion Components Location - Model 253 With Transmission 725.0 (Shown On 175 As Of 01.04.2018)
G14546969Courtesy of MERCEDES-BENZ USA

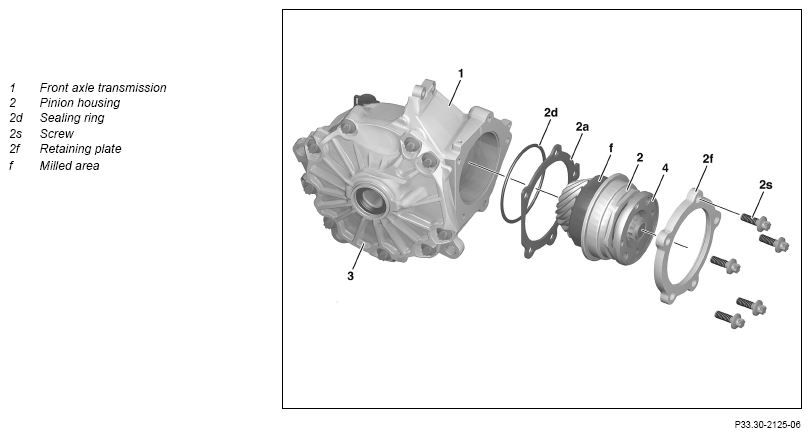

Shown on front axle differential 175 up to 31.03.2018

G14546970Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Notice Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on evaluating leakages   AH00.00-P-0011-01KOA
REMOVING Remove
1 Remove propeller shaft from front axle differential (1). Model 213.061/261, 238.361/461 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070MSA
    Model 205 with transmission 722.96 AR41.10-P-0070LWY
    Model 216, 221.0/1 with transmission 722.96 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070SYZ
    Model 217, 222 with engine 176, 278 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 217, 222 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 217, 222 with transmission 722.96/97
Model 222 with engine 276, 642, 656 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR41.10-P-0070LFX
    Model 222 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070MRT
    Model 204.08/09/28/29/38/90/93/98/99, 207.38 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070CWX
    Model 212, 218 with transmission 722.97
Model 212.08/09/28/29, 218.39/99 with transmission 722.96		 AR41.10-P-0070EWX
    Model 218 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070AVG
    Model 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070LW
    Model 205 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070LWA
    Model 213 (except 213.061/088/089/261/288/289), 238 (except 238.361/461) with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070OLC
2.1 Unscrew screws (2s) and remove retaining plate (2f). Model 204.08/09/28/29/38/90/93/98/99, 207.38 with front axle differential 175 to 31.03.2018 Model 205 with transmission 722.96 with front axle differential 175 to 31.03.2018 Model 205, 213 (except 213.088/089/288/289), 217, 218, 222, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) with front axle differential 175 to 31.03.2018 Model 212, 217, 218, 222 with transmission 722.97 with front axle differential 175 to 31.03.2018 Model 212.08/09/28/29, 218.39/99 with transmission 722.96 with front axle differential 175 to 31.03.2018 Model 216, 221 with transmission 722.96 with front axle differential 175 to 31.03.2018 Model 217, 222 with transmission 722.96 with front axle differential 175 to 31.03.2018
2.2 Remove bolts (2s). Model 204.08/09/28/29/38/90/93/98/99, 207.38 with front axle differential 175 as of 01.04.2018 Model 205 with transmission 722.96
With VAG 160Model 205 with transmission 722.96 with front axle differential 175 as of 01.04.2018 Model 205, 213 (except 213.088/089/288/289), 217, 218, 222, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) with front axle differential 175 as of 01.04.2018 Model 205, 213 (except 213.088/089/288/289), 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
With VAG 160Model 212, 217, 218, 222 with transmission 722.97 with front axle differential 175 as of 01.04.2018 Model 212.08/09/28/29, 218.39/99 with transmission 722.96 with front axle differential 175 as of 01.04.2018 Model 216, 221 with transmission 722.96 with front axle differential 175 as of 01.04.2018 Model 217, 222 with transmission 722.96 with front axle differential 175 as of 01.04.2018
3 Drain oil from front axle differential (1). Model 204.08/09/28/29/38/90/93/98/99, 207.38
Model 205 with transmission 722.96
Model 205, 213 (except 213.088/089/288/289), 217, 218, 222, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 212, 217, 218, 222 with transmission 722.97
Model 212.08/09/28/29, 218.39/99 with transmission 722.96
Model 216, 221 with transmission 722.96
Model 217, 222 with transmission 722.96
    Model 205, 213 (except 213.088/089/288/289), 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) With VAG 160 AR33.25-P-0300-01LWX
4 Clean area surrounding pinion housing (2) on front axle differential (1). Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
5 Pull pinion housing (2) out of front axle differential (1).   AR33.30-P-0469-01SYZ
    SPECIAL TOOL Impact extractor Fig 3
    SPECIAL TOOL Extraction tool Fig 4
INSTALLING Install
6 Clean thread of drain screw in housing of front axle differential (1). Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
7 Screw drain screw into front axle differential (1). IMPORTANT Replace seal.
    TORQUE SPECIFICATION Front axle transmission drain screw *BA33.30-P-1008-03G
8 Fill front axle differential (1) with hypoid gear oil through housing opening of pinion housing (2). FLUID SPECIFICATION Model 216.386/394 with transmission 722.96
Model 221.08/094/18/194 with transmission 722.96Hypoid gear oil		 *BF33.30-P-1001-03C
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    FLUID SPECIFICATION Model 204.08/09/28/29/38/90/93/98/99, 207.38
Model 205 with transmission 722.96
Model 205, 213 (except 213.088/089/288/289), 217, 218, 222, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 212, 217, 218, 222 with transmission 722.97
Model 212.08/09/28/29, 218.39/99 with transmission 722.96
Model 217, 222 with transmission 722.96Hypoid gear oil		 *BF33.30-P-1001-03F
    SPECIAL TOOL Hand pump Fig 2
9 Insert pinion housing (2) into front axle differential (1). NOTES Insert pinion housing (2) into front axle differential (1) with utmost care.
Otherwise the sealing ring (2d) will be damaged.
IMPORTANT Replace sealing ring (2d) and moisten new sealing ring (2d) with Vaseline.
To maintain the flow of oil in the pinion housing (2), the milled area (f) must face upwards.
    VASELINE/DBL 6850.00 *BR00.45-Z-1098-06A
10.1 Screw in bolts (2s). Model 204.08/09/28/29/38/90/93/98/99, 207.38 with front axle differential 175 as of 01.04.2018 Model 205 with transmission 722.96
With VAG 160Model 205 with transmission 722.96 with front axle differential 175 as of 01.04.2018 Model 205, 213 (except 213.088/089/288/289), 217, 218, 222, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) with front axle differential 175 as of 01.04.2018 Model 205, 213 (except 213.088/089/288/289), 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
With VAG 160Model 212, 217, 218, 222 with transmission 722.97 with front axle differential 175 as of 01.04.2018 Model 212.08/09/28/29, 218.39/99 with transmission 722.96 with front axle differential 175 as of 01.04.2018 Model 216, 221 with transmission 722.96 with front axle differential 175 as of 01.04.2018 Model 217, 222 with transmission 722.96 with front axle differential 175 as of 01.04.2018
    TORQUE SPECIFICATION Collar bolt, retaining plate to front axle differential *BA33.30-P-1004-03G
10.2 Position retaining plate (2f) and screw in screws (2s). Model 204.08/09/28/29/38/90/93/98/99, 207.38
Front axle differential 175 up to 31.03.2018 Model 205 with transmission 722.96
Front axle differential 175 up to 31.03.2018 Model 205, 213 (except 213.088/089/288/289), 217, 218, 222, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Front axle differential 175 up to 31.03.2018 Model 212, 217, 218, 222 with transmission 722.97
Front axle differential 175 up to 31.03.2018 Model 212.08/09/28/29, 218.39/99 with transmission 722.96
Front axle differential 175 up to 31.03.2018 Model 216, 221 with transmission 722.96
Front axle differential 175 up to 31.03.2018 Model 217, 222 with transmission 722.96 Front axle differential 175 up to 31.03.2018
    TORQUE SPECIFICATION Collar bolt, retaining plate to front axle differential *BA33.30-P-1004-03G
11 Install propeller shaft onto front axle differential (1). Model 213.061/261, 238.361/461 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070MSA
    Model 205 with transmission 722.96 AR41.10-P-0070LWY
    Model 217, 222 with engine 176, 278 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 217, 222 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 217, 222 with transmission 722.96/97
Model 222 with engine 276, 642, 656 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR41.10-P-0070LFX
    Model 222 with engine 256 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070MRT
    Model 204.08/09/28/29/38/90/93/98/99, 207.38 AR41.10-P-0070CWX
    Model 216, 221.0/1 with transmission 722.96 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070SYZ
    Model 212, 218 with transmission 722.97
Model 212.08/09/28/29, 218.39/99 with transmission 722.96		 AR41.10-P-0070EWX
    Model 218 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070AVG
    Model 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070LW
    Model 205 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR41.10-P-0070LWA
    Model 213 (except 213.061/088/089/261/288/289), 238 (except 238.361/461) with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
NOTES Observe tightening torque.
Otherwise there will be noise development and vibrations in the front axle transmission (1).
IMPORTANT Install bottom section of soundproofing or center and rear lower engine compartment lining only after the leak test.		 AR41.10-P-0070OLC
INSPECT Check
12 Check front axle differential (1) for leak tightness and proper operation.
13.1 Install center and rear lower engine compartment lining. Model 204.08, 212.08/28 with engine 272 with transmission 722.96
Model 204.08/38, 207.38, 212.08/09/28/29 with engine 276 with transmission 722.96
Model 204.90/93/98/99
Model 205, 213 (except 213.088/089/288/289), 217, 222, 238, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 205, 217, 222 with transmission 722.96
Model 212.09/29, 218.39/99 with engine 157 with transmission 722.97
Model 212.09/29, 218.39/99 with engine 278 with transmission 722.96
Model 216, 221 with transmission 722.96
Model 217, 222 with transmission 722.97
Model 218 with engine 276 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 218 with engine 278 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
    Model 221.1 with transmission 722.96 with code Z07 (B7 armoring on special protection version) AR61.20-P-1105SXS
    Model 204.90/93/98/99 AR61.20-P-1105CY
    Model 216 with transmission 722.96
Model 221 with transmission 722.96 except code Z07 (B7 armoring on special protection version)		 AR61.20-P-1105SX
    Model 217, 222 with transmission 722.96/97
Model 217, 222 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR61.20-P-1105LF
    Model 204.08, 212.08/28 with engine 272 with transmission 722.96
Model 204.08/38, 207.38, 212.08/09/28/29 with engine 276 with transmission 722.96
Model 212.09/29, 218.39/99 with engine 157 with transmission 722.97
Model 212.09/29, 218.39/99 with engine 278 with transmission 722.96
Model 218 with engine 276 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 218 with engine 278 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR61.20-P-1105EW
    Model 213 (except 213.088/089/288/289), 238 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) AR61.20-P-1105LWE
    Model 205 with transmission 722.96
Model 205, 253 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)		 AR61.20-P-1105LW
13.2 Install bottom part of noise encapsulation. Model 204.08/09/28/29, 212.08/09/28/29, 218.39/99 with engine 642 with transmission 722.96
Model 204.08/28, 212.08/09/28/29, 218.39/99 with engine 651 with transmission 722.96
Model 218 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)
      AR94.30-P-5300EW
FRONT AXLE GEAR

Number Designation Model 204 Model 205
BA33.30-P-1004-03G Collar bolt, retaining plate to front axle differential Nm 55 55
FRONT AXLE GEAR

Number Designation Model 207 Model 212
BA33.30-P-1004-03G Collar bolt, retaining plate to front axle differential Nm 55 55
FRONT AXLE GEAR

Number Designation Model 213 Model 216
BA33.30-P-1004-03G Collar bolt, retaining plate to front axle differential Nm 55 55
FRONT AXLE GEAR

Number Designation Model 217 Model 218
BA33.30-P-1004-03G Collar bolt, retaining plate to front axle differential Nm 55 55
FRONT AXLE GEAR

Number Designation Model 221 Model 222
BA33.30-P-1004-03G Collar bolt, retaining plate to front axle differential Nm 55 55
FRONT AXLE GEAR

Number Designation Model 238 Model 253
BA33.30-P-1004-03G Collar bolt, retaining plate to front axle differential Nm 55 55
FRONT AXLE GEAR

Number Designation Model 204 Model 205
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation Model 207 Model 212
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation Model 213 Model 216
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation Model 217 Model 218
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation Model 221 Model 222
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE GEAR

Number Designation Model 238 Model 253
BA33.30-P-1008-03G Front axle transmission drain screw Nm 20 20
FRONT AXLE TRANSMISSION

Number Designation MODEL 216 with 4MATIC MODEL 221 with 4MATIC
BF33.30-P-1001-03C Hypoid gear oil Filling capacity Liter 0, 6 0, 6
Specification   BB00.40-P-0235-07A BB00.40-P-0235-07A
FRONT AXLE GEAR

Number Designation Model 204 Model 205
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Universal hypoid gear oil   BB00.40-P-0235-07A BB00.40-P-0235-07A
Overview of axle gear oils   BB00.40-P-0231-01A BB00.40-P-0231-01A
Axle gear oils   - BB00.40-P-0239-72A
FRONT AXLE GEAR

Number Designation Model 207 Model 212
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Universal hypoid gear oil   BB00.40-P-0235-07A BB00.40-P-0235-07A
Overview of axle gear oils   BB00.40-P-0231-01A BB00.40-P-0231-01A
Axle gear oils   BB00.40-P-0239-72A BB00.40-P-0239-72A
FRONT AXLE GEAR

Number Designation Model 213 Model 217
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Universal hypoid gear oil   BB00.40-P-0235-07A BB00.40-P-0235-07A
Overview of axle gear oils   BB00.40-P-0231-01A BB00.40-P-0231-01A
Axle gear oils   BB00.40-P-0239-72A BB00.40-P-0239-72A
FRONT AXLE GEAR

Number Designation Model 218 Model 222
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Universal hypoid gear oil   BB00.40-P-0235-07A BB00.40-P-0235-07A
Overview of axle gear oils   BB00.40-P-0231-01A BB00.40-P-0231-01A
Axle gear oils   BB00.40-P-0239-72A BB00.40-P-0239-72A
FRONT AXLE GEAR

Number Designation Model 238 Model 253
BF33.30-P-1001-03F Hypoid gear oil Filling capacity Liter 0, 55 0, 55
Universal hypoid gear oil   BB00.40-P-0235-07A BB00.40-P-0235-07A
Overview of axle gear oils   BB00.40-P-0231-01A BB00.40-P-0231-01A
Axle gear oils   BB00.40-P-0239-72A BB00.40-P-0239-72A
Fig 2: Identifying Hand Pump (210 589 00 71 00)
G11975242Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Impact Extractor (602 589 00 33 00)
G07694680Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Extraction Tool (221 589 04 33 00)
G12937618Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
BR00.45-Z-1098-06A VASELINE/DBL 6850.00 A 000 989 15 51
scientia non olet · About LEMON Manuals
