Remove Front Pinion Housing - AR33.30-P-0469-01SYZ

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 204.08/09/28/29/38/90/93/98/99, 207.38

Model 205 with transmission 722.96/97

Model 205, 213, 217, 218, 222, 238, 253, 257, 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 212, 217, 218, 222 with transmission 722.97

Model 212.08/09/28/29, 216, 218.39/99, 221 with transmission 722.96

Model 217, 222 with transmission 722.96

Model 257 with transmission 725.1 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Fig 1: Identifying Impact Extractor (602 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Tool (221 589 04 33 00)

Courtesy of MERCEDES-BENZ USA

The knock-on balancing weight must be mounted on the impact extractor (02) so that the impact travel is short.

Otherwise the body may be damaged.

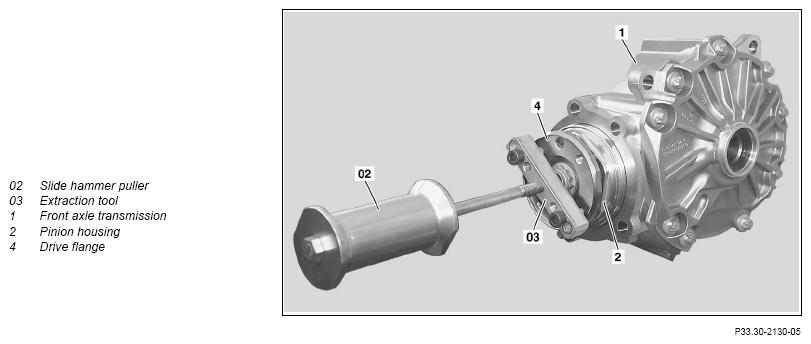

Mount extraction tool (03) onto drive flange (4).

Shown on front axle differential 175

Courtesy of MERCEDES-BENZ USA
Mount impact extractor (02) onto extraction tool (03).
Pull pinion housing (2) out of front axle differential (1).
