Remove/Install Engine Oil Spray Nozzles (Pistons) - AR18.00-P-4000MRI

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264 in model 205, 253

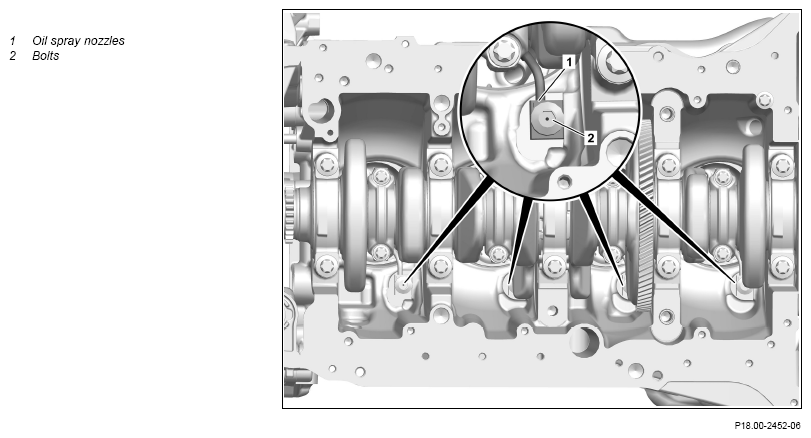

Fig 1: Engine Oil Spray Nozzles (Pistons) Components Location - Engine 264 In Model 253

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove oil pump.		AR18.10-P-6020MRI
2	Remove balance shaft housing.	Engine 264 in model 253 Engine 264.920 in model 205	AR03.20-P-1105MRI
3	Remove front oil deflector.	Screw/bolt, oil deflector to crankcase	*BA18.10-P-1005-01W
4	Remove screws (2), remove oil spray nozzles (1) and seal openings using suitable stop plugs.	It must be possible to immerse the oil spray nozzles (1) in the cutouts of the piston crowns. The oil spray nozzles may otherwise be damaged (1). Twist the crankshaft if necessary for better accessibility.
		Bolt, oil spray nozzle to crankcase	*BA18.00-P-1001-02B
		Record plug	Fig 2
	Check
5	Check the oil ducts for dirt and, if necessary, blow them out with compressed air.
6	Install in the reverse order.

ENGINE LUBRICATION, OIL COOLING SYSTEM

Number	Designation		Engine 264
BA18.00-P-1001-02B	Bolt, oil spray nozzle to crankcase	Nm	20

OIL PUMP

Number	Designation		Engine 264
BA18.10-P-1005-01W	Screw/bolt, oil deflector to crankcase	Nm	9

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
