Remove/Install Engine Oil Pump - AR18.10-P-6020MRI

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264 in model 205, 253

MODIFICATION NOTES

26.06.2019

Method description adapted.

Operation steps 2 to 5

Shown on model 205 with engine 264

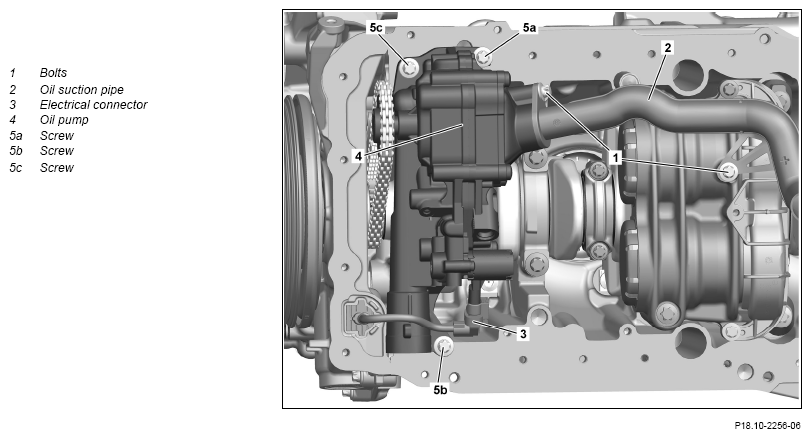

Fig 1: Engine Oil Pump Components Location - Engine 264 In Model 253 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove oil pan.	Engine 264 in model 205, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR01.45-P-7500MRJ
		Engine 264 in model 205, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR01.45-P-7500MRI
2	Remove screws (1) and remove oil suction pipe (2).	The number of screws (1) varies depending on the vehicle equipment.
		Bolt, oil suction pipe to pipe flange/bracket	*BA18.10-P-1003-01W
3	Release and disconnect electrical connection (3).
4	Secure oil pump (4) against falling down and unscrew screws (5a to 5c) contrary to alphanumeric sequence.	Tighten screws (5a to 5c) slightly by hand first of all, and then tighten them in an alphanumeric sequence.
		Bolt, oil pump to crankcase	*BA18.10-P-1001-01W
5	Press clamping device for oil pump chain back, remove oil pump chain from oil pump gear, and remove oil pump (4). Specified engine oils (service) - Overview
			BB00.40-P-0223-02A
		Fill oil pump (4) with engine oil before installation. Engine damage can occur otherwise. Replace seal.
	Check
6	Check oil pump gear for unobstructed movement and damage.	If the oil pump gear jams or is damaged, ↓ Replace oil pump (4).
7	Check clamping device for oil pump chain for damage.	If damage is present on the clamping device, ↓ Replace clamping device.
			AR05.10-P-8420MRI
8	Install in the reverse order.

OIL PUMP

Number	Designation		Engine 264
BA18.10-P-1001-01W	Bolt, oil pump to crankcase	Nm	14

OIL PUMP

Number	Designation		Engine 264
BA18.10-P-1003-01W	Bolt, oil suction pipe to pipe flange/bracket	Nm	9
