Remove/Install Engine Oil Spray Nozzles (Pistons) - AR18.00-P-4000MR
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 133 in model 117, 156, 176
Engine 270 in model 117, 156, 176, 242, 246
Engine 274 in model 172, 204, 205, 207, 212, 218, 253
Shown on ENGINE 274
| Remove/install | |||
| 1 | Remove oil pump | Engine 133 in model 117, 156, 176 Engine 270 in model 117, 156, 176, 242, 246.2 |
AR18.10-P-6020MT |
| Engine 274 in model 172, 204, 207 | AR18.10-P-6020MR | ||
| Engine 274.9 in model 205 Engine 274.9 in model 253 |
AR18.10-P-6020MRA | ||
| Engine 274 in model 212, 218 | AR18.10-P-6020MRS | ||
| 2 | Remove balance shaft housing | Engine 270.920 in model 117, 156, 176.04, 246.24 | AR03.20-P-1100MT |
| Engine 274.920 in model 172, 204, 207, 212, 218 | AR03.20-P-1100MR | ||
| Engine 274.920 in model 205 Engine 274.920 in model 253 |
AR03.20-P-1100MRA | ||

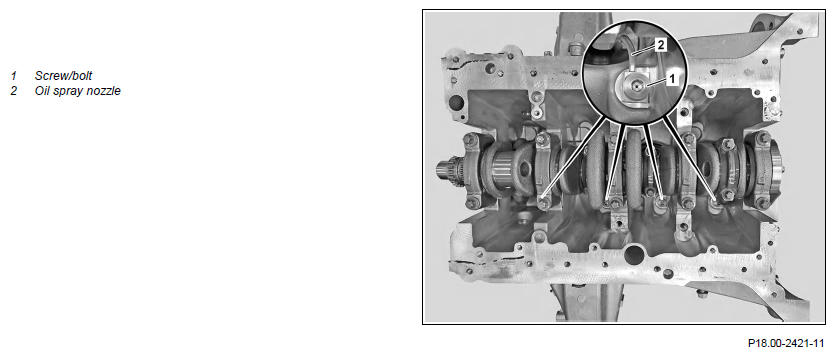

| 3 | Loosen screw/bolt (1), remove oil spray nozzle (2) and close off oil feed bores with suitable stop plugs | *BA18.00-P-1001-01D | |
| Fig 3 | |||
| Fig 2 | |||
| 4 | Check oil ducts for soiling and clean if necessary | ||
| 5 | Install in the reverse order |
ENGINE LUBRICATION, ENGINE OIL COOLING, GENERAL
| Number | Designation | Engine 133 | Engine 270 | |
|---|---|---|---|---|
| BA18.00-P-1001-01D | Screw/bolt, oil spray nozzle to cylinder crankcase | Nm | 20 | 20 |
ENGINE LUBRICATION, ENGINE OIL COOLING, GENERAL
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA18.00-P-1001-01D | Screw/bolt, oil spray nozzle to cylinder crankcase | Nm | 20 |
