Remove/Install Engine Oil Pump - AR18.10-P-6020MRA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.9 in model 205
Engine 274.9 in model 253

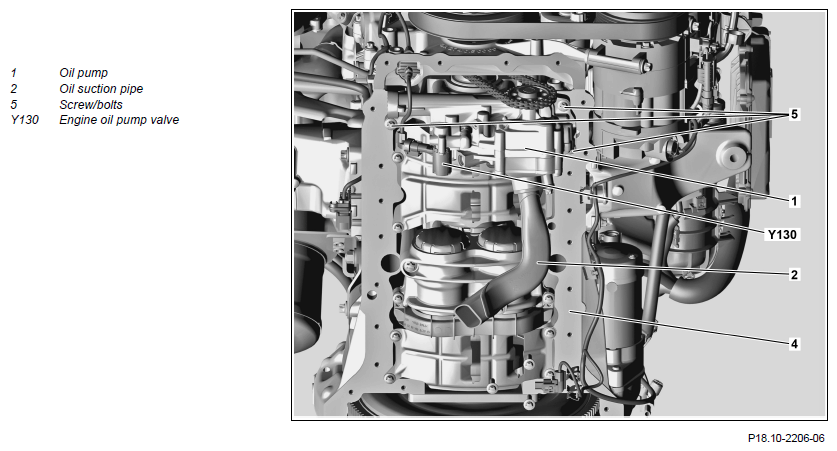

| Remove/install | |||
| 1 | Remove oil pan | AR01.45-P-7500MRA | |
| 2 | Remove oil suction pipe (2) | Vehicles without 4MATIC. |
*BA18.10-P-1003-01S |
| 3 | Release and disconnect electrical connection for engine oil pump valve (Y130) | ||
| 4 | Remove screw/bolt/bolts (5) | *BA18.10-P-1001-01S | |
| 5 | Press clamping device for oil pump chain together, remove oil pump chain from oil pump gear and remove oil pump (1) | Fill oil pump (1) with engine oil before installation. Engine damage can occur otherwise. |
|
| Check | |||
| 6 | Check oil pump gear for unobstructed movement and damage | In the case of a jamming or damages oil pump gear. ↓ Replace oil pump (1). |
|
| 7 | Check clamping device for oil pump chain for damage | In the case of a damaged clamping device ↓ Replace clamping device. |
|
| 8 | Install in the reverse order |
OIL PUMP
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA18.10-P-1001-01S | Bolt, oil pump to crankcase | Nm | 14 |
OIL PUMP
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA18.10-P-1003-01S | Bolt, oil suction pipe to pipe flange/bracket | Nm | 9 |
