Disassemble/Assemble Planetary Gear Set 1 - AR27.50-P-0623-01EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

Fig 1: Identifying Pliers (000 589 52 37 00)

Courtesy of MERCEDES-BENZ USA

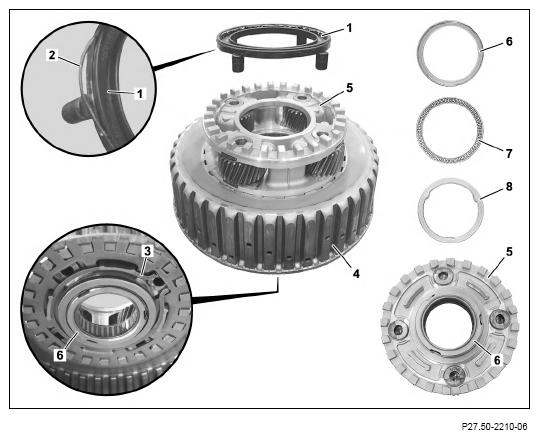

Unclip oil duct (1).
Check oil duct (1) and sealing ring (2) and replace oil duct (1), if necessary.
Remove retaining ring (3) using pliers.
Remove external plate carrier (4) from planetary gear set 1 (5).
Unclip thrust bearing (6, 7, 8).
Check thrust bearing (6, 7, 8) for damage and replace, if necessary.

Assembly : Make sure that it is installed at the correct position.
Assemble in the reverse order.
