Remove/Install Engine With Transmission - AR01.10-P-2401MRI

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264 in model 205, 253

except code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

04.09.2019 Method description modified. Operation steps 19, 20, 21, 22, 25, 26
04.09.2019 Special tool inserted. Operation steps 19, 20, 21, 22, 25, 26
23.07.2019 Method description adapted. Operation steps 5, 9, 28, 29, 30

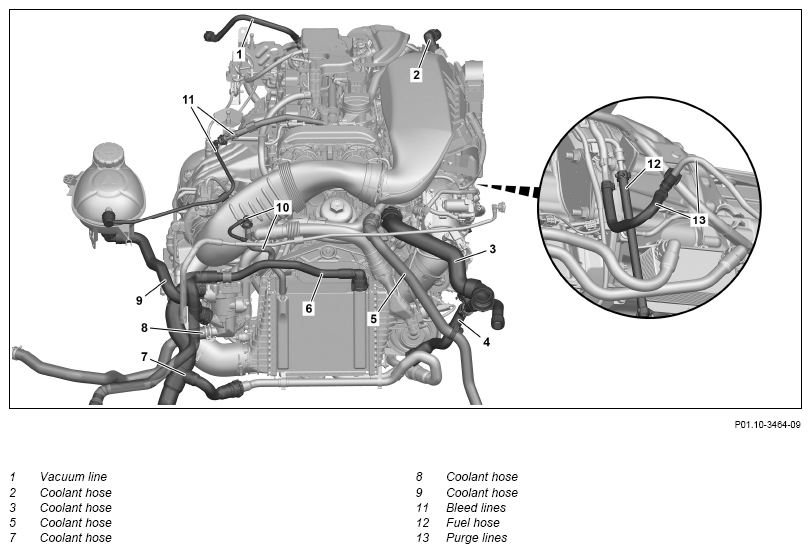

G14470519Courtesy of MERCEDES-BENZ USA

Shown on model 205 with CODE M005 (4MATIC)

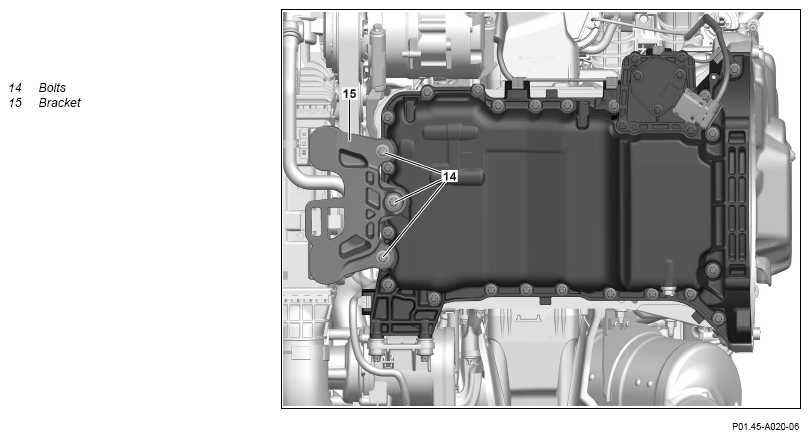

G14470520Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01KOA
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases   AH01.10-P-0001-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Secure vehicle against rolling away, shift transmission to neutral position, and release parking brake.
2 Relieve fuel pressure using diagnostic system.
REFER TO SELF-DIAGNOSTIC SYSTEMS   IMPORTANT To do so, select following menu items: ME-SFI [ME] control unit →
Actuation →
Actuate the fuel pump.
AD00.00-P-2000-04B
3 Secure vehicle on vehicle lift.   AR00.60-P-1006A
4 Disconnect the ground line for the on-board electrical system battery (G1).   AR54.10-P-0003LW
5 Discharge air conditioning system. INSTALLATION IMPORTANT Evacuate air conditioning system, refill, and check for leaks. AR83.30-P-1760LW
6 Remove engine cover. INSTALLATION IMPORTANT Do not install engine cover until after the leak test. AR01.10-P-2405MRI
7 Drain engine cooling system coolant. INSTALLATION IMPORTANT Only install engine compartment lining after leak test. AR20.00-P-1142MRI
8 Drain coolant of low-temperature circuit.   AR09.41-P-6834MRI
9 Remove drain screw, drain engine oil and catch in suitable container.
Notice  Notes on engine oil and filter changes INSTALLATION IMPORTANT Replace sealing ring. AH18.00-P-0104-01A
    TORQUE SPECIFICATION Drain screw to oil pan *BA01.45-P-1002-01ZA
    FLUID SPECIFICATION Engine oil *BF18.00-P-1001-01GA
10 Remove center exhaust system.   AR49.10-P-7283MRI
11 Remove propeller shaft from transmission output flange. Engine 264 in model 253 (except 253.992/993)
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR41.10-P-0050LWX
    Engine 264 in model 205
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR41.10-P-0050LW
12 Remove rear engine mount. IMPORTANT Place transmission on the rear engine carrier.
IMPORTANT The rear engine support remains on the vehicle.
AR22.10-P-1160LWB
13 Remove fuel hose (12), collect escaping fuel in a suitable container, and seal openings with suitable stop plugs. INSTALLATION IMPORTANT Install new fuel hose (12).
SPECIAL TOOL Record plug
Fig 3
    SPECIAL TOOL Pliers for click clamps Fig 4
14 Release, disconnect purge lines (13) and seal openings with suitable stop plugs. SPECIAL TOOL Record plug Fig 3
15 Remove fan unit. Engine 264 in model 253
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR20.40-P-5050MRP
    Engine 264 in model 205
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR20.40-P-5050MRI
16 Mount protective plate on cooler.
REFER TO SHOP-MADE TOOLS     WF58.50-P-0110-01A
17 Remove air filter housing.   AR09.10-P-1150MRI
18 Disconnect engine wiring harness.   AR15.18-P-1000-05MRI
    TORQUE SPECIFICATION Nut, positive line to busbar on firewall *BA54.18-P-1001-02C
    TORQUE SPECIFICATION Screw/bolt, heat shield to oil pan *BA27.10-P-1009-04H
    TORQUE SPECIFICATION Nut, ground line to pin/underfloor *BA00.19-P-1043-01E
19 Remove vacuum line (1) from vacuum pump and seal openings with suitable stop plugs. SPECIAL TOOL Record plug Fig 3
20 Remove coolant hose (2) from firewall and seal openings with suitable stop plugs.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective covers Fig 5
    SPECIAL TOOL Set of protective caps Fig 2
21 Release, disconnect bleed lines (11) and seal openings with suitable stop plugs.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Record plug Fig 3
22 Remove coolant hoses (3, 7) and seal openings with suitable stop plugs.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective caps Fig 2
    SPECIAL TOOL Set of protective covers Fig 5
23 Remove charge air cooler.   AR09.41-P-6817MRI
24 Remove screws (14) and remove bracket (15). TORQUE SPECIFICATION Bolt, bracket for charge air cooler to timing case/oil pan *BA09.41-P-1002-03F
25 Remove coolant hoses (5, 9) from engine, place to one side and seal openings with suitable stop plugs.   AR20.20-P-7441-01RQ
    SPECIAL TOOL Set of protective covers Fig 5
    SPECIAL TOOL Set of protective caps Fig 2
26 Remove coolant hose (8) from engine, place to one side and seal openings with suitable stop plugs. SPECIAL TOOL Set of protective caps Fig 2
    SPECIAL TOOL Set of protective covers Fig 5
    SPECIAL TOOL Hose clamp pliers Fig 1
27 Remove refrigerant lines from refrigerant compressor with magnetic clutch (A9/7).   AR83.55-P-5310MRI
28 Release, disconnect and expose inerting system line at firewall. Engine 264 in model 205, 253
with code 2U8 (Alternative refrigerant)
except code M005 (Vehicles with 4MATIC/all-wheel drive)
AR86.10-P-0419LWE
29 Hook load tilter to engine crane and all available engine lifting lugs and lift the engine slightly.
REFER TO SPECIAL TOOLS 000 588 00 62 00 Load tilter NOTES
Do not subject front engine mounts to tension when lifting.
Otherwise, damage to the front engine mounts will occur.
IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
30 Remove front engine mounts from engine carriers.   AR22.10-P-4330LWA
31 Lift out the engine together with the transmission.
REFER TO SPECIAL TOOLS 000 588 00 62 00 Load tilter NOTES
When lifting out/in engine, do not damage any lines and hoses.
Leaks can occur otherwise.
IMPORTANT Helper required.
IMPORTANTCommercially available devices/tools
Engine crane
WS01.00-P-0102B
32 Install in the reverse order.
INSPECT Check
33 Check engine oil level and correct if necessary.
REFER TO MAINTENANCE     AP18.00-P-1812MKI
34 Connect vehicle diagnosis system, read out fault memory and clear if necessary.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
35 Perform engine test run. While doing so, check engine for proper operation and leak tightness.
GROUND POINTS

Number Designation Model 205 up to model year 2019 Model 205 as of model year 2019
BA00.19-P-1043-01E Nut, ground line to pin/underfloor M8 Nm 20 20
GROUND POINTS

Number Designation Model 253 (except 253.99) as of model year 2020 Model 253 (except 253.99) up to model year 2020
BA00.19-P-1043-01E Nut, ground line to pin/underfloor M8 Nm 20 20
OIL PAN

Number Designation Engine 264
BA01.45-P-1002-01ZA Drain screw to oil pan Nm 40
CHARGE AIR COOLER

Number Designation Engine 264
BA09.41-P-1002-03F Bolt, bracket for charge air cooler to timing case/oil pan M6 Nm 9
M8 Nm 20
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1009-04H Screw/bolt, heat shield to oil pan Nm 9
WIRING HARNESS

Number Designation Model 205 Model 253
BA54.18-P-1001-02C Nut, positive line to busbar on firewall M6 Nm 8 8
M8 Nm 16 16
ENGINE LUBRICATION

Engine lubrication Number Designation Engine 264 in model 205, 213, 238, 257 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 264 in model 253
BF18.00-P-1001-01GA Engine oil Oil filling capacity with oil filter L 6, 6 6
Specification   BB00.40-P-0223-02A BB00.40-P-0223-02A
Fig 1: Identifying Hose Clamp Pliers (454 589 00 37 00)
G12939525Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Set Of Protective Caps (001 589 00 91 00)
G13668941Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G13655230Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Pliers For Click Clamps (171 589 00 37 00)
G13745025Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Set Of Protective Covers (001 589 01 91 00)
G13668947Courtesy of MERCEDES-BENZ USA
