Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MRI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 253
GROUND POINTS
| Number | Designation | Model 205 as of model year 2019 | Model 253 (except 253.99) | ||
|---|---|---|---|---|---|
| BA00.19-P-1043-01E | Nut, ground line to pin/underfloor | M8 | Nm | 20 | 20 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1009-04H | Screw/bolt, heat shield to oil pan | Nm | 9 |
WIRING HARNESS
| Number | Designation | Model 205 | Model 253 | ||
|---|---|---|---|---|---|
| BA54.18-P-1001-02C | Nut, positive line to busbar on firewall | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||
Shown in model 205 except code B01 (48V technology)

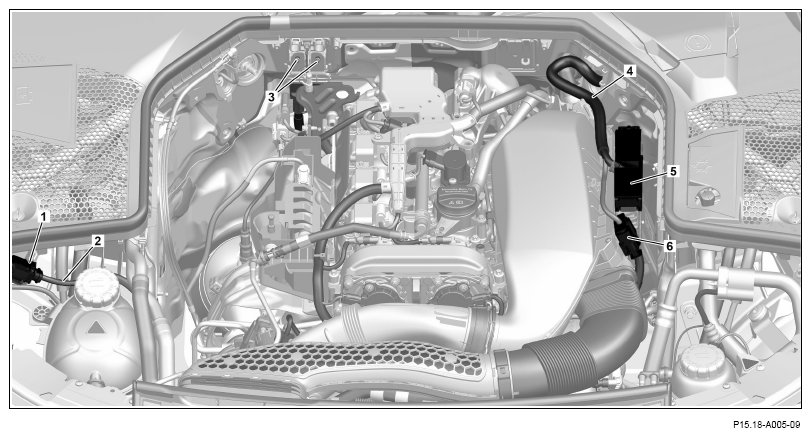

- Release electrical connector (1) and disconnect.
- Unclip electric line (2) and fasten to Engine.
- Release and disconnect electrical connectors (5, 6).
- Unclip wiring harness (4) from air filter housing and place to one side.
- Remove electric lines (3) from busbar
.
- Remove ground lines (7) from underbody Engine 264 in model 205
as of model year 2019
Engine 264 in model 253 (except 253.99)
up to model year 2020

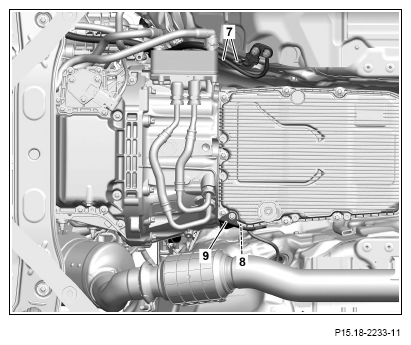

- Remove heat shield (9)
- Release and disconnect electrical connector (8).
- Connect in reverse order.
Shown in model 238 except code B01 (48V technology) and code M005 (4MATIC)
