Inspect Cylinders With A Light Probe - AR01.00-P-0200MRA

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 177, 276.8 in model 205

Engine 178 in model 190

Engine 274.9 in model 205, 253

Engine 276.8 in model 253

MODIFICATION NOTES

05.08.2019

Reference document AH05.30-P-1000-02SZ added.

Operation step 8.

Shown on engine 274.9

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove spark plugs.
		Engine 276.8 in model 205, 253	AP15.10-P-1580D
		Engine 178 in model 190	AP15.10-P-1580B
		Engine 274.9 in model 205, 253	AP15.10-P-1580CWF
		Engine 177 in model 205	AP15.10-P-1580C
2	Remove engine air intake duct upstream of air filter.	Engine 274.9 in model 205, 253
3	Remove lower engine compartment paneling.	Engine 177 in model 205	AR61.20-P-1105LW
4	Remove charge air cooler and place to one side with attached coolant lines.	Engine 276.8 in model 205 Engine 276.8 in model 253	AR09.41-P-6819MMV
5	Remove the circulation pump bracket.	Engine 178 in model 190	AR09.41-P-6925MNB
6	Turn engine at center bolt of the crankshaft in the direction of engine rotation until the piston o the cylinder to be checked is at bottom dead center (BDC).	Socket wrench bit	Fig 1

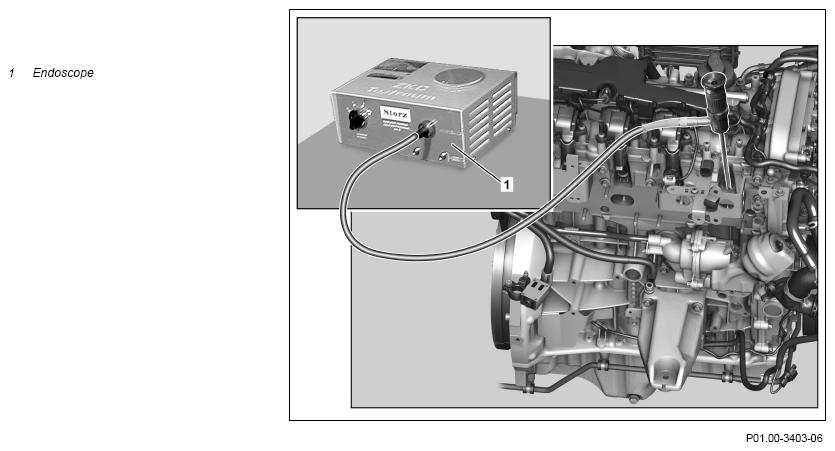

7	Connect the endoscope (1) and guide the flexible endoscope through the spark plug bore into the cylinder to be checked.
	000 588 01 21 00 Endoscope		WS01.00-P-0097B
	Check
8	Check cylinder barrels. General information on checking valves, valve seats and valve guides		AH05.30-P-1000-02SZ
	General information on inspecting cylinder walls	Engine 177, 276.8 in model 205 Engine 178 in model 190 Engine 276.8 in model 253	AH01.00-P-0300-01AMG
	General information on inspecting cylinder walls	Engine 274.9 in model 205, 253 If there is 'scoring' (wear to the cylinder), the cylinder barrel has become rough and honing marks are no longer visible. If the condition of the cylinder barrels is not clearly recognizable, ↓ Remove cylinder head.	AH01.00-P-0300-01A
		Right cylinder head Engine 178 in model 190	AR01.30-P-5780MNB
		Left cylinder head Engine 178 in model 190	AR01.30-P-5770MNB
		Cylinder head Engine 274.9 in model 205, 253	AR01.30-P-5800MRB
		Right cylinder head Engine 276.8 in model 205, 253	AR01.30-P-5780MMV
		Left cylinder head Engine 276.8 in model 205, 253	AR01.30-P-5770MMV
		Right cylinder head Engine 177 in model 205	AR01.30-P-5780MNA
		Left cylinder head Engine 177 in model 205	AR01.30-P-5770MNA
9	Install in the reverse order.

Fig 1: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
