Remove/Install Front Seat Backrest Padding - AR91.10-P-0003CLW
Model 205.3/4 except code 555 (AMG-Performance Seat)
Model 238
| Remove | |||
| 1 | Remove seat backrest trim. | AR91.10-P-1912CLW | |

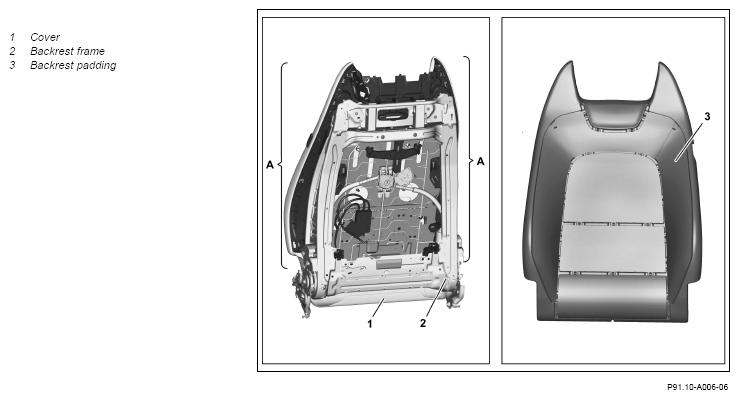

| 2 | Unhook clamping strip of cover (1) from seat backrest frame (2) at rear in area of cutout for head restraint. | Fig 2 | |
| 3 | Unhook clamping strips of cover (1) from seat backrest frame (2) at rear (areas A). | Fig 2 | |
| 4 | Disconnect electrical connector of seat backrest seat ventilation motors and expose electric lines. | Model 205.3/4 with code 401 (Climatized front seats) except code 555 (AMG-Performance Seat) Model 238 with code 401 (Climatized front seats) |
|
| 5 | Disconnect electrical connector for seat heating. | Model 205.3/4 with code 401 (Climatized front seats) except code 555 (AMG-Performance Seat) Model 205.3/4 with code 873 (Left and right driver's seat heating) except code 555 (AMG-Performance Seat) Model 238 with code 401 (Climatized front seats) Model 238 with code 873 (Left and right driver's seat heating) Model 238 with code 902 (Seat heater Plus for driver and front passenger) |
|
| 6 | Slip cover (1) over seat backrest frame (2). | ||
| 7 | Unhook outer staple wires of cover (1) at catch hooks of seat backrest frame (2). | Fig 3 | |
| 8 | Remove seat backrest padding (3) with cover (1) from seat backrest frame (2). | ||
| 9 | Remove seat ventilation motors. | Model 205.3/4 with code 401 (Climatized front seats) except code 555 (AMG-Performance Seat) Model 238 with code 401 (Climatized front seats) When replacing the seat backrest padding (3). |
|
| AR91.30-P-1900LW | |||
| 10 | Remove cover (1). | When replacing the seat backrest padding (3). | AR91.18-P-1820CLW |
| Install | |||
| 11 | Install new heat mat. | Model 205.3/4 with code 401 (Climatized front seats) except code 555 (AMG-Performance Seat) Model 205.3/4 with code 873 (Left and right driver's seat heating) except code 555 (AMG-Performance Seat) Model 238 with code 401 (Climatized front seats) Model 238 with code 873 (Left and right driver's seat heating) Model 238 with code 902 (Seat heater Plus for driver and front passenger) When replacing the seat backrest padding (3). |
|
| AR91.30-P-0014LW | |||
| 12 | Install cover (1). | When replacing the seat backrest padding (3). | AR91.18-P-1820CLW |
| 13 | Install seat ventilation motors. | Model 205.3/4 with code 401 (Climatized front seats) except code 555 (AMG-Performance Seat) Model 238 with code 401 (Climatized front seats) When replacing the seat backrest padding (3). |
|
| AR91.30-P-1900LW | |||
| 14 | Align seat backrest padding (3) with cover (1) on seat backrest frame (2). | ||
| 15 | Connect electrical connector for seat heating. | Model 205.3/4 with code 401 (Climatized front seats) except code 555 (AMG-Performance Seat) Model 205.3/4 with code 873 (Left and right driver's seat heating) except code 555 (AMG-Performance Seat) Model 238 with code 401 (Climatized front seats) Model 238 with code 873 (Left and right driver's seat heating) Model 238 with code 902 (Seat heater Plus for driver and front passenger) |
|
| 16 | Route electric line of seat ventilation motors for seat backrest, fix in place and connect its electrical connector. | Model 205.3/4 with code 401 (Climatized front seats) except code 555 (AMG-Performance Seat) Model 238 with code 401 (Climatized front seats) |
|
| 17 | Hook in outer staple wires of cover (1) at catch hooks of seat backrest frame (2). | Fig 3 | |
| 18 | Hook in clamping strips of cover (1) at seat backrest frame (2) at rear (areas A). | Fig 2 | |
| 19 | Hook in clamping strip of cover (1) at seat backrest frame (2) at rear in area of cutout for head restraint. | Fig 2 | |
| 20 | Install seat backrest trim. | AR91.10-P-1912CLW |
