Remove/Install Front Backrest Seat Ventilation Motors - AR91.30-P-1900LW

Model 205

with code 401

Model 213

with code 401

Model 238

with code 401

Model 253, 293

with code 401

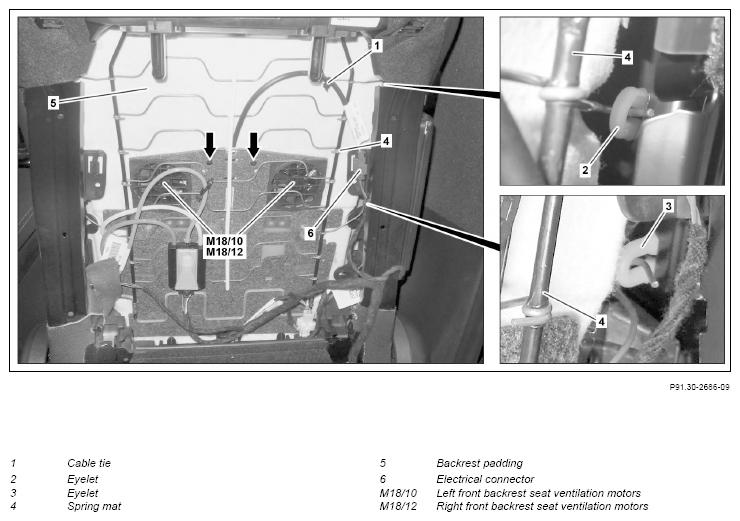

Fig 1: Front Backrest Seat Ventilation Motors Components Location - Model 205 With Code 401

Courtesy of MERCEDES-BENZ USA

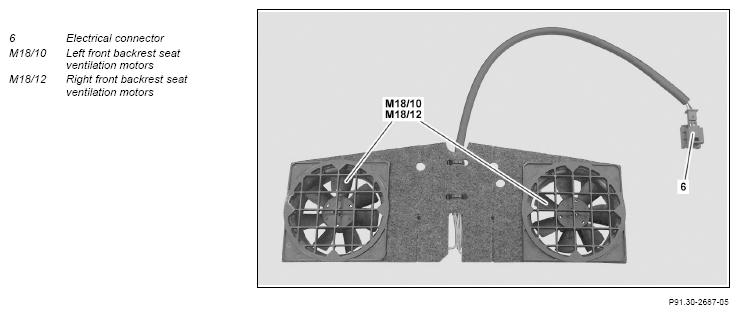

Shown on Model 205.0

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove seat backrest trim at seat backrest.	Model 205.0/1/2 with code 401 (Climatised Front Seats) except code 555 (AMG Performance Seats) Model 213 with code 401 (Climatised Front Seats) except code 555 (AMG Performance Seats) Model 253 with code 401 (Climatised Front Seats) except code 555 (AMG Performance Seats) Model 293 with code 401 (Climatised Front Seats)	AR91.10-P-1912LW
		Model 205.3/4 with code 401 (Climatised Front Seats) except code 555 (AMG Performance Seats) Model 238 with code 401 (Climatised Front Seats)	AR91.10-P-1912CLW
2	Remove cable tie (1).	Replace the cable tie (1).
3	Disconnect electrical connection (6).
4	Release plug housing of electrical connector (6) on seat backrest frame and remove.
5	Unhook spring mat (4) on one side from eyelets (2, 3).
6	Unclip left front seat backrest seat ventilation motors (M18/10) or right front seat backrest seat ventilation motors (M18/12) from seat backrest padding (5) (arrows).
7	Lift spring mat (4) and remove left front seat backrest seat ventilation motors (M18/10) or right front seat backrest seat ventilation motors (M18/12).	Observe routing of electrical wiring harness.
8	Install in the reverse order
