Remove/Install Front Seat Backrest Cover - AR91.18-P-1820CLW
Model 205.3/4
except code 555 (AMG-Performance Seat)
Model 238
| Remove | |||

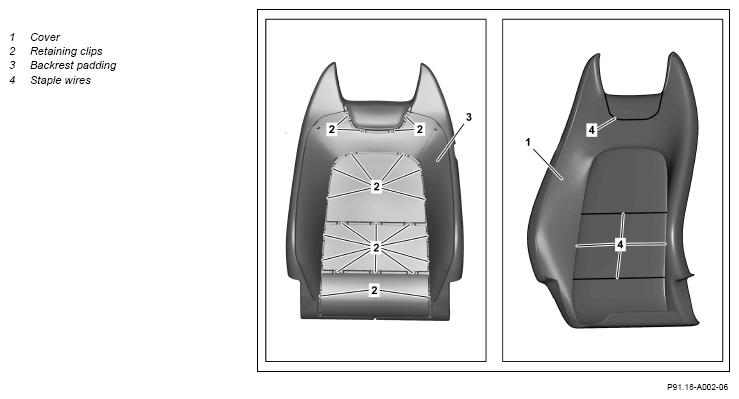

| 1 | Remove seat backrest padding (3) with cover (1). | AR91.10-P-0003CLW | |
| 2 | Release cover (1) at sides of seat backrest padding (3) and turn inside out. | ||
| 3 | Unclip staple wires (4) from retaining clips (2). | Dismantling tool |
Fig 2 |
| 4 | Remove cover (1) from seat backrest padding (3). | ||
| Install | |||
| 5 | Position cover (1) centrally on seat backrest padding (3) and align seams of cover (1) in notches of seat backrest padding (3). | ||
| 6 | Clip upper staple wire (4) into retaining clips (2) at seat backrest padding (3). | Dismantling tool |
Fig 2 |
| 7 | Check alignment of cover (1). | ||
| 8 | Clip remaining staple wires (4) into retaining clips (2) on seat backrest padding (3) starting from the inside working outwards. | Dismantling tool |
Fig 2 |
| 9 | Pull cover (1) over seat backrest padding (3). | ||
| 10 | Install seat backrest padding (3) with cover (1). | AR91.10-P-0003CLW |
