Remove/Install Tension Cable Of Roof Lining - AR68.30-P-4303LWR
Model 205.4, 238.4
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Check | |||

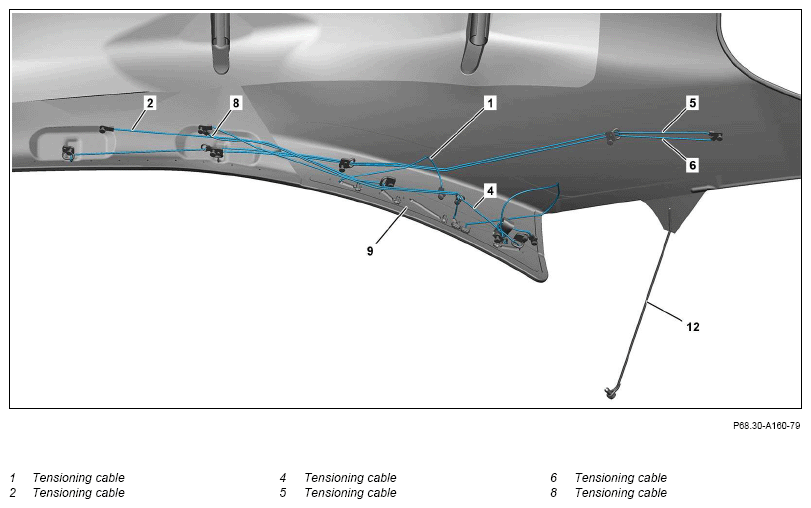

| 1 | Perform test of soft top mechanical components and check tensioning cables (1, 2, 3, 4, 5, 6, 7, 8) for damage. | Always complete the work described on one side of the vehicle first. Otherwise, the tensioning cables (1, 2, 3, 4, 5, 6, 7, 8) will possibly be routed incorrectly, as the assembled side of the vehicle is to be used as a reference. If damage is present, ↓ Replace respective tensioning cables (1, 2, 3, 4, 5, 6, 7, 8). |
|
| Remove/install tensioning cables (1, 2, 3, 4, 5, 6, 7, 8) | |||

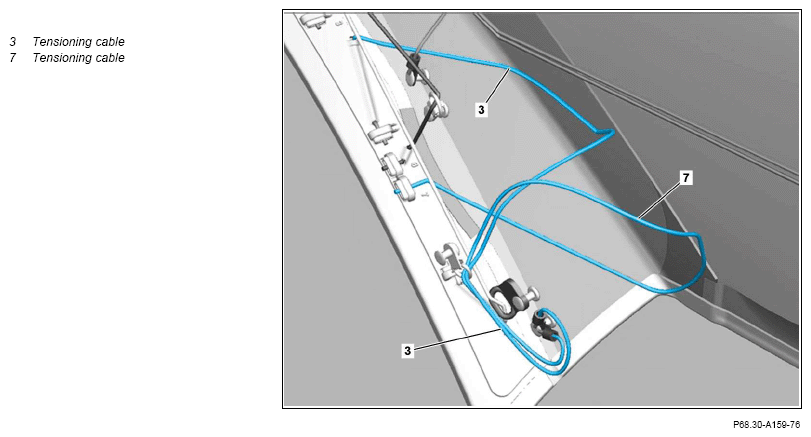

| 2 | Remove and route tensioning cable (7). | AR68.30-P-4303-01A | |
| 3 | Remove and route tensioning cables (4, 8). | AR68.30-P-4303-01B | |
| 4 | Remove and route tensioning cable (2). | AR68.30-P-4303-01C | |
| 5 | Remove and route tensioning cable (1). | AR68.30-P-4303-01D | |
| 6 | Remove and route tensioning cable (5). | AR68.30-P-4303-01E | |
| 7 | Remove and route tensioning cable (6). | AR68.30-P-4303-01F | |
| 8 | Remove and route tensioning cable (3). | AR68.30-P-4303-01G | |
| Check | |||
| 9 | Perform test of soft top mechanical components and check roof lining is correctly seated when soft top is closed. |
