Remove And Route Tension Cables Of Headliner - AR68.30-P-4303-01F

Model 205.4, 238.4

Tensioning cable number 6

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

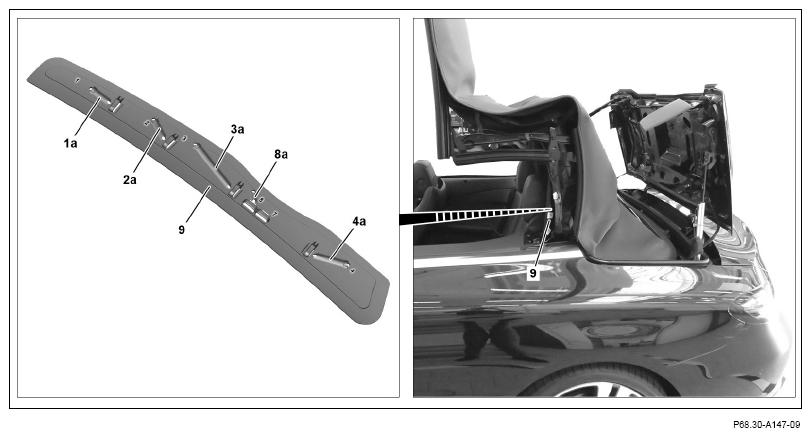

1. Move soft top to repair position R5.
2. Knock off rivet (5b) and remove rest of rivet.

   If tensioning cable (5) is not to be replaced.

   Tensioning cable (5) and tensioning cable (6) are fastened together at rivet (5b).

3. Guide tensioning cable (6) out of eyelets.

   If necessary, mark routing of tensioning cable (6).

4. Press tensioning cable (6) out of guide in roof lining using a suitable tool and cut off clamping ring (14).
5. Remove tensioning cable (6) from guide in roof lining.
6. Insert cutting wire through guide in roof lining and fasten new tensioning cable (6) at open end.

   Use a round cutting wire.

   New tensioning cable (6) has a blue/yellow marking on ring eyelet.

7. Pull new tensioning cable (6) using cutting wire through guide in roof lining.

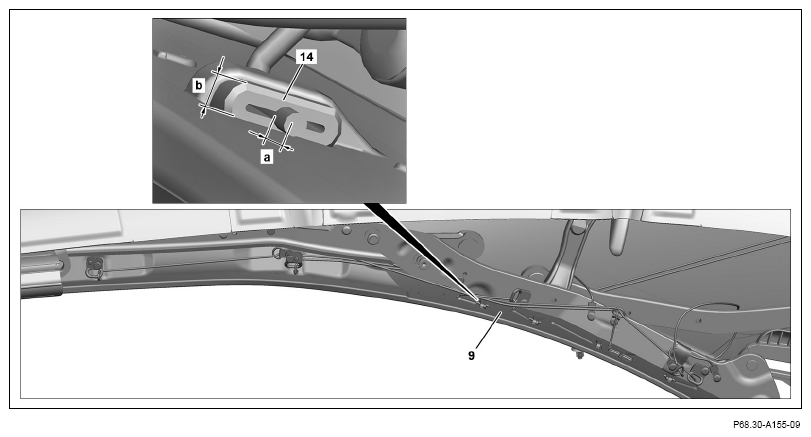

8. Press clamping ring (14) onto new tensioning cable (6) using a suitable tool and install in guide in roof lining.

   Press clamping ring (14) so that dimension "a" is 3.5 ± 0.5 mm and dimension "b" is 3.75 ± 0.25 mm.

9. Route new tensioning cable (6) according to previously applied markings.

   Check tensioning cable (6) is routed correctly.

10. Rivet ring eyelet of new tensioning cable (6).

    Before riveting, ensure that tensioning cable (6) is not twisted, crossed, or offers excessive resistance.

    Otherwise the roof lining will be damaged when actuating the soft top mechanical components.
