Check Oil Level In Rear Axle Differential, Correct If Necessary - AR35.31-P-0520-08MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 139, 260, 282, 654
with code M005 (Vehicles with 4MATIC/all-wheel drive)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A |
MODIFICATION NOTES
| 13.02.2020 | Rear axle differential filling capacity | Model 118 (except 118.353/354/653/654) Model 177 (except 177.053/054) Model 247 (except 247.753/754) | BF35.31-P-1001-02F |
| 13.02.2020 | Full set of rear axle gears | Model 118 (except 118.353/354/653/654) Model 177 (except 177.053/054) Model 247 (except 247.753/754) | BF35.31-P-1001-02F |
REAR AXLE GEAR
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA35.31-P-1005-07A | Filling screw/drain screw to housing cover at front/side | Nm | 35 | 35 |
REAR AXLE GEAR
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA35.31-P-1005-07A | Filling screw/drain screw to housing cover at front/side | Nm | 35 |
REAR AXLE GEAR
| Number | Designation | Model 118 (except 118.353/354/653/65 4) Model 177 (except 177.053/054) Model 247 (except 247.753/754) | Model 118.353/354/653/65 4 Model 177.053/054 Model 247.753/754 | ||
|---|---|---|---|---|---|
| BF35.31-P-1001-02F | Rear axle differential filling capacity | Rear axle differential 150 | Liter | 0, 6 | - |
| Specified gear oils - overview | BB00.40-P-0231-01A | - | |||
| Approved axle gear oils | BB00.40-P-0235A | - | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1061-01A | Sealant, Omnifit 100H (50 g) | A 002 989 23 71 |

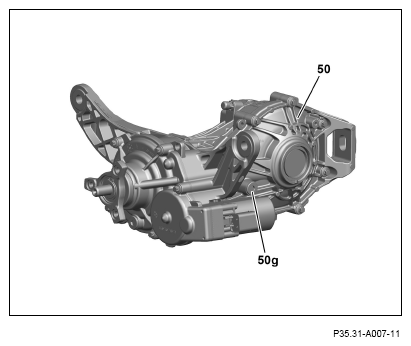

Check oil level at room temperature only and not when the rear axle differential (50) is at operating temperature. Otherwise required oil could escape when the rear axle differential (50) is at operating temperature.
Cleaning
- Clean area around oil filler screw (50 g).
- Remove oil filler screw (50 g).
Check
- Check and correct oil level
.
With the correct oil level the oil reaches up to the bottom edge of the threaded hole.
If necessary add oil or drain off oil until the oil only drips out of the threaded hole.
Cleaning
- Clean oil filler screw (50g) and threaded hole in rear axle differential (50) with cleaning spray.
Replace oil filler screw (50 g).
The oil filler screw (50g) and tapped hole must be free from oil and grease.
- Apply one drop of to lower third of thread of oil filler screw (50g).
- Screw oil filler screw (50g) immediately into the rear axle differential (50) and tighten to the specified tightening torque
.
