Disassemble/Assemble Transmission Housing - AR27.40-P-0510MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.1 in model 118, 177, 247

MODIFICATION NOTES

10.01.2020 Work procedure in document adapted.

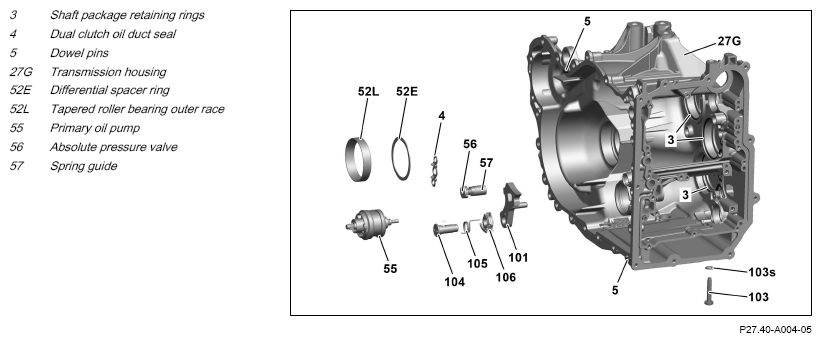

G16049727Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
DISASSEMBLING Disassemble
1 Disassemble automatic transmission and remove transmission housing (27G) from shaft set.   AR27.10-P-0510MFA
2 Remove parking lock mechanism.   AR27.60-P-0950MFA
3 Remove absolute pressure valve (56) and spring guide (57) from transmission housing (27G).
4 Remove primary oil pump (55). IMPORTANT Replace the primary oil pump (55). AR27.10-P-0400MFA
5 Remove radial shaft sealing rings from axle shafts.   AR27.40-P-0211MFA
6 Remove tapered roller bearing outer race (52L) of differential and take differential spacer ring (52E) out of transmission housing (27G).   AR27.40-P-0510-01MFA
    Assembly cleaner *BR00.45-Z-1028-04A
    SPECIAL TOOL Internal extractor Fig 1
    SPECIAL TOOL Countersupport Fig 2
7 Remove shaft package retaining rings (3).
8 Remove dowel pins (5) from transmission housing (27G). Only if transmission housing (27G) is to be replaced.
INSPECT Check
9 Check absolute pressure valve (56) and spring guide (57) for damage. If absolute pressure valve (56) or spring guide (57) is damaged
↓
replace absolute pressure valve (56) and spring guide (57).
10 Check dual clutch oil duct seal (4) for damage. If the dual clutch oil duct seal (4) is damaged
↓
Replace dual clutch oil duct seal (4).
ASSEMBLING Assemble
11 Moisten all parts with transmission oil.
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluids (ATF) (specification 236.22)   BB00.40-P-0236-22A
MEASURING Measure
12 Measure and adjust preload of differential tapered roller bearings.   AR27.50-P-0570-03MFA
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    Loctite 7200 *BR00.45-Z-1038-04A
    SPECIAL TOOL Parallel support Fig 4
    SPECIAL TOOL Support fixture Fig 5
13 Install shaft package retaining rings (3). IMPORTANT Replace shaft package retaining rings (3).
14 Insert differential spacer ring (52E) into transmission housing (27G) and install tapered roller bearing outer race (52L) of differential. IMPORTANT Replace tapered roller bearing outer race (52L) of differential. AR27.40-P-0510-02MFA
    SPECIAL TOOL Insertion tool Fig 3
15 Install parking lock mechanism.   AR27.60-P-0950MFA
16 Install primary oil pump (55). IMPORTANT Replace the primary oil pump (55). AR27.10-P-0400MFA
17 Install dowel pins (5) in transmission housing (27G). Only if transmission housing (27G) has been replaced.
18 Install radial shaft sealing ring of axle shafts.   AR27.40-P-0211MFA
19 Install absolute pressure valve (56) and spring guide (57) in transmission housing (27G). NOTES The spring guide (57) on the absolute pressure valve (56) must point toward the clutch housing when inserted into the transmission housing (27G).
If the absolute pressure valve (56) is inserted incorrectly, the park pawl will be damaged and will break during commissioning
IMPORTANT Observe installation position of absolute pressure valve (56) and spring guide (57).
20 Attach transmission housing (27G) to shaft set and assemble automatic transmission.   AR27.10-P-0510MFA
Fig 1: Identifying Internal Extractor (000 589 68 33 00)
G10250293Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Countersupport (000 589 35 33 00)
G10250296Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Insertion Tool (724 589 01 35 00)
G14688657Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Parallel Support (168 589 03 21 00)
G12817089Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Support Fixture (724 589 05 31 00)
G14688664Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
BR00.45-Z-1038-04A Loctite 7200 A 010 989 90 71
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
