Remove/Install Transmission Oil Pump - AR27.10-P-0400MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.1 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||

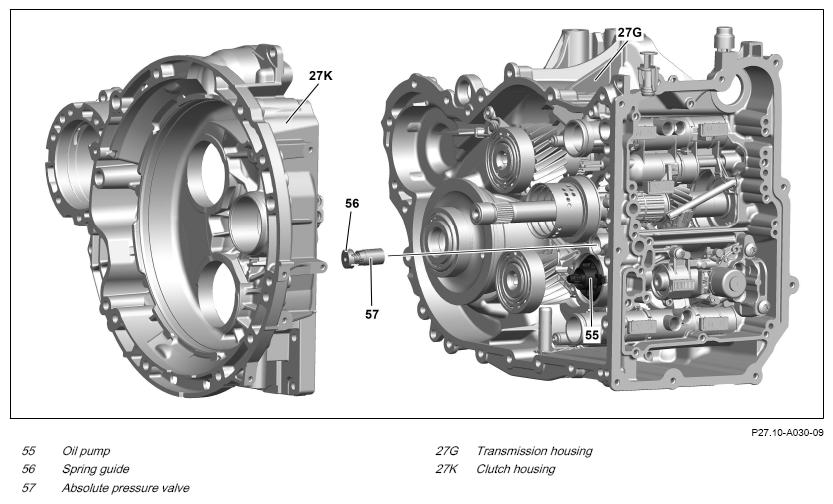

| 1 | Remove transmission housing (27G) from clutch housing (27K). | AR27.10-P-0510MFA | |
| 2 | Remove absolute pressure valve (57) and spring guide (56) from transmission housing (27G). | ||
| 3 | Check absolute pressure valve (57) and spring guide (56) for damage. | If absolute pressure valve (57) or spring guide (56) is damaged ↓ replace absolute pressure valve (57) and spring guide (56). |
|
| 4 | Remove oil pump (55). | AR27.10-P-0400-02MFA | |
| Automatic transmission fluids (ATF) (specification 236.22) | BB00.40-P-0236-22A | ||
| Fig 2 | |||
| Fig 3 | |||
| Fig 4 | |||
| 5 | Install in the reverse order. |
