Remove/Install Park Pawl Mechanism - AR27.60-P-0950MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.1 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||

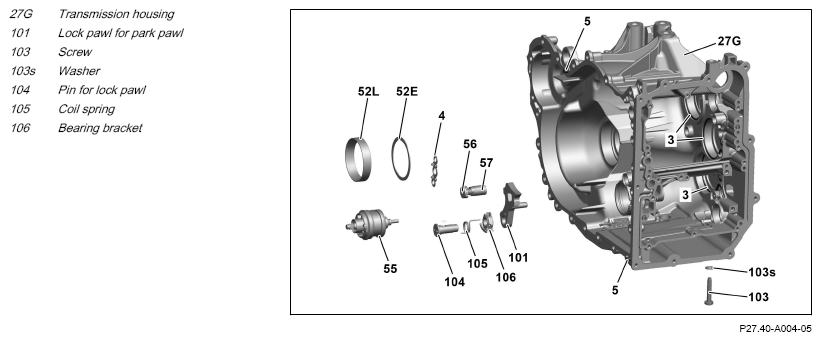

| 1 | Pry transmission housing (27G) off clutch housing and remove. | AR27.10-P-0510MFA | |
| 2 | Unscrew screw (103) and remove with washer (103s). | ||
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA27.10-P-1010-06C | |||
| 3 | Remove bolt for locking pawl (104) together with coil spring (105), bearing bracket (106) and park pawl locking pawl (101) from transmission housing (27G). | ||
| Clean | |||
| 4 | Clean all components and check for wear and damage. | Assembly cleaner If wear or damage occurs ↓ replace affected components. |
*BR00.45-Z-1028-04A |
| 5 | Install in the reverse order. |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 724.1 | ||
|---|---|---|---|---|
| BA27.10-P-1010-06C | Screw, locking pawl bearing bracket to transmission housing | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
