Disassemble/Assemble Input Shaft - AR27.50-P-0550MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Disassemble | |||
| 1 | Disassemble transmission. | AR27.10-P-0510MFC | |

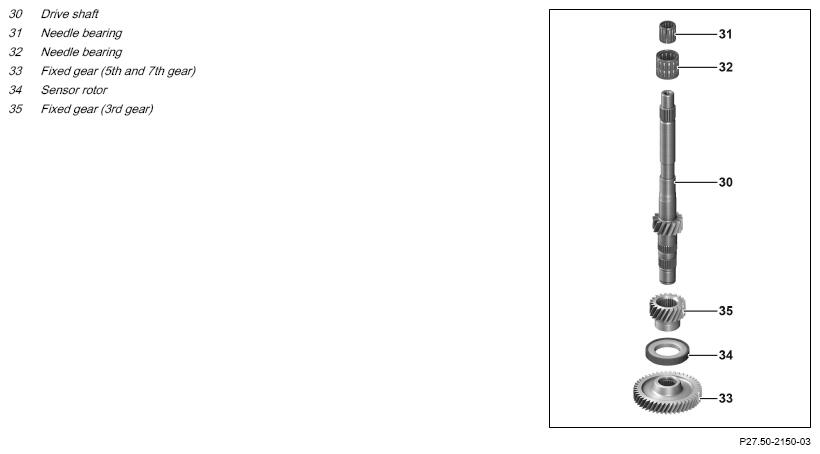

| 2 | Unclip needle bearing (31) and detach from drive shaft (30). | ||
| 3 | Detach needle bearing (32) from drive shaft (30). | ||
| Check | |||
| 4 | Check needle bearing (31, 32) for damage and wear, replace if necessary. | ||
| 5 | Using suitable tool, pry off fixed gear (33) from drive shaft (30). | ||
| 6 | Pry off fixed gear (35) together with sensor rotor (34) from drive shaft (30). | ||
| 7 | Pry off sensor rotor (34) from fixed gear (35). | Fig 2 | |
| Assemble | |||
| 8 | Press sensor rotor (34) flush onto notching on the gear (35). | Fig 1 | |
| 9 | Press sensor rotor (34) with fixed gear (35) onto drive shaft (30). | Fig 3 | |
| 10 | Press fixed gear (33) onto drive shaft (30). | Fig 3 | |
| 11 | Slide needle bearing (32) onto drive shaft (30). | ||
| 12 | Slide needle bearing (31) onto drive shaft (30) and clip into place. | ||
| 13 | Press deep-groove ball bearing onto drive shaft (30). | ||
| 14 | Assemble transmission. | AR27.10-P-0510MFC |
