Retrofit Rear Mercedes-Benz Dashcam With Existing Front Dashcam - AZ54.71-P-0003MFR

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove A-pillar trim on front passenger side.
			AR68.30-P-4050MFA
2	Remove front door sill on passenger side.
			AR68.30-P-4101MFA
3	Fold back passenger-side floor covering.
4	Remove upper B-pillar trim on front passenger side and place to one side with attached seat belt.
			AR68.30-P-4705MFA
5.1	Remove rear grab handle from roof on front passenger side.	On vehicles without code 413 (Panoramic sliding roof/glass roof)
			AR68.30-P-4330MFA
5.2	Remove coat hook at rear of roof on front passenger side.	On vehicles with code 413 (Panoramic sliding roof/glass roof)
			AR68.30-P-4300MFV
6	Remove trim from front passenger side C-pillar.
			AR68.30-P-4490MFV
7	Remove overhead control panel control unit (N70).
			AR82.20-P-1000MFA
	Install

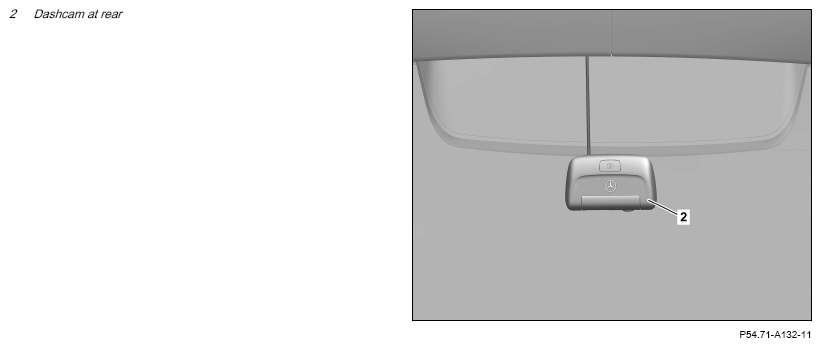

8	Retrofit mount of rear dashcam (2).	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. During the first hour avoid the application of any mechanical load. Otherwise adhesion problems may occur.	AZ54.71-P-0003-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
9	Remove cover of rain and light sensor with additional functions (B38/2).
			AR82.30-P-7801MFA
10	Remove sun visor on front passenger side.
			AR68.60-P-5480MFA
11	Remove holder from sun visor on driver's side.
			AR68.60-P-5480MFA
12	Remove additional brake lamp.
			AR82.10-P-5376MFV
13	Detach front and rear edge guard on front passenger side in area of roof lining.
14	Release front and rear roof lining on front passenger side.
	Install
15	Retrofit wiring harness for dashcam.		AZ54.71-P-0003-01MFR
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
16	Latch dashcam at rear (2) into dashcam mount opposite direction of arrow on eject button.	Installation of the rear dashcam (2) should take place, at the earliest, an hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.
17	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
18	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
19	Attach "Mercedes-Benz rear dashcam retrofitted as per AZ54.71-P-0003MFR" note under field organization texts to DG 54, DG 67 and DG 68.
	Check
20	Perform function test.	See Owner's Manual.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1144-02A	Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	A 008 989 50 85 09

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see XPPI)	Dashcam parts kit	1
