Retrofit Rear Mercedes-Benz Dashcam Mount - AZ54.71-P-0003-00LWE

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 167, 177.0/1, 205, 206, 213, 222, 223, 238.3, 247, 253, 257

Model 463

as of model year 2019

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

The next steps are shown on model 213.

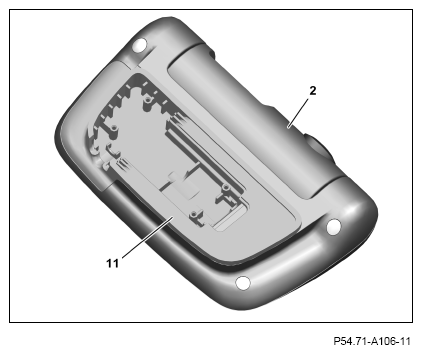

Fit rear dashcam (2) on rear dashcam mount (11) and engage.

Courtesy of MERCEDES-BENZ USA
Model 118.6, 167, 177.0, 205, 206.0/1, 213, 238.3, 247, 253.9, 257 Model 463
as of model year 2019

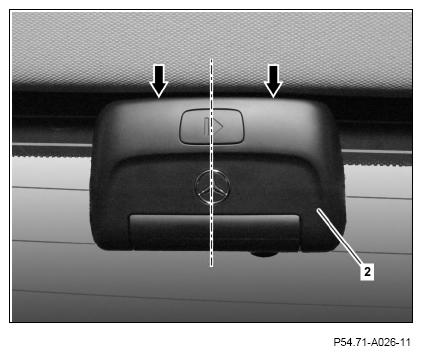

Align rear dashcam (2) in center of rear window.

For this, the rear dashcam (2) must make contact with the roof lining (arrows).

Courtesy of MERCEDES-BENZ USA
Model 118.3, 177.1, 222, 223, 253.3

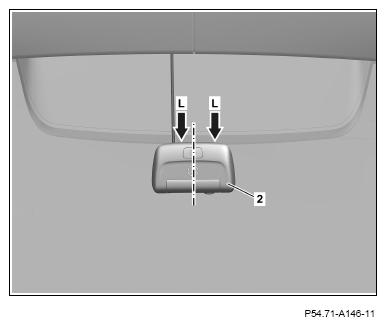

Align rear dashcam (2) with center of additional brake lamp.

The rear dashcam (2) must make contact with the additional brake lamp (arrows L).

Courtesy of MERCEDES-BENZ USA
Model 206.2

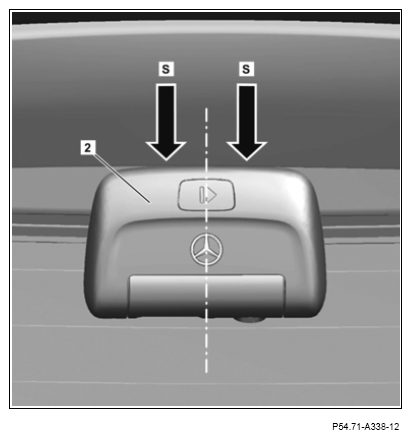

Align rear Dashcam (2) to liftgate trim at top in center.

When doing so, the rear Dashcam mount must not abut the liftgate trim at the top (arrows S).

Courtesy of MERCEDES-BENZ USA
Model 463 as of model year 2019

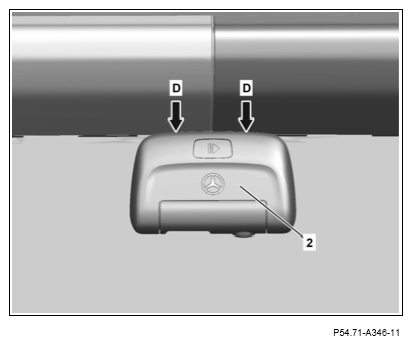

Align rear dashcam (2) with center of rear-end door window lining.

When doing so, the rear dashcam (2) must make contact with the rear-end door window lining (arrows D).

Courtesy of MERCEDES-BENZ USA

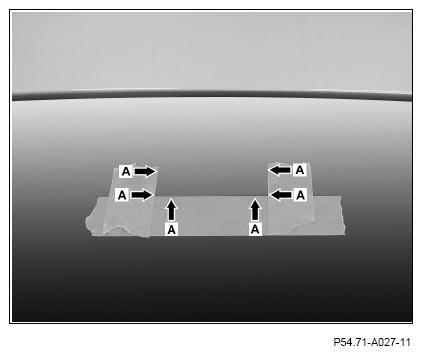

On the outer side of the rear window, mark the position of the outer edges (arrows A) of the rear Dashcam mount with adhesive tape.

Aid of helper required.

Courtesy of MERCEDES-BENZ USA
Clean inner rear window in cross-hatched area.
Shown on model 213

Courtesy of MERCEDES-BENZ USA

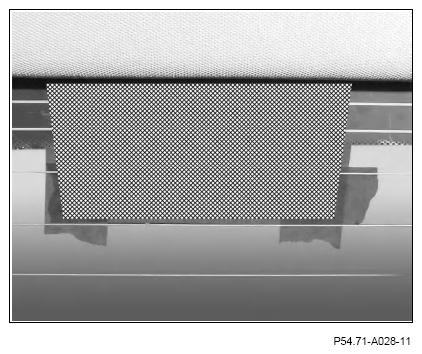

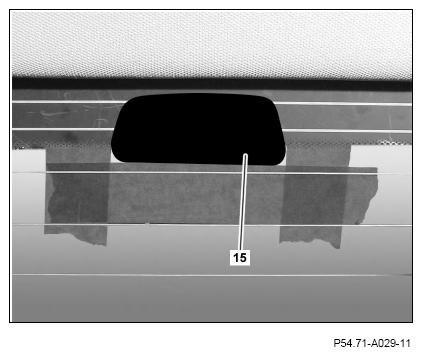

Glue covering foil (15) on inside of rear window as per the markings applied from outside.

Remove protective foil of covering foil (15) at an angle of 180°.

Before gluing, observe a flash-off time of 1 min after cleaning.

There must be no gap visible between the screen print on rear window and the covering foil (15).
Remove any air bubbles under the covering foil (15) to the side by hand.
Press on covering foil (15) firmly.
Clean glued-on covering foil (15).
Remove markings on outer rear window.

Courtesy of MERCEDES-BENZ USA

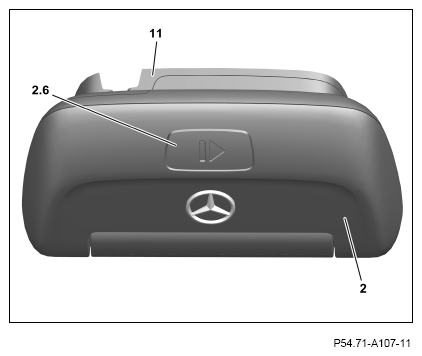

Press Eject button (2.6) on rear Dashcam (2).
Pull off rear Dashcam (2) in the direction of the arrow on the Eject button (2.6) from rear Dashcam mount (11).

Courtesy of MERCEDES-BENZ USA

The next steps are to be performed after routing the Dashcam wiring harness.

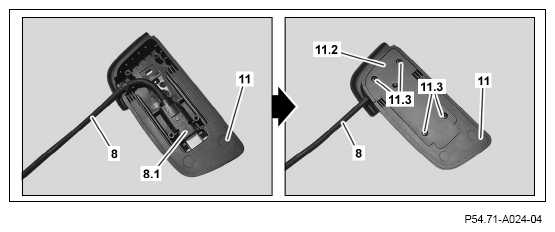

Position black plug (8.1) of Dashcam wiring harness (8) in rear Dashcam mount (11).

The black plug (8.1) is coded and can only be installed in one position.
Fit cover (11.2) onto rear Dashcam mount (11).
Screw in screws (11.3).

Courtesy of MERCEDES-BENZ USA

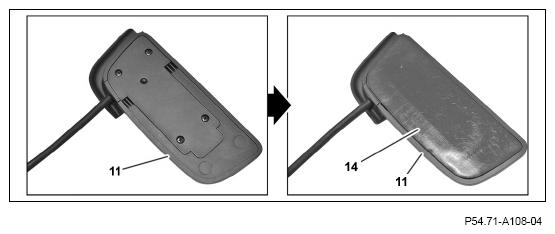

Clean surface of rear Dashcam mount (11) on which the adhesive film (14) is glued.

Remove yellow protective foil of adhesive film (14) at an angle of 180°.

Before gluing, observe a flash-off time of 1 min after cleaning.
Glue adhesive film (14) onto rear Dashcam mount (11) and press on firmly.

Courtesy of MERCEDES-BENZ USA
Pull red protective foil of adhesive film from rear Dashcam mount (11).

Pull off red protective foil at an angle of 180°.

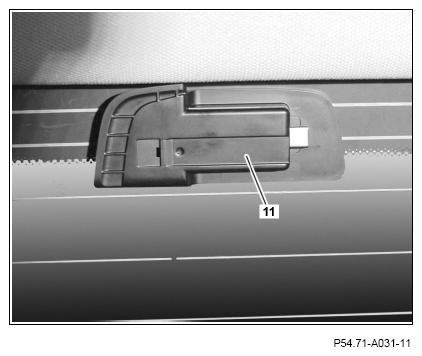

Stick rear Dashcam mount (11) in correct position on covering foil that has already been glued on and press on firmly.
When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. During the first hour avoid the application of any mechanical load.

Otherwise adhesion problems may occur.

Courtesy of MERCEDES-BENZ USA
