Retrofit Front Mercedes-Benz Dashcam - AZ54.71-P-0002MFR

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove A-pillar trim on front passenger side.
			AR68.30-P-4050MFA
2	Remove vehicle interior fuse and relay module (F152/4).
		Do not loosen electrical connectors on rear side.	AR54.15-P-1312MFA
3	Remove upper B-pillar trim on front passenger side and place to one side with attached seat belt.
			AR68.30-P-4705MFA
4	Remove overhead control panel control unit (N70).
			AR82.20-P-1000MFA
	Install
5	Retrofit mount of front dashcam (1).	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. During the first hour avoid the application of any mechanical load. Otherwise adhesion problems may occur.	AZ54.71-P-0001-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
6	Remove cover of rain and light sensor with additional functions (B38/2).
			AR82.30-P-7801MFA
7	Remove sun visor on front passenger side.
			AR68.60-P-5480MFA
8	Remove holder from sun visor on driver's side.
			AR68.60-P-5480MFA
9	Detach front and rear edge guard on front passenger side in area of roof lining.
10	Release roof lining at front on front passenger side.
	Install
11	Retrofit wiring harness for dashcam.	Vehicles with code 409 (Front left and right multicontour seat) with code U22 (Lumbar support adjustment)	AZ54.71-P-0002-01MFR
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Vehicles except code 409 (Front left and right multicontour seat) except code U22 (Lumbar support adjustment)	AZ54.71-P-0002-01MFS
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A
		Right front footwell ground point	*BA00.19-P-1019-02E
		Wiring harness repair kit, basic	Fig 2
		New passenger car wiring harness repair kit	Fig 1

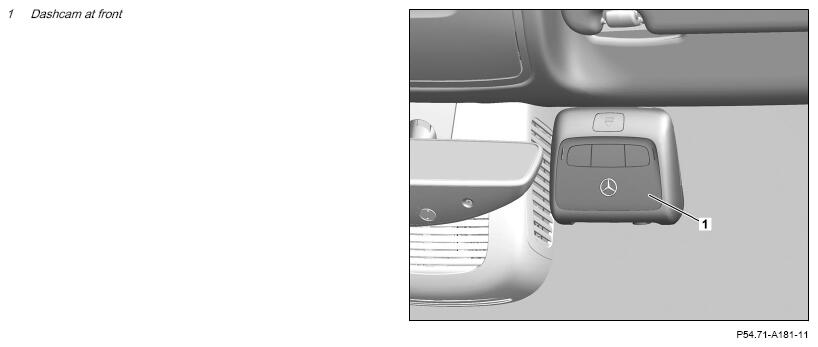

12	Latch dashcam at front (1) into dashcam mount opposite direction of arrow on eject button.	Installation of the front dashcam (1) should take place, at the earliest, an hour after gluing on the dashcam mount. Otherwise, the dashcam mount may work its way loose.
13	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
14	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
15	Attach "Mercedes-Benz front dashcam retrofitted as per AZ54.71-P-0002MFR" note under field organization texts to DG 54, DG 67 and DG 68.
	Check
16	Perform function test.	See Owner's Manual.

GROUND POINTS

Number	Designation				Model 118
BA00.19-P-1019-02E	Right front footwell ground point	W15	M6	Nm	10

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1144-02A	Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	A 008 989 50 85 09

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see XPPI)	Dashcam parts kit	1
