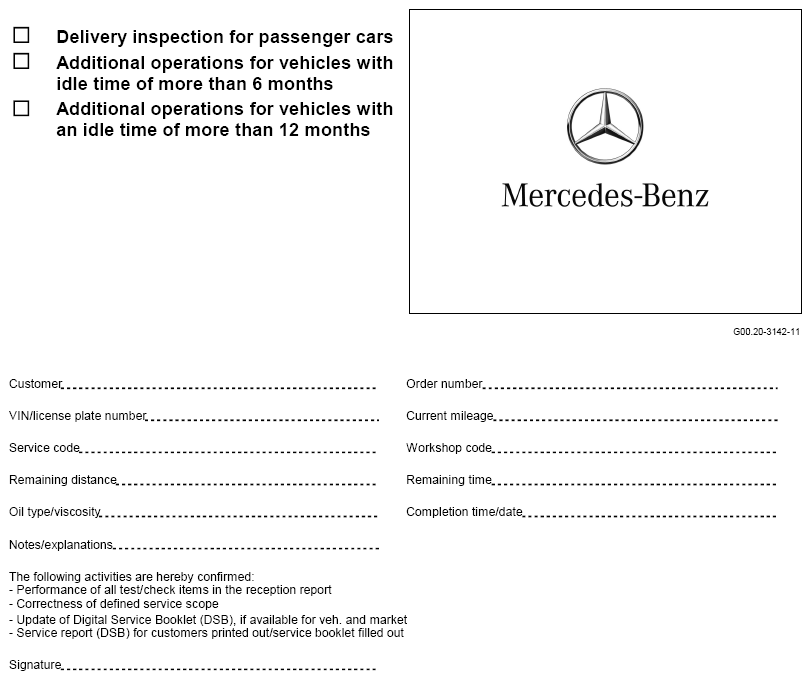

Carry Out Delivery And Hand Over Control - AP00.20-P-1100B

Model 117, 118, 156, 166, 167, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 247, 253, 257, 290, 292, 293, 461, 463

Courtesy of MERCEDES-BENZ USA

A	Z6	Z12		Input condition not OK:	ⓧ
Completed
[X]	[X]	[X]
↓	↓	↓			↓
			Genera
□			The event log "Perform delivery inspection for new vehicles" is available in completed form.	...............	◦
				Model 117, 118, 156, 166, 167, 172, 176, 177, 205, 213, 217, 222, 231, 238, 247, 253, 257, 290, 292, 293, 461, 463 The event log "Perform delivery inspection for new vehicles" is processed in the upstream sales or logistics department. There must be no unresolved problems.		AP00.20-P-1101A
□			The car delivery inspection is available on the information and communications platform (I&C platform as an app in the Retail Portal).	...............
				Only for Germany. Under "Search" enter the term "Delivery inspection". All documents marked with a green box are valid. To be performed by the service advisor.  http://retailportal.i.daimler.com  Only carry out delivery inspection shortly before vehicle hand over.
□			Check vehicle for any unresolved service measures.	...............	◦
				To be performed by the service advisor.  If problems are determined, ↓ conduct unresolved service measures After obtaining special order.
□			Confirm verification of delivery inspection in DSB (Digital Service Booklet).	...............
				Only in markets with DSB. To be performed by the service advisor.
□			If the vehicle needs to be moved, pay attention to engine and Transmission operation	...............	◦
				If problems are determined, ↓ Perform fault detection and extended diagnosis After obtaining special order.
			Vehicle exterior, body (cleaned, transport protection removed)
□			Check condition of wiper blades and wiping pattern	...............	◦	AP82.30-P-8253G
				If problems are determined, ↓ rectify problem. After obtaining special order.
□			Detach protective foil of maintenance display from wiper blades.	...............
				Vehicle with maintenance display on wiper blades.		AP82.30-P-8253G
□			Fit covers to front towing eyes.	...............
				Model 463.234 with Code ZQ0 (G 500 4x42 )   Model 463.255 with Code MUK2 ((USA or Canada vehicle model designation)   Model 463.276/280 with code P94 (G63 AMG 4X4)2   Model 463 with Code LQ0 (G650 Landaulet)   Covers are included in scope of delivery.
			Engine Compartment
□			Renew brake fluid.	...............
				Model 117, 118, 156, 166, 167, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 247, 253, 257, 290, 292, 293, 461, 463
				Model 117, 156, 176, 242, 246		AP42.00-P-4280AK
			Model 166, 292			AP42.00-P-4280GZ
			Model 167			AP42.00-P-4280F
			Model 172, 231			AP42.00-P-4280V
			Model 118, 177, 247			AP42.00-P-4280E
			Model 190			AP42.00-P-4280B
			Model 197.3/4			AP42.00-P-4280RQ
			Model 204, 205, 207, 212, 218			AP42.00-P-4280EW
			Model 213, 238, 253, 257, 290			AP42.00-P-4280C
			Model 216 Model 221.0/1			AP42.00-P-4280SX
			Model 217, 222			AP42.00-P-4280HA
			Model 293			AP42.00-P-4280G
			Model 463 AP42.00-P-4280D up to model year 2019			AP42.00-P-4280
			Model 463.236/248 AP42.00-P-4280GS with code 979 (Special protection MB Guard)			AP42.00-P-4280
			Model 463 AP42.00-P-4280GA as of model year 2019			AP42.00-P-4280
□			Check engine oil level	...............	◦
				Motor 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 254, 256, 260, 264, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 612, 626, 628, 629, 642, 646, 651, 654, 656 If the engine oil is checked via the instrument cluster, the engine oil temperature must be 60 °C. Otherwise, the measurement may be faulty and an incorrect oil filling capacity may be displayed.		AP18.00-P-1848U
	□		Engine: Change oil and oil filter.	............... Except model 242.890, 253.99, 293		AP18.00-P-1846U
□			Check main circuit coolant level in expansion reservoir.	...............	◦	AP20.30-P-2049U
□			Check low-temperature circuit coolant level in expansion reservoir.	...............	◦
				Model 167, 213, 217, 222, 290 with Motor 177 Model 463 with Motor 177		AP20.30-P-2052F
□			Windshield washer system: Check/correct fluid level.	...............
				When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.		AP82.35-P-8249U
□			Check all visible parts in engine compartment for damage and leaks.	...............	◦
				Model 117, 156, 176, 242, 246		AP00.20-P-0055AK
				Model 166, 292		AP00.20-P-0055D
				Model 167		AP00.20-P-0055H
				Model 172, 197.3/4, 204, 207, 212, 216, 218, 221, 231		AP00.20-P-0055EW
				Model 118, 177, 247		AP00.20-P-0055I
				Model 190		AP00.20-P-0055B
				Model 205		AP00.20-P-0055C
				Model 213, 238, 253 (except 253.99), 257, 290		AP00.20-P-0055E
				Model 217, 222		AP00.20-P-0055A
				Model 253.99		AP00.20-P-0055G
				Model 293		AP00.20-P-0055J
				Model 461		AP00.20-P-0053AB
				Model 463 up to model year 2019		AP00.20-P-0055F
				Model 463 as of model year 2019		AP00.20-P-0055GA
			Tires, brakes
□			Check tire pressure, correct if necessary and enter measurement values in table, except for spare wheel.	...............	◦
				Model 117, 118, 156, 166, 167, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 231, 238, 242, 246, 247, 253, 257, 290, 292, 293 Model 463 as of model year 2019		AP40.15-P-4061A
				Model 461 Model 463 up to model year 2019		AP40.15-P-4060G
□			Assess the condition of the brake discs and enter the evaluation in the table.	...............	◦	AP42.10-P-4249U
□			Tighten the wheel bolts.	...............
				Model 461, 463
□			Attach hubcaps.	...............
				Vehicle with hubcaps. Check hubcaps are correctly positioned relative to valve and that it is securely seated. Check hubcaps are correctly positioned relative to valve and that it is securely seated. Otherwise, the valve will be damaged or the hubcaps will be lost and further material damage may occur
			Underside of vehicle
□			Remove suspension travel limiters.	...............
				Remove suspension travel limiters.
					Model 190	AP32.25-P-3270A
				Model 253.99		AP32.25-P-3270B
□			Check axle portals and axles for leak tightness.	...............	◦
				Model 463.234 with code ZQ0 (G 500 4x42 ) Model 463.255 with code MUK2 (USA or Canada vehicle model designation) Model 463.276/280 with code P94 (G63 AMG 4X42
			Vehicle interior
□			Confirm vehicle hand over in the instrument cluster.	...............
				Only for vehicle with driven distance of 250 km during first month, for stock vehicle as from maintenance message or immediately prior to vehicle hand over to the customer.
□			Check time setting of clock; adjust if necessary.	...............	◦
□			Check horn for proper operation.	...............	◦
□			Check warning and function indicator lamps in instrument cluster.	...............	◦	AP54.30-P-5449U
□	□	□	Check charge level of high-voltage battery.	...............	◦
				Model 118.386/686, 177.086/186, 247.086/786 Model 166.063, 167.117/317, 205.013/047/053/054/147/213/247/253, 213.011/016/050/053/054/153/155/211/216/253, 222.163/173, 242.890, 253.311/353/354/911/953/954 Model 167.154/354 except Code 830 ((China version) Model 167.154/354 with Code 830 ((China version) Model 253.99, 293		SI54.10-P-0024A
			Transport mode
□			Deactivate transport mode and enter remaining service life/standby of battery in table.	...............	◦
				Vehicle with activated transport mode Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292, 293 Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013		AR54.00-P-0001A
				Model 118, 177, 247		AR54.00-P-0001MFA
				Model 167, 213, 238, 257, 290		AR54.00-P-0001LWE
				Model 463 as of model year 2019		AR54.00-P-0001XG
□			Set charge level in "Charge options-Maximum charge level" menu to 100 %	...............
				Model 293
□			Check charge level of on-board electrical system battery using instrument cluster	............... Vehicle without activated transport mode. Model 166.0, 172, 197.3/4, 204, 207, 212, 218, 246 up to model year 20132013 Model 216, 221 If the permissible charge level of the 12 V on-board electrical system battery is exceeded ↓ Charge on-board electrical system battery and then perform a Midtronics test. After obtaining special order.	◦	AR54.10-P-1132A
			Miscellaneous
□			Deactivate transport level.	...............	◦
				Vehicle with activated transport level. Model 222 (except 222.179/187/188) as of model year 2018 except Code 487 (MAGIC BODY CONTROL)		AP32.30-P-3212A
□			Enter any other faults into table.	...............	◦
