Deactivate Transport Mode Prior To Vehicle Delivery - AR54.00-P-0001A

Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292, 293

Model 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246 as of model year 2013

Courtesy of MERCEDES-BENZ USA

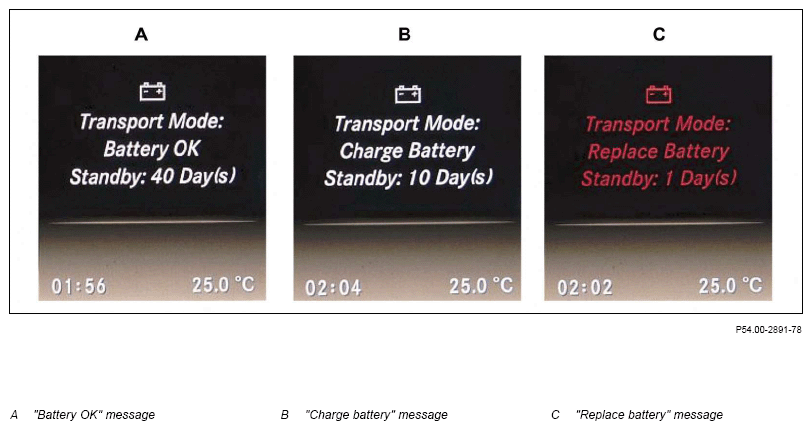

The different system states in the instrument cluster with active transport mode, shown on model 205

	Check
1	Switch on ignition (circuit 15) and check whether "Transport mode" message is shown.	Deactivate the transport mode during the delivery inspection procedure before vehicle hand over to the customer. Ensure that "Battery OK" message (A) is shown before deactivation. Activation is only possible up to a total distance for the vehicle of up to 350 km If the transport mode is no longer active. Activate transport mode again in rear SAM control unit (N10/8) using vehicle diagnosis system in the "Actuation" menu item. Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292   Model 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246 as of model year 2013
		Model 117, 156, 166.8, 176, 218.9, 231, 242, 292   Model 166.0, 172, 197, 204, 207.3/4, 212, 218.3, 246 as of model year 2013	AD00.00-P-2000-04A
		Model 190, 205, 217, 222, 253 Activate transport mode in front central controller unit (N10/6) again using diagnostic system under "Actuation" menu item.   Model 293	AD00.00-P-2000-04B
			AD00.00-P-2000-06FR
2	Charge battery.	If "Charge battery" message (B) is shown.	AR54.10-P-1130RG
		Model 190   Model 197, 204, 207.3/4, 212, 218.3 as of model year 2013   Model 218.9	AR54.10-P-1130CW
		Model 166.0 as of model year 2013   Model 166.8, 292	AR54.10-P-1130GZ
		Model 117, 156, 176, 242   Model 246	AR54.10-P-1130NKB
		Model 172 as of model year 2013	AR54.10-P-1130V
		Model 205, 253, 293 as of model year 2013	AR54.10-P-1130LW
		Model 217, 222	AR54.10-P-1130LF
		Model 231	AR54.10-P-1130RK
3	Replace battery.	If "Replace battery" message (C) is shown. Model 293	AR54.10-P-0005EQ
		Model 190	AR54.10-P-0005RG
		Model 217.3	AR54.10-P-0005LC
		Model 217.4	AR54.10-P-0005LCA
		Model 197 as of model year 2013	AR54.10-P-0005RQ
		Model 172 as of model year 2013	AR54.10-P-0005W
		Model 117, 156, 176, 242   Model 246 as of model year 2013	AR54.10-P-0005NKB
		Model 166.0 as of model year 2013	AR54.10-P-0005GZ
		Model 166.8, 292   Model 204 as of model year 2013	AR54.10-P-0005CW
		Model 205 (except 205.012/047/147/212/247)   Model 253	AR54.10-P-0005LW
		Model 205.047/147/247	AR54.10-P-0005LWA
		Model 205.012/212	AR54.10-P-0005LWH
		Model 207.3/4, 212, 218.3 as of model year 2013	AR54.10-P-0005EW
		Model 218.9 Model 222.020/021/032/033/034/035/064/066/067/082/085   Model 222.083/086/183/186/983/986 except code 810 (Sound system)   Model 222.120/121/123/132/133/134/135/150/155   Model 222.162/163/164/165/166/167/182/184/185   Model 222.173 with code ME05 (Hybrid drive 85kW/90kW VARIANT (incl. Plug-in))   Model 222.176 with code Z07 (Top protection)   Model 222.964/967/976/980/982/984/985	AR54.10-P-0005LF
		Model 222.004/057/077/104/157/177/178/179/187/188   Model 222.058/059/060/158/159/160   Model 222.083/086/183/186/983/986 with code 810 (Sound system)   Model 222.176 except code Z07 (Top protection)	AR54.10-P-0005LFA
		Model 231	AR54.10-P-0005RK
4	Document displayed residual service life.
		Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292, 293   Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013	AP00.20-P-1100B
	Deactivation
5	Deactivate transport mode using button combination.		AR54.00-P-0001-01A
6	Document deactivation of transport mode.
		Model 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242, 253, 292, 293   Model 166.0, 172, 197.3/4, 204, 207.3/4, 212, 218.3, 246 as of model year 2013	AP00.20-P-1100B
