Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055EW
Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251

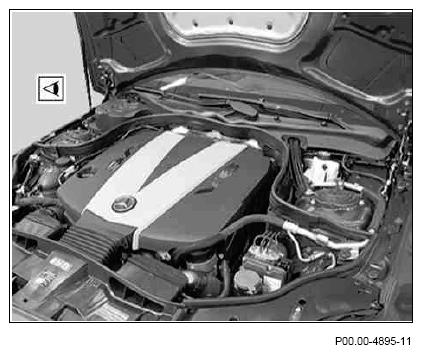

Shown on model 212
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes on evaluating leakages | AH00.00-N-0011-01A | ||
| Preparatory activity | |||
| 1 | Open engine hood and raise to vertical position | Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251 | |
| Model 204.3, 207, 212 Model 204.3, 207, 212 with code U60 (Pedestrian protection - Active hood) Move engine hood to vertical position: Remove left and right clamping lever at top on left and right hinge. |
AR88.40-P-1000EW | ||
| 2 | Remove covering on brake unit | Model 197.3/4 with code B14 (Carbon-fiber engine compartment cover) | |
| Check | |||
| 3 | Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely | Hybrid components (equipment specific), Cooling system, Heater and A/C system, Fuel system, Steering, Brake system. If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 4 | Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely | Hybrid components (equipment specific), Cooling system, Heater and A/C system, Fuel system, Steering, Brake system, Clutch operation, Electrical components. If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check visible systems, components and body panels, lines and hoses in engine compartment on vehicle for damage, routing, leaks, mounting and corrosion | AP00.20-P-0054EW | |
| Finishing activity | |||
| 6 | Close engine hood | Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251 | |
| Model 204.3, 207, 212 Model 204.3, 207, 212 with code U60 (Pedestrian protection - Active hood) Close engine hood: Mount left and right clamping lever onto top on left and right hinge. |
AR88.40-P-1000EW |
