Remove/Install Battery - AR54.10-P-0005W
Model 172
| Remove/install | |||
| Risk of explosion
from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries |
No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||

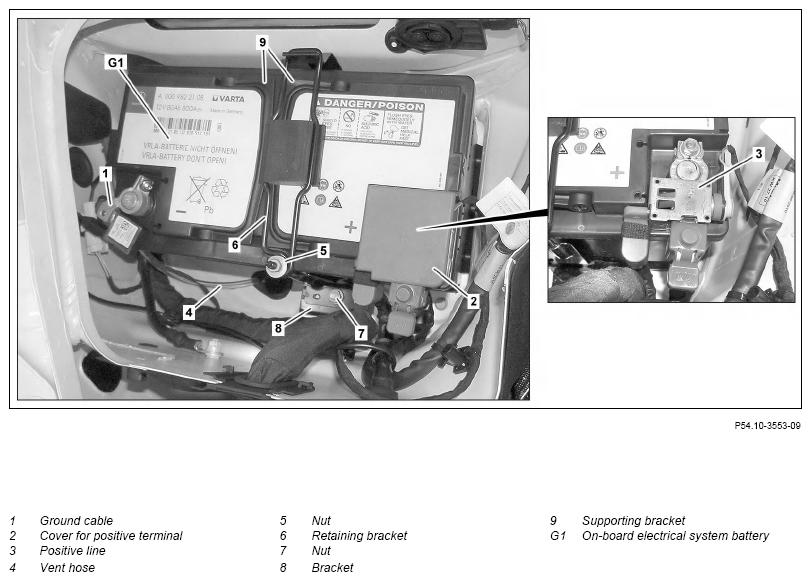

| 1 | Disconnect ground line (1) from on-board electrical system battery (G1) | AR54.10-P-0003W | |
| 2 | Remove positive terminal cover (2) | ||
| 3 | Disconnect positive line (3) from on-board electrical system battery (G1) | Nut, battery line to negative terminal/positive terminal |
*BA54.10-P-1012-01C |
| 4 | Disconnect vent hose (4) from on-board electrical system battery (G1) | Check that the vent hose (4) is routed without kinks. |
|
| 5 | Unscrew nut (5) and take off retaining bracket (6) | ||
| 6 | Unscrew nut (7) and remove bracket (8) | ||
| 7 | Remove on-board electrical system battery (G1) from engine compartment | Use supporting bracket (9). |
|
| 8 | Install in the reverse order |
BATTERY
| Number | Designation | Model 172 | ||
|---|---|---|---|---|
| BA54.10-P-1012-01C | Nut, battery line to negative terminal/positive terminal | M6 | Nm | 6 |
