Remove/Install Front Section Of Vario Roof - AR77.50-P-3100W

Model 172.4

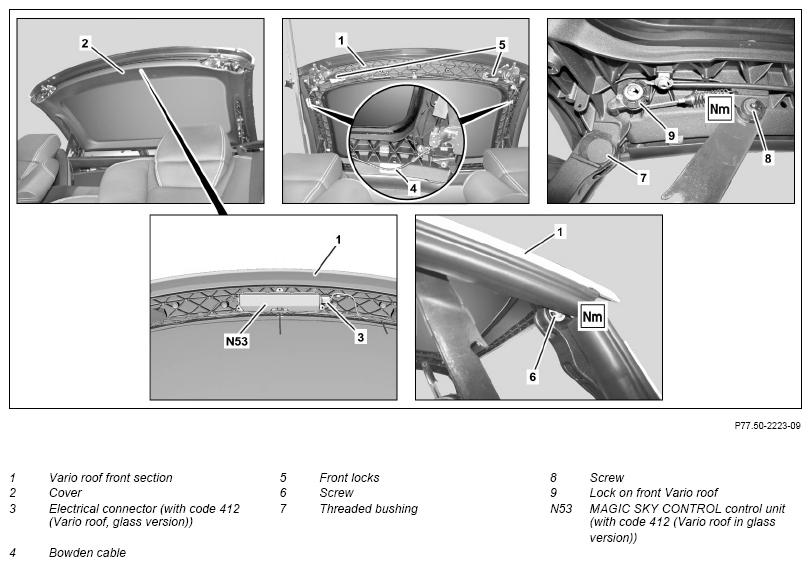

Fig 1: Vario Roof Front Section Components Location - Model 172.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of injury caused by body parts being trapped or crushed when working on a partially open Vario roof (in stop mode) or in its closing area as a result of the Vario roof suddenly collapsing	Secure Vario roof with a suitable special tool.	AS77.50-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on MAGIC SKY CONTROL		AH77.00-P-0001-01A
1	Move the Vario roof into intermediate position and secure it		AR77.50-P-3000-01W
		Support	Fig 3
2	Disconnect battery ground line	In vehicles with code 412 (Vario roof, glass version)	AR54.10-P-0003W
3	Remove trim (2) from Vario roof front section (1)
4	Disconnect electrical connector (3) from MAGIC SKY CONTROL control unit (N53)	In vehicles with code 412 (Vario roof, glass version)
5	Mask connector on electrical connector (3) with warning label	In vehicles with code 412 (Vario roof, glass version) To prevent unauthorized contact with MAGIC SKY CONTROL control unit (N53).
		Warning label	Fig 2
6	Mark the installation positions of electrical and hydraulic lines as well as Bowden cables (4) that have been secured to Vario roof front section (1)
	Notes on Vario roof assembly work		AH77.30-P-0002-01R
7	Expose all electrical and hydraulic lines that have been attached to Vario roof front section (1)
8	Remove left and right locks from front Vario roof (9)		AR77.33-P-3487W
9	Remove both front latches (5) +		AR77.33-P-3400W
		Stow front latches (5) with attached left Vario roof locked limit switch and right Vario roof locked limit switch in the vehicle interior.
10	Unscrew screws (6) on the left and right vehicle sides, and remove them together with the associated threaded bushings (7)	When unscrewing screws (6), push them in the direction of the vehicle center. Otherwise, screws (6) will damage the side seals on Vario roof front section (1). Note the installation positions of threaded bushings (7). Helper required to hold Vario roof front section (1).
		Bolt, C-pillar to Vario roof front section	*BA77.33-P-1016-01A
		Thread locking agent, Loctite 243 (10 ml)	*BR00.45-Z-1133-02A
		Screwdriver bit	Fig 4
11	Unscrew screws (8) on the left and right vehicle sides, remove Vario roof front section (1) with a helper and place it on a suitable stowage tray	There are two bearing bushings on the screw connection points. Secure these against falling down.
		Bolt, main guide to Vario roof front section	*BA77.33-P-1015-01A
		Thread locking agent, Loctite 243 (10 ml)	*BR00.45-Z-1133-02A
12	Install in the reverse order
