Remove/Install Bottom Part Of Oil Pan - AR01.45-P-7555MNL

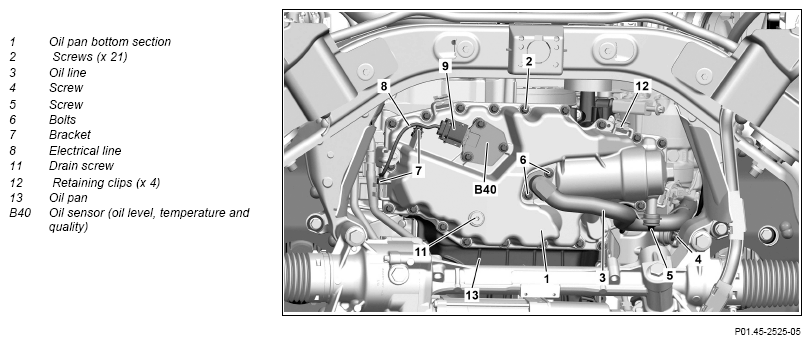

Engine 176 in model 217, 222

except code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

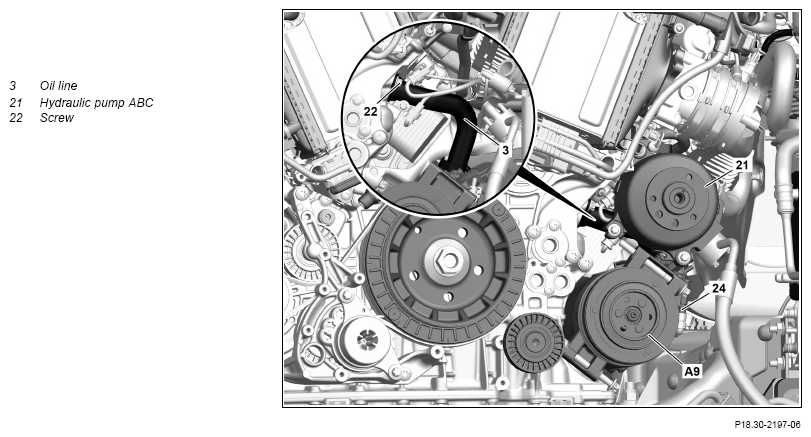

Shown on engine 176 with code 487 (Active Body Control (ABC))

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on fitting hydraulic lines and hoses	Engine 176 in model 217, 222 with code 487 (Active Body Control (ABC)) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AH32.50-P-0001-02A
	Notes on Active Body Control suspension	Engine 176 in model 217, 222 with code 487 (Active Body Control (ABC)) except code M005 (Vehicles with 4MATIC/all-wheel drive)	AH32.50-P-0001-01N
	Remove/install
1	Remove upper engine cover.	: Only install upper engine cover after the leak test.
2	Remove left air filter housing.		AR09.10-P-1151MNL
3.1	Remove hydraulic pump ABC (21).	Engine 176 in model 217, 222 with code 487 (Active Body Control (ABC)) except code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR32.50-P-0030LFM
		: Only install lower engine compartment lining after leak test.
3.2	Remove top guide pulley for the poly-V-belt.	Engine 176 in model 217, 222 except code 487 (MAGIC BODY CONTROL) except code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR13.20-P-0003MNL
		: Only install lower engine compartment lining after leak test.
4	Remove screw (22) from oil line (3) on crankcase.	Bolt, oil line to oil pan/crankcase/engine support	*BA01.45-P-1001-01Y
5	Remove drain screw (11) and collect engine oil in a suitable container.
			AP18.00-P-0101MNL
6	Seal oil drain opening on oil pan bottom section (1) with suitable stop plug.	Record plug	Fig 2
7	Lower rack-and-pinion steering.		AR46.20-P-0600LF
8	Unclip noise encapsulation at oil pan (13) and oil pan bottom section (1) and remove in downward direction.
9	Unclip brackets (7) of the electric line (8) of the oil sensor (oil level, temperature, and quality) (B40) on the oil pan bottom section (1) and place the electric line (8) to one side.		AR18.40-P-5116MNL
10	Remove screw of bracket for automatic transmission oil lines on oil pan bottom section (1).		AR27.55-P-0600MNK
		Screw, oil cooler oil line to oil pan	*BA27.55-P-1003-01D
11	Remove screw (5).	Bolt, oil line to oil pan/crankcase/engine support	*BA01.45-P-1001-01Y
12	Remove screw/bolts (6).	Bolt, oil line to oil pan/crankcase/engine support	*BA01.45-P-1001-01Y
13	Unscrew screw (4).	Bolt, oil line to oil pan/crankcase/engine support	*BA01.45-P-1001-01Y
14	Remove oil line (3) from crankcase.
15	Place oil line (3) to one side.	: Replace sealing rings of oil line (3).
16	Remove oil sensor (oil level, temperature, and quality) (B40) and collect escaping engine oil in a suitable container.	When replacing the oil pan bottom section (1).
			AR18.40-P-5116MNL
		: Replace sealing ring.
17	Remove screws (2), pry off oil pan bottom section (1) and remove, and collect escaping engine oil in a suitable container.	Oil pan bottom section tightening procedure	AR01.45-P-7500-08MNL
	000 588 00 84 00 Heat gun		WS54.00-P-0049B
		Do not drive any tools between oil pan bottom section (1) and oil pan (13) to loosen them. The sealing surface will be damaged otherwise. If necessary, heat the oil pan bottom section (1) in the area of the sealing surfaces using a heat gun. Screw in the screw in the dismantling bore to pry off the oil pan bottom section (1).
		: Apply sealant to oil pan bottom section (1). Observe tightening procedure of screws/bolts (2).
		Screw, oil pan bottom section to oil pan center section/oil pan top section	*BA01.45-P-1006-01Y
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 1
18	Remove molded seal of oil duct between oil pan bottom section (1) and oil pan (13).	: Replace molded seal of the oil duct.
19	Clean sealing surfaces on oil pan bottom section (1) and oil pan (13).		AR01.00-P-0050-01A
		Do not use sharp-edged tools. Sealing surfaces will otherwise be damaged.
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Loctite 7200	*BR00.45-Z-1038-04A
20	Remove retaining clips (12).	When replacing the oil pan bottom section (1).
21	Remove oil filter cover.	When replacing the oil pan bottom section (1).
			AP18.00-P-0101MNL
		: Install oil filter cover with new oil filter and new sealing ring.
22	Install in the reverse order.
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
23	Carry out engine test run and check engine for proper operation and leak tightness.
24	Install lower engine compartment lining.		AR61.20-P-1105LF
25	Install upper engine cover.

Fig 1: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
