Replace Pilot Bushing - AR41.10-P-0250LF

Model 217

Model 222

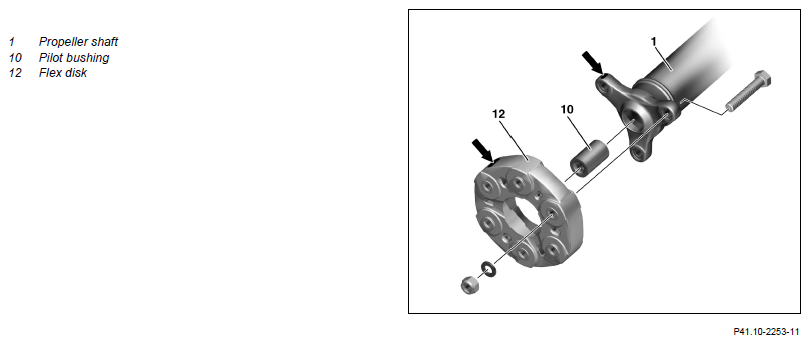

G15370189Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Notice  Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
Notice  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
REMOVING Remove
1 Remove propeller shaft (1).   AR41.10-P-0050LF
2 Check sealing lips on front and rear pilot bushing (10) for wear and damage. If problems exist,
↓
Replace corresponding pilot bushing (10).
3 Separate propeller shaft (1) at slide joint.
4 Remove flex disk (12).   AR41.10-P-0040-01LF
REFER TO SHOP-MADE TOOLS Drift for releasing the fitting sleeves in the flexible couplings   WF58.50-P-4110-01A
    SPECIAL TOOL Counterholder Fig 1
5 Remove pilot bushing (10).   AR41.10-P-0250-02LF
INSTALLING Install
6 Pack cavity of front and rear pilot bushing (10) with grease.
REFER TO CAPACITIES & SPECIFICATIONS Multipurpose grease (NLGI Class 2)   BB00.40-P-0267-00A
7 Press in pilot bushing (10).   AR41.10-P-0250-03LF
    Model 217.364/377/378/379/382/383/384/385/386/477/478/479/482/483 *BE41.10-P-1001-04B
    Model 222.004/020/021/032/034/035/082/083/121/123/132/135/179/182/183/982/983
Model 222.033/057/085/086/133/157/184/185/186/984/985/986
Model 222.067/077/104/120/134/150/162/163/165/167/169/177/178/967/976
Model 222.176 except code Z07 (B7 armoring on special protection version)
Model 222.176 with code Z07 (B7 armoring on special protection version) Press-in dimension "a" from face end of pilot bushing to joint flange
8 Install flex disk (12).   AR41.10-P-0040-01LF
    TORQUE SPECIFICATION Model 217 Flex disk or joint flange at transmission/rear axle differential or propeller shaft *BA41.10-P-1001-01L
    TORQUE SPECIFICATION Model 222 Flexible coupling to rear axle differential or rear propeller shaft *BA41.10-P-1002-01J
    TORQUE SPECIFICATION Model 222 Flexible coupling to transmission or front propeller shaft *BA41.10-P-1001-01J
    SPECIAL TOOL Counterholder Fig 1
9 Connect propeller shaft (1) to slide joint.   AR41.10-P-0050-05LF
REFER TO CAPACITIES & SPECIFICATIONS Long-life grease (NLGI grade 2)   BB00.40-P-0266-02A
10 Install propeller shaft (1).   AR41.10-P-0050LF
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation Model 217.364 Model 217.377/378/477/478
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 23, 3 28, 8
Rear propeller shaft mm 26, 8 36, 2
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation Model 217.379/479 Model 217.382/383/482/483
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 25, 3 25, 3
Rear propeller shaft mm 28, 8 36, 2
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation Model 217.384/385/386 Model 222.004/020/021/032/034/035/082/083/121/123/132/135/179/182/183/982/983 Model 222.176 except code Z07 (B7 armoring on special protection version)
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 24, 8 25, 3
Rear propeller shaft mm 28, 3 28, 8
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation Model 222.033/057/085/086/133/157/184/185/186/984/985/986 Model 222.067/167
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 24, 8 23, 3
Rear propeller shaft mm 28, 3 36, 8
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation Model 222.077/177/178 Model 222.104/120/134/976
Model 222.176 with code Z07 (B7 armoring on special protection version)
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 28, 8 25, 3
Rear propeller shaft mm 36, 2 36, 2
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation Model 222.150 Model 222.162/165
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 24, 8 36, 3
Rear propeller shaft mm 36, 3 28, 3
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation Model 222.163 Model 222.169
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 36, 2 23, 3
Rear propeller shaft mm 36, 2 26, 8
CHECK VALUES FOR PILOT BUSHING ON PROPELLER SHAFT

Number Designation   Model 222.967
BE41.10-P-1001-04B Press-in dimension "a" from face end of pilot bushing to joint flange Front propeller shaft mm 23, 3
Rear propeller shaft mm 34, 8
PROPELLER SHAFT

Number Designation Model 222
BA41.10-P-1001-01J Flexible coupling to transmission or front propeller shaft Self-locking nut   Nm 68
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
PROPELLER SHAFT

Number Designation Model 217
BA41.10-P-1001-01L Flex disk or joint flange at transmission/rear axle differential or propeller shaft Self-locking nut   Nm 68
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
PROPELLER SHAFT

Number Designation Model 222
BA41.10-P-1002-01J Flexible coupling to rear axle differential or rear propeller shaft Self-locking nut   Nm 68
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
Fig 1: Identifying Counterholder (176 589 00 40 00)
G11128638Courtesy of MERCEDES-BENZ USA
