Retrofit Safety Net - AZ68.50-P-0009GQX

Model 166.8

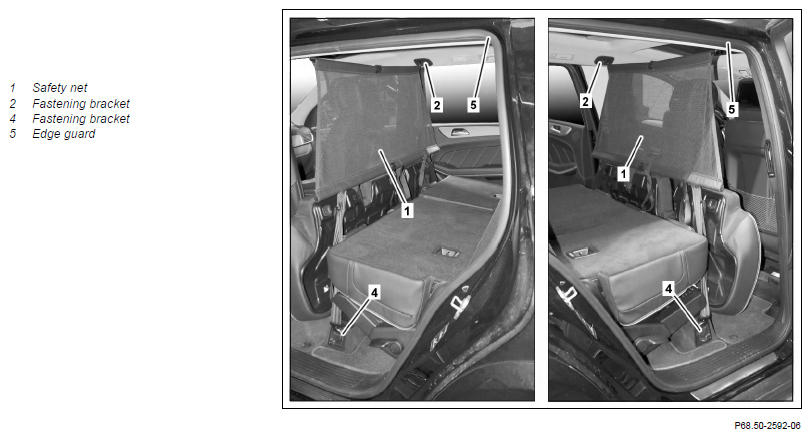

Shown on model 166.8 with installed front safety net (1)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove left and right side window in third seat row
		Model 166.8 with code 848 (Power side vent windows)	AR67.30-P-4001GQB
		Model 166.8 except code 848 (Power side vent windows)	AR67.30-P-4001GQA
2	Fold rear seats of second seat row toward front
	Install
3	Fabricate cover for installing safety net (1)		AZ68.50-P-0009-04GQX
4	Retrofit upper left and right mounting console for rear safety net (1)		AZ68.50-P-0009-03GQX
5	Install left and right side window of third seat row
		Model 166.8 with code 848 (Power side vent windows)	AR67.30-P-4001GQB
		Model 166.8 except code 848 (Power side vent windows)	AR67.30-P-4001GQA
6	Fold back rear seats of second seat row
7	Retrofit upper left and right mounting console (2) for front safety net (1)		AZ68.50-P-0009-02GQX
8	Retrofit upper left and right mounting console (4) for front safety net (1)		AZ68.50-P-0009-01GQX
		Screw/bolt, tie-down eye to body/trunk floor	*BA68.50-P-1002-03F
9	Fold back seat cushion of second seat row toward front	If safety net (1) is installed at front.
10.1	Fold back backrest of second seat row toward front	If safety net (1) is installed at front.
10.2	Fold over rear seats of third seat row toward front	If rear safety net (1) is installed at front.
		Ensure that the rear seats of the third seat row are locked in their end position. If the rear seats of the third seat row are pressed down when the rear safety net (1) is tensioned, the seat adjustment can be damaged.
		Explain customer procedure for tensioning rear safety net (1) when submitting vehicle.
11.1	Hook front safety net (1) into mounting consoles (2, 4) and tension	If safety net (1) is installed at front.
11.2	Hook rear safety net (1) into rear upper mounting consoles and tie-down eyes on backrest of third seat row and tension	If rear safety net (1) is installed at front. Do not move rear seats of third row when safety net (1) is installed. Moving the rear seats when the safety net (1) is tensioning can damage the seat adjustment Explain customer procedure for tensioning rear safety net (1) when submitting vehicle.
	Update Vehicle Documentation (VeDoc)
12	Attach note for safety net retrofitted according to AZ68.50-P-0009GQX under field organization texts to design groups 68 and 69
