Remove/Install Side Window Of 3rd Seat Row - AR67.30-P-4001GQA

MODEL 166.8

without CODE 848 (Power side vent windows)

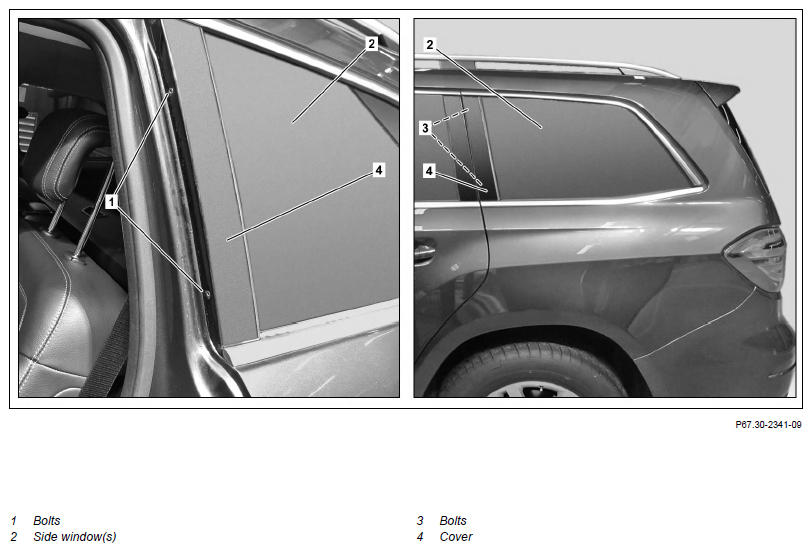

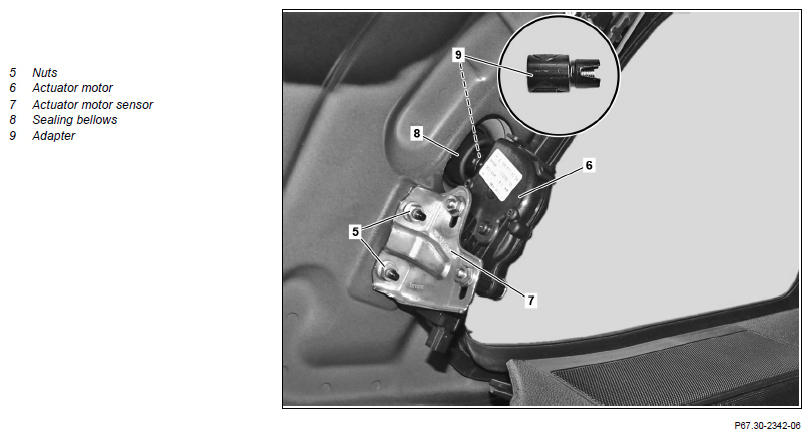

Fig 1: Side Window Of 3rd Seat Row Components Location - Model 166.8 Without Code 848

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unscrew screws (1) from the cover (4) and remove cover (4)
2	Remove moldings from D-pillar		AR68.30-P-4495GQX
3	Unscrew nuts (5) from actuator motor sensor (7)	As of production date 02/2014 the actuator motor (6) and the actuator motor sensor (7) are replaced by a bracket.
4	Turn actuator motor sensor (7) 90° toward front and unhook from adapter (9)
5	Remove actuator motor sensor (7)
6	Unscrew bolt in adapter (9) and remove adapter (9)	If seal bellows (8) is damaged, replace seal bellows (8). Ensure that seal bellows (8) is seated correctly.
7	Remove screws/bolts (3)	Use new bolts (3).
		Bolt for side window hinge to C-pillar	*BA67.30-P-1001-01A
8	Remove side window (2)
9	Install in the reverse order

SIDE WINDOWS

Number	Designation		MODEL 166.8
BA67.30-P-1001-01A	Bolt for side window hinge to C-pillar	Nm	10
