Retrofit Mounting Console For Upper Rear Safety Net - AZ68.50-P-0009-03GQX

Model 166.8

The following work procedure is described on the right side of the vehicle. Install rear upper mounting console on left side of vehicle in same manner. Assemble in rear of rear grab handle.

1. Carefully pull headliner (10) out of edge guard (5).

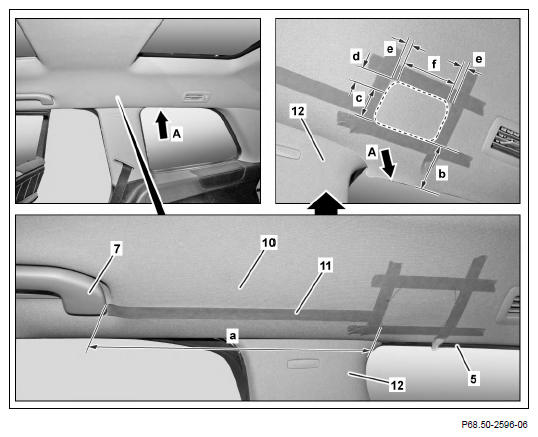

2. Glue masking tape (11) to headliner (10) according to dimensions (a to f).

   Dimensions  :

   a = 333 mm

   b = 111 mm

   C= dia. 40 mm

   D = 20 mm

   e = 8 mm

   f =80 mm

   Measure dimension (b) in marked area (arrow A) from bottom edge of headliner (10) along course of contour. Measuring in the area of the C-pillar paneling (12) and the corresponding radius on the headliner (10) leads to measurement errors. Measure dimension (d) starting at rear grab handle (7).

3. Mark cutting line (broken line) according to dimensions (a to f) as shown.

   Dimensions  :

   a = 333 mm

   b = 111 mm

   C= dia. 40 mm

   D = 20 mm

   e = 8 mm

   f =80 mm

   Provide corners with a 5 mm radius.

   Courtesy of MERCEDES-BENZ USA

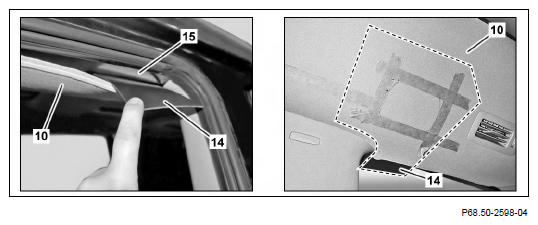

4. Pull headliner (10) downward and push cutting protection (14) between windowbag (15) and headliner (10).

   Carefully push in cutting protection (14).

   Otherwise the windowbag (15) can be damaged.

5. Position cutting protection (14) so that the area of the headliner (10) to be cut out is completely covered.

   Courtesy of MERCEDES-BENZ USA

   Ensure that the cutting protection (14) is positioned correctly.

   Otherwise the windowbag (15) can be damaged when cutting out the headliner (10).

6. Carefully cut headliner (10) along previously marked cutting line with cutter.

   Cut carefully and ensure that the cutting protection (14) is positioned correctly.

   Otherwise the windowbag (15) can be damaged.

7. Remove piece cut out from headliner (10).
8. Pull out cutting protection (14).
9. Remove masking tape (11) from headliner (10).
10. Clean headliner (10).

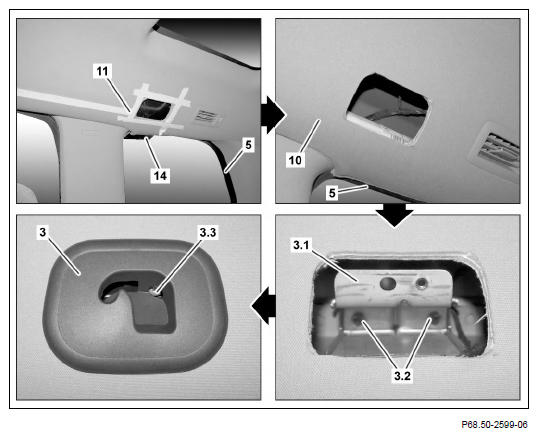

11. Position headliner (10) in area of C-pillar paneling and edge guard (5).
12. Install carrier (3.1) on threaded pin on headliner and tighten with nuts (3.2) included in package.

    Observe installation position of carrier (3.1). The carriers (3.1) for front, rear, left and right are different.

13. Position mounting console (3) and tighten with bolt (3.3).
